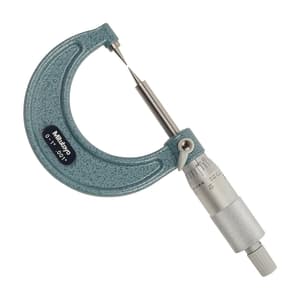

Mitutoyo 0 - 1 inch / 15 Degree Point Micrometer with Carbide Tip, 112-189
Roll over the image to zoom in
Key Features
- Product Type: Point Micrometers
- Weight: 205 g
- Range (Inches): 0 - 1 inch
- Point: 15 Degree
- Graduation (inch): 0.001 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,382 (Incl. of all taxes)
₹8,798 + ₹1,584 GST (18%)
MRP was MRP ₹11,730
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Package Content:
- 1x Point Micrometer
- 1x Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (Inches) | 0 - 1 inch |
|---|---|
| Point | 15 Degree |
| Graduation (inch) | 0.001 inch |
| Max. Permissible Error JMPE (inch) | ±0.00015 inch |
| Measuring Point Radius | 0.3 mm |
| Measuring Force | 3 - 8 |
| Measuring Spindle | With spindle lock, Ø6.35 mm, spindle pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve satin chrome finish, ø18 mm |
