Mitutoyo 0 - 25 mm / 30 Degree Digital Point Micrometer with Carbide Tip, 342-261-30
Roll over the image to zoom in
Key Features
- Product Type: Point Micrometers
- Weight: 330 g
- Range (mm): 0 - 25 mm
- Point: 15 Degree
- Resolution (mm): 0.001 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,922 (Incl. of all taxes)
₹21,968 + ₹3,954 GST (18%)
MRP was MRP ₹29,290
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Digimatic Point Micrometer features a pointed anvil and spindle.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Measures through diameters, such as drill web diameters.
- The measuring points (carbide tipped) have approximately 0.3 mm radius.
- Equipped with a Ratchet Stop for constant measuring force.
Functions:
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm

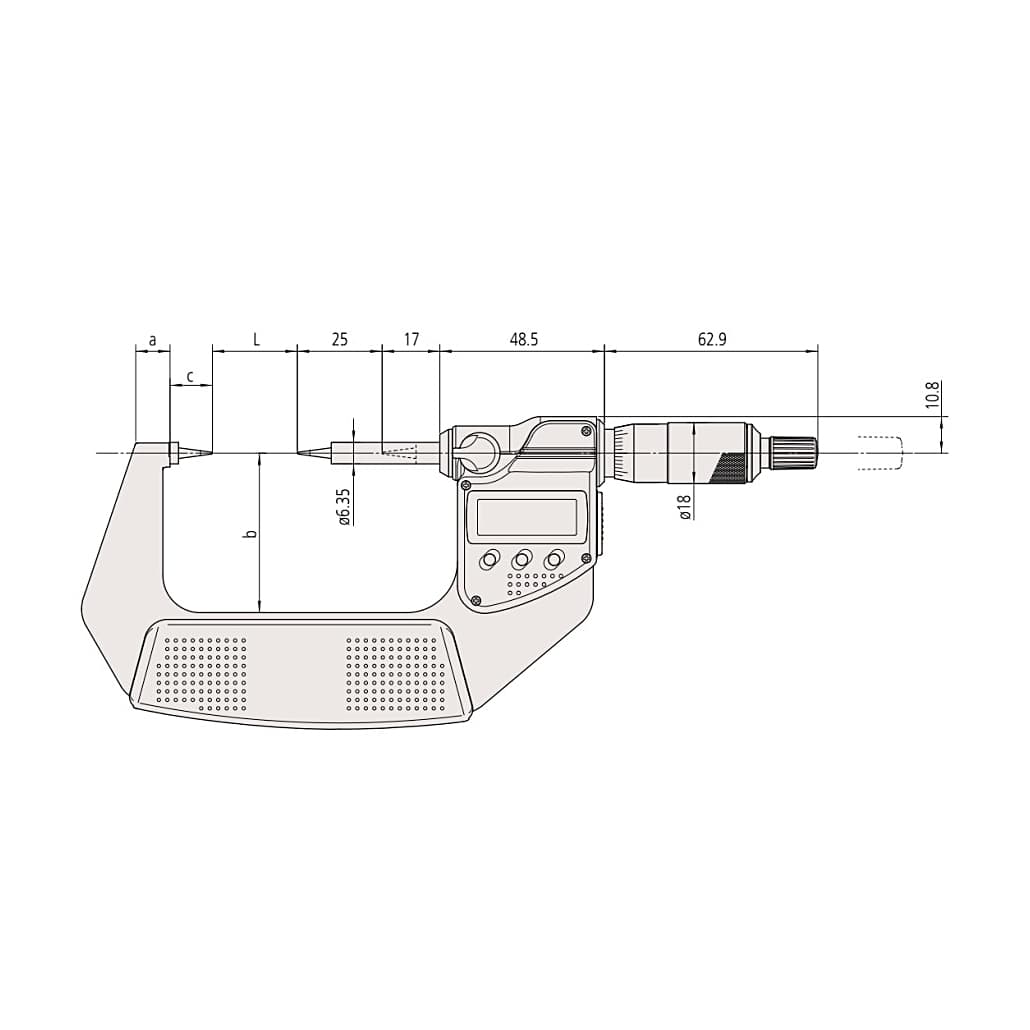

Dimensions Measurement (mm):
 |
|
Package Content:
- 1x Digital Point Micrometer
- 1x Spanner
- 1x SR44 Battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Type of Product | With Carbide Tips |
| Point | 15 Degree |
| Resolution (mm) | 0.001 mm |
| Max. Permissible Error JMPE (μm) | ±2 μm |
| Measuring Point Radius | 0.3 mm |
| Measuring Force | 3 - 8 |
| Measuring Spindle | With spindle lock, Ø6.35 mm, spindle pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve satin chrome finish, ø18 mm |
| Power Supply | 1x SR44 Battery |
| Display | LCD (Character Height 7.5 mm) |
| IP Rating | IP65 |
