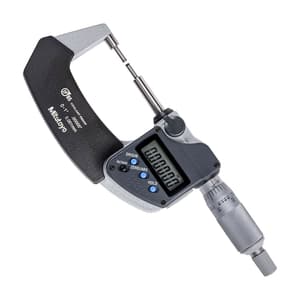

Mitutoyo 0 - 1 inch Digital Spline Micrometer (Type A), 331-351-30

Shop all Mitutoyo

SKU: ME.MI.SP.00041

Model: 331-351-30

Roll over the image to zoom in


Key Features

  • Product Type: Spline Micrometer
  • Weight: 330 g
  • Range (Inches): 0 - 1 inch
  • Resolution: 0,00005 inch / 0,001 mm
  • Type: A
See all product information

ToolBuy Benefits

₹28,957 (Incl. of all taxes)

₹24,540 + ₹4,417 GST (18%)

MRP was MRP ₹32,720

Save 25%



1 Business Days

1

90173010

Download Product LeafletNot available
Download Mitutoyo CatalogueNot available

Highlights

This Digital Spline Micrometer makes it easy for you to measure grooves and shaped parts.


Features:

  • Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.


Functions:

  • ABS
  • Auto Power OFF after 20 min. non use
  • Function lock
  • HOLD
  • Low-voltage alarm

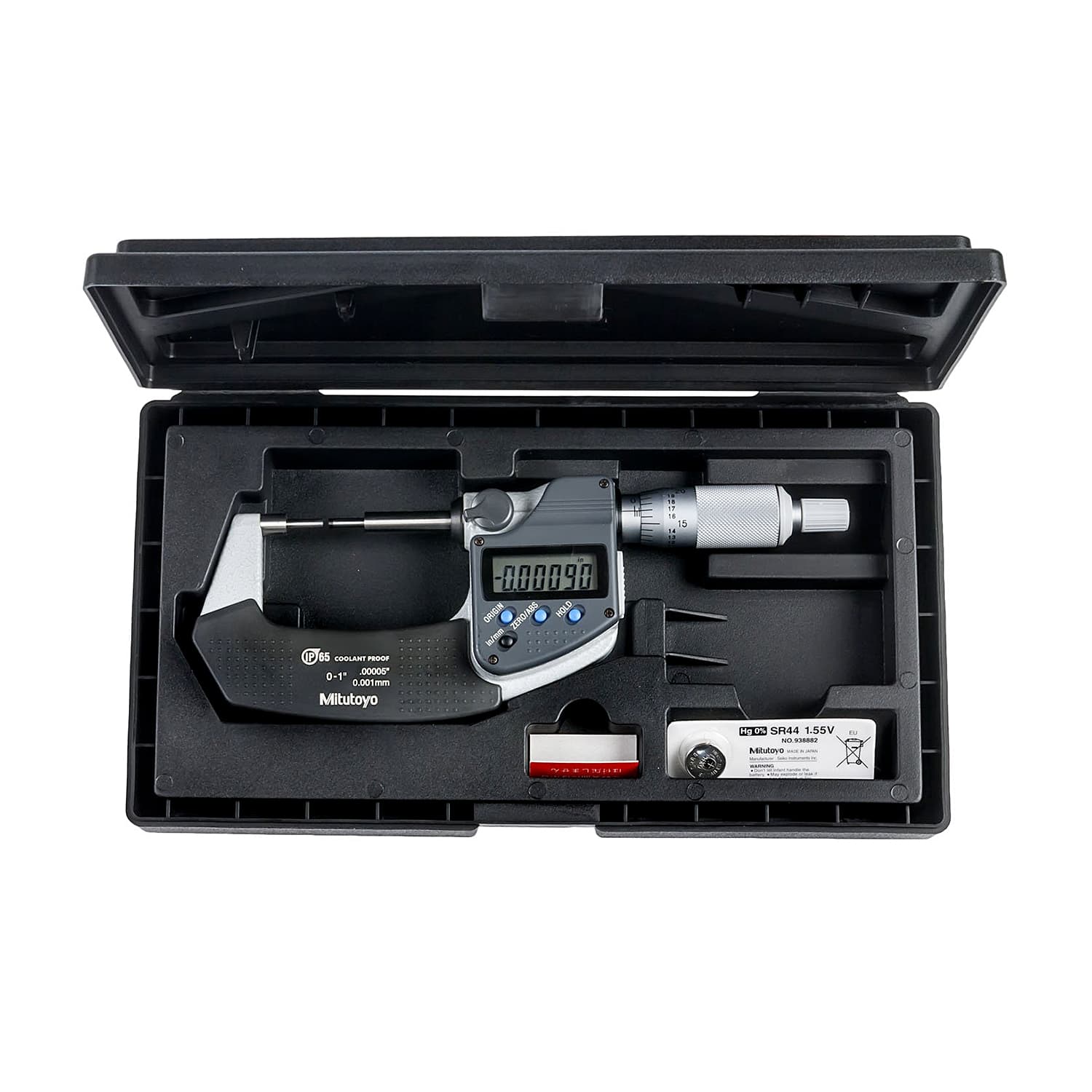

Package Content:

  • 1x Digital Spline Micrometer
  • 1x Spanner,
  • 1x Battery (SR44)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Mitutoyo 0 - 1 inch Digital Spline Micrometer (Type A), 331-351-30
Range (Inches)0 - 1 inch
Resolution0,00005 inch / 0,001 mm
Max. Permissible Error JMPE (inch)±0.0001 inch
Flatness (inch)0.000012 inch
Parallelism (inch)0.00008 inch
TypeA
Measuring Face Size (mm)3 mm
Measuring Force5 - 10
Measuring SpindleWith Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm
Scale FinishingThimble & sleeve satin chrome finish, ø18 mm
DisplayLCD (Character Height 7.5 mm)
Power Supply1x SR44 Battery
IP RatingIP65
