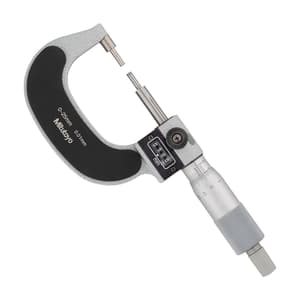

Mitutoyo 0 - 25 mm Mechanical Counter Spline Micrometer (Type A), 131-115
Roll over the image to zoom in
Key Features
- Product Type: Spline Micrometer
- Weight: 260 g
- Range (mm): 0 - 25 mm
- Graduation (mm): 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,240 (Incl. of all taxes)
₹12,915 + ₹2,325 GST (18%)
MRP was MRP ₹17,220
Save 25%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- The anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
- Equipped with a Ratchet Stop for constant measuring force.
- The measuring surface has a cemented carbide tip.
- With a constant pressure device.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±3μm |
| Flatness (μm) | 0.3 μm |
| Parallelism (μm) | 2 μm |
| Type | A |
| Measuring Force | 5 - 10 |
| Spindle Screw Pitch (mm) | 0.5 mm |
| Operating Temperature (°C) | 5°C - 40°C |
| Storage Temperature (°C) | -10°C ~ 60°C |
