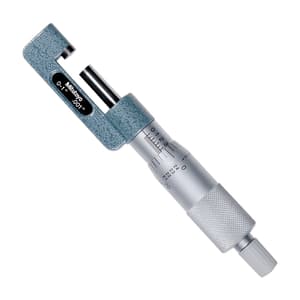

Mitutoyo 0 - 1 inch Hub Micrometer, 147-351
Roll over the image to zoom in
Key Features
- Product Type: Hub Micrometer
- Weight: 135 g
- Range (Inches): 0 - 1 inch
- h1 (mm): 6 mm
- h2 (mm): 8.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,329 (Incl. of all taxes)
₹10,448 + ₹1,881 GST (18%)
MRP was MRP ₹13,930
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Measure hub thickness and shoulder inside a bore
- With a ratchet stop for constant force

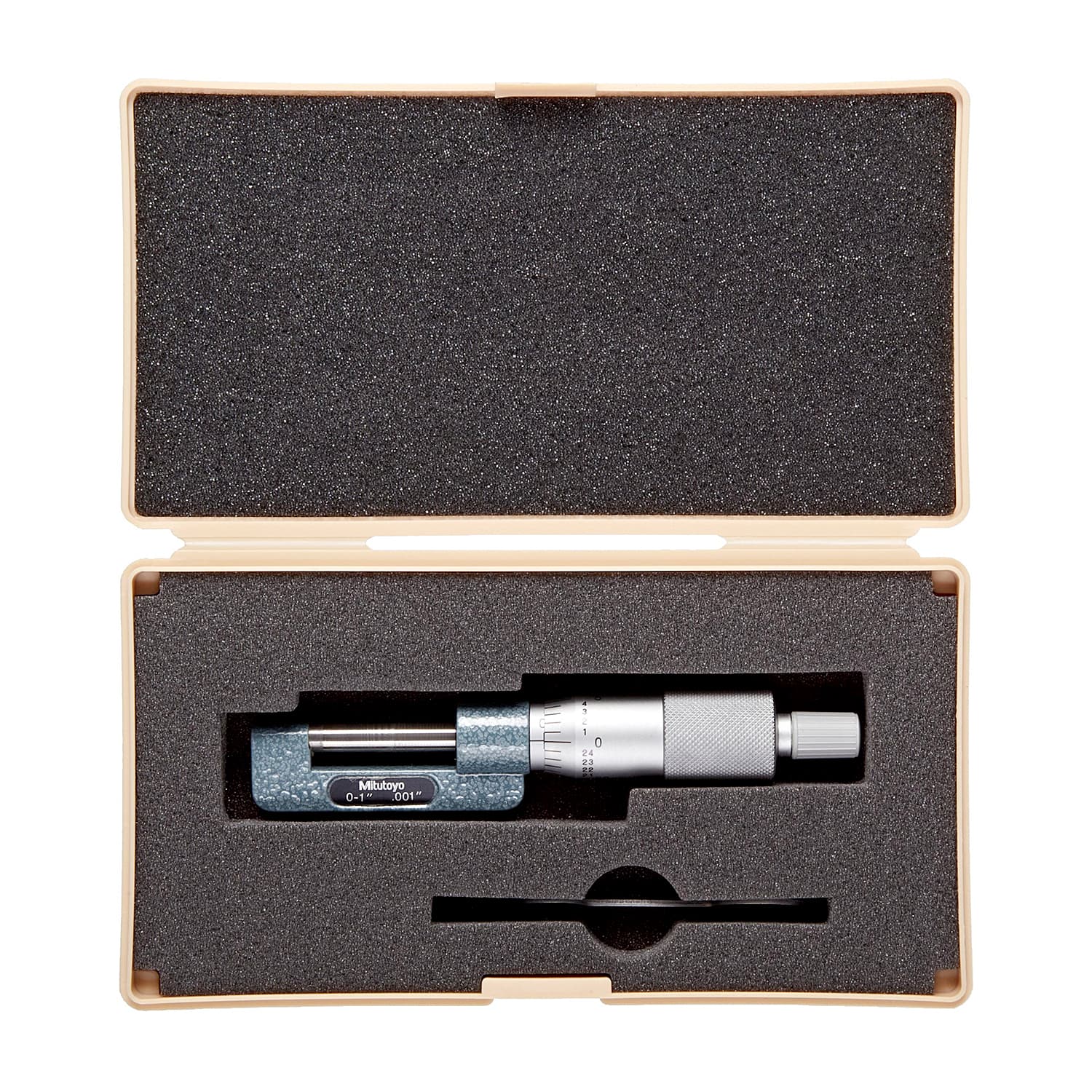

- Supplied in a fitted plastic case.
Package Content:
- Hub Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0 - 1 inch |
|---|---|
| h1 (mm) | 6 mm |
| h2 (mm) | 8.5 mm |
| h3 (mm) | 13.5 mm |
| H (mm) | 17.5 mm |
| Accuracy | ±0.0001 inch |
| Graduation (inch) | 0.001 inch |
| Parallelism | 0.00012 inch |
| Measuring Force | 5 - 10N |
| Measuring Spindle | Ø6.35 mm, Spindle Pitch 0.5 mm |
| Measuring Face | Carbide-tipped, Micro-lap Finish |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
