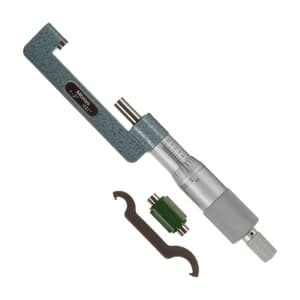

Mitutoyo 1 - 2 inch Hub Micrometer, 147-352
Roll over the image to zoom in
Key Features
- Product Type: Hub Micrometer
- Weight: 150 g
- Range (Inches): 1/2 Inch
- h1 (mm): 6.5 mm
- h2 (mm): 11 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,347 (Incl. of all taxes)
₹13,853 + ₹2,494 GST (18%)
MRP was MRP ₹18,470
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights

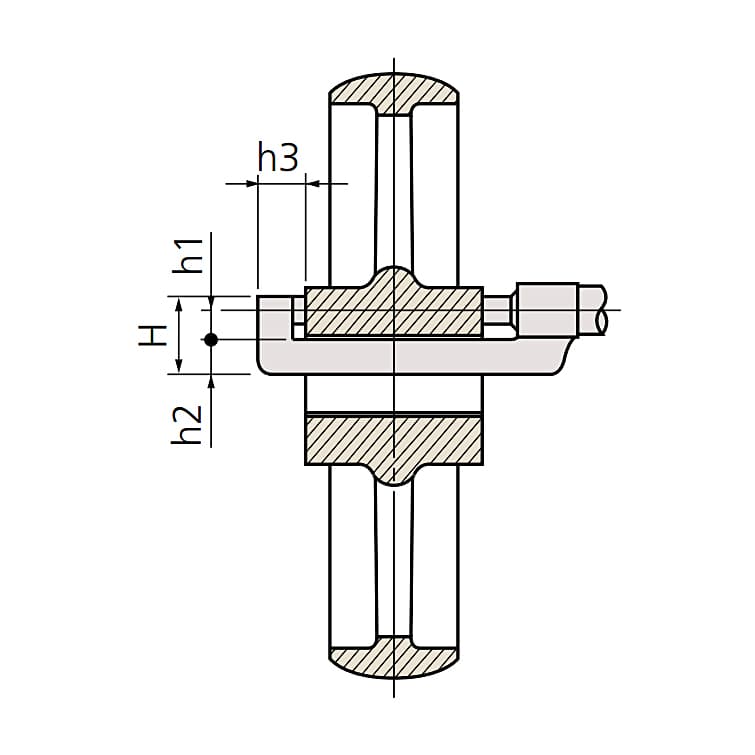

- Measure hub thickness and shoulder inside a bore
- With a ratchet stop for constant force

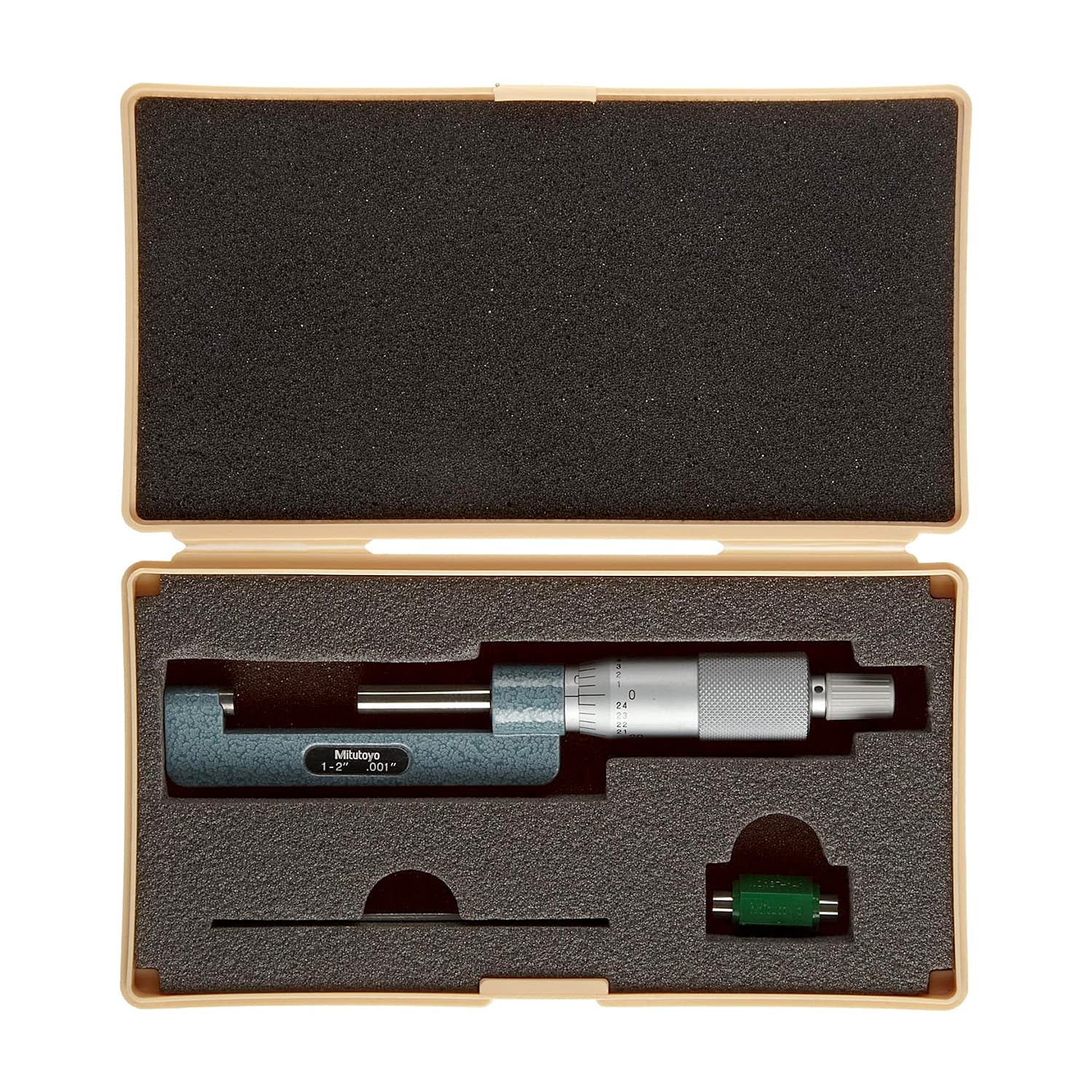

- Supplied in a fitted plastic case.
Package Content:
- Hub Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 1/2 Inch |
|---|---|
| h1 (mm) | 6.5 mm |
| h2 (mm) | 11 mm |
| h3 (mm) | 14 mm |
| H (mm) | 20.5 mm |
| Accuracy | ±0.0001 inch |
| Graduation (inch) | 0.001 inch |
| Parallelism | 0.00012 inch |
| Measuring Force | 5 - 10N |
| Measuring Spindle | Ø6.35 mm, Spindle Pitch 0.5 mm |
| Measuring Face | Carbide-tipped, Micro-lap Finish |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
