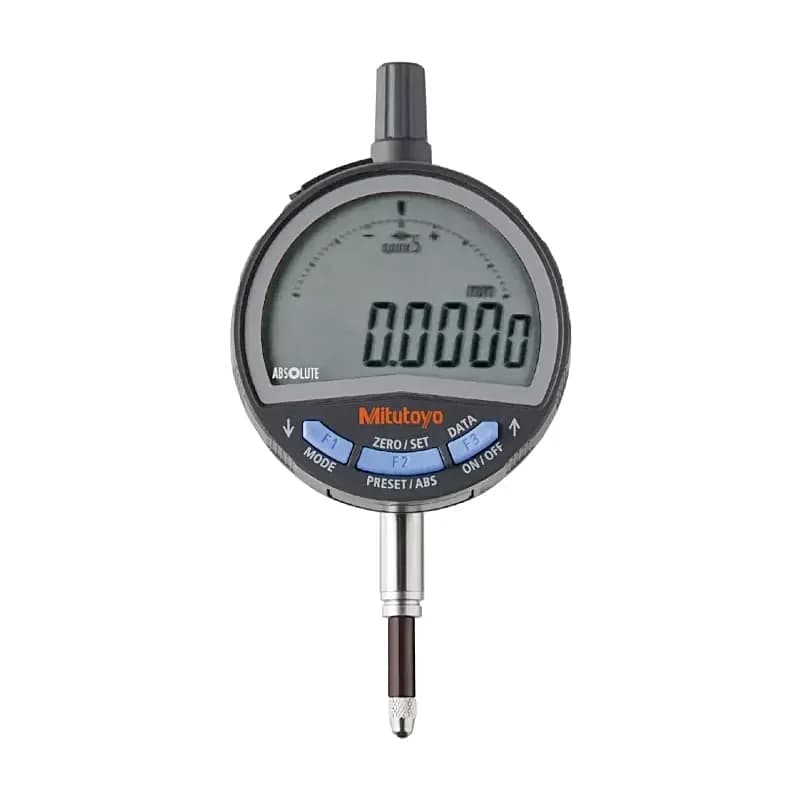

Mitutoyo 0 - 12.7 mm Absolute Digimatic Indicator with Flat Back Plate (ID-C Series), 543-300B-10

This indicator is the MAX/MIN/RANGE value holding function model

Features:

• The MAX/MIN/RANGE (run-out value) can be measured.
• A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably.
• Easy indicator setup via a setup menu.
• Analogue bar graph in the display (12 different scales switchable).
• GO/±NG tolerance judgement function.
• This indicator enables the use of a calculation function for the measured value Ax.
• Coefficient A is freely definable and x = displacement of the plunger.
• A USB interface box can be used to set up the indicator from PC via dedicated software.

Functions:

• ABS / INC (INC ZERO)
• ABS/INC switchable
• Analog bar resolution switchable
• Calculation function (with formula)
• Counting direction switchable
• DATA/HOLD
• Digimatic data output
• Digital step switchable
• Fast measurement mode
• Function lock
• GO/±NG judgement
• Low voltage alarm
• MAX/MIN/RANGE
• ON/OFF
• PRESET 3x
• Peak Hold

Alarm:

• Low voltage
• ABS composition error
• Overflow error
• Setting error

Package Content:

• Digital Indicator
• CR2032 battery
• certificate of inspection
