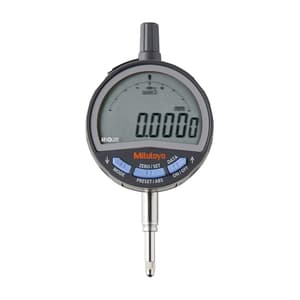

Mitutoyo 0 - 12.7 mm High Performance ABS Digital Indicator - ID-C Series (Lug Back Plate), 543-700
Roll over the image to zoom in
Key Features
- Product Type: Digital Indicators
- Weight: 175 g
- Range (mm): 0 - 12.7 mm
- H MPE (Hysteresis): 0.002 mm
- Power Supply: 1 Battery CR2032
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹23,533 (Incl. of all taxes)
₹19,943 + ₹3,590 GST (18%)
MRP was MRP ₹26,590
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Model with 0,5 µm digital step is available.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
Package Contents:
- CR-2032 battery
- Battery lid opener
- Weight (low force models)
- Certificate of inspection
- Spindle lifting handle (25,4 and 50,8 mm models)
Functions:
| DATA/HOLD: | Yes |
| Digimatic data output: | Yes |
| Digimatic S1 Bidirectional interface: | Yes |
| ON/OFF: | Yes |
| Analog bar resolution switchable: | Yes |
| Function lock: | Yes |
| GO/±NG judgement: | Yes |
| ABS / INC (INC ZERO): | Yes |
| Analog bar resolution selection: | Yes |
| Auto Power OFF setting: | Yes |
| Calculation function (with formula): | Yes |
| Customizing keys: | Yes |
| Counting direction switchable: | Yes |
| Inch/Metric switchable: | No |
| Calibration warning function: | Yes |
| Digital step switchable: | Yes |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 12.7 mm |
|---|---|
| Digital Step | 0.0005 mm / 0.001 mm / 0.01 mm |
| Digital / Analog | Digital |
| Inch-Metric | Metric |
| H MPE (Hysteresis) | 0.002 mm |
| R MPE (Repeatability) | 0.002 mm |
| Stem | 8 mm |
| Protection | IP42 |
| Max. Response Speed | Unlimited |
| Type | EN ISO Standard |
| Power Supply | 1 Battery CR2032 |
| Measuring Force MPL | (Less Than Or Equal) 1.5 N |
| Measurement Frequency (Max / Min / Range) | 50 Times/s |
| Max. Permissible Error E MPE (Total Range) | 0.003 mm |
| Contact Point | Carbide Ball, Thread: M2.5x0.45 |
| Battery Life | Approx. 2700 Hours (Continuous Use) |
| Display | LCD, Character Height 11 mm, 330° Rotatable |
| Alarm | Low Voltage, Setting Errors, Sensor Error, Display Overflow A.s.o. |
| Digital Scale | Electrostatic Capacitance Type Absolute Linear Encoder |
