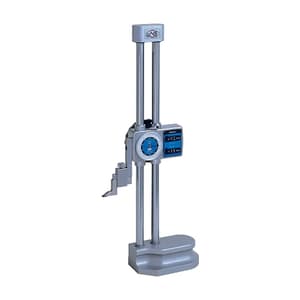

Mitutoyo 0 - 12 inch Dial Height Gauge with Digital Counter, 192-150
Roll over the image to zoom in
Key Features
- Product Type: Height Gauge
- Weight: 4.2 kg
- Range (Inches): 0 - 12 inch
- Digital step: 0.01 mm / 0.001"
- Graduation: 0.001"
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹42,038 (Incl. of all taxes)
₹35,625 + ₹6,413 GST (18%)
MRP was MRP ₹47,500
Save 25%
7 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights

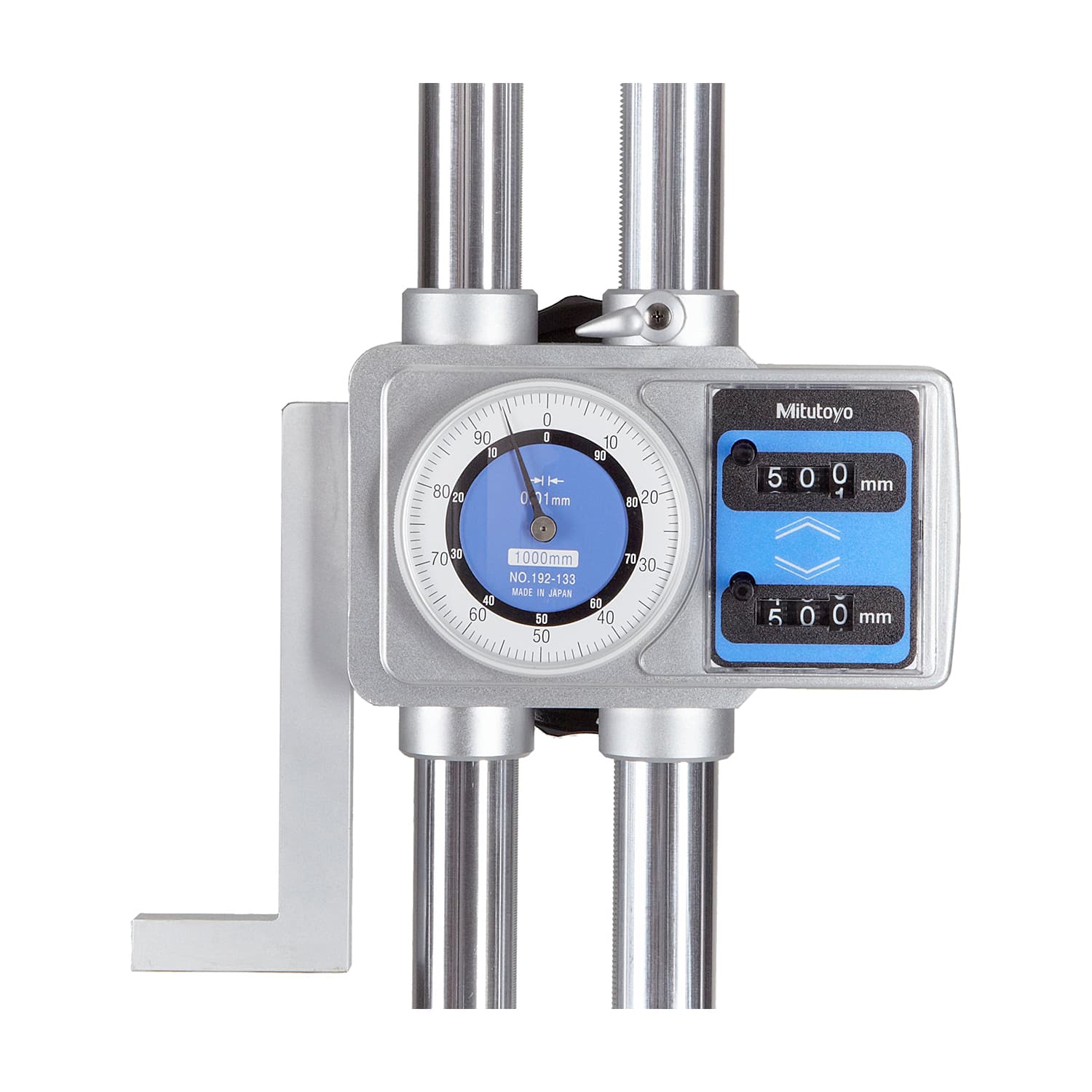

A Mitutoyo dial/mechanical-digit-counter height gauge, twin column design. Two separate counters provide independently settable up/down measurement capability, with the dial gauge indicating the last decimal fractions.
Features:
- Easy and error-free reading with both up-down digital counters as well as a dial.
- Provided with a feed wheel for easy coarse feeding.
- Carbide-tipped scriber is provided.
- The counters and dial can be re-zeroed at any scriber position.
Package Content:
- Dial Height Gauge

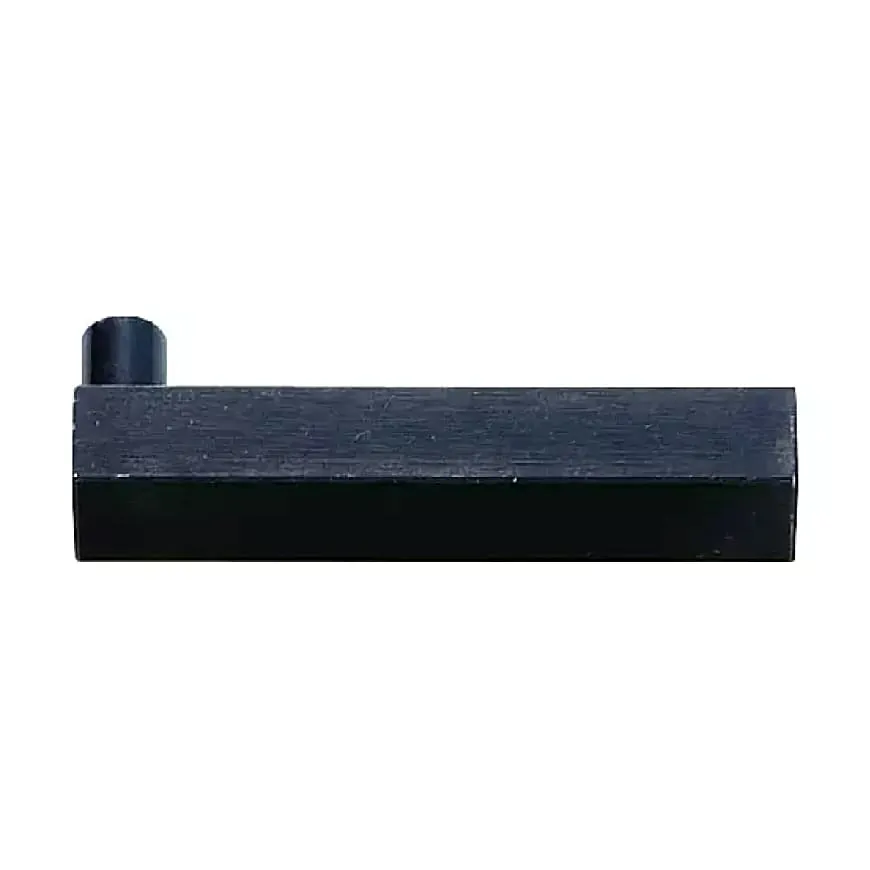

- Carbide tipped scriber

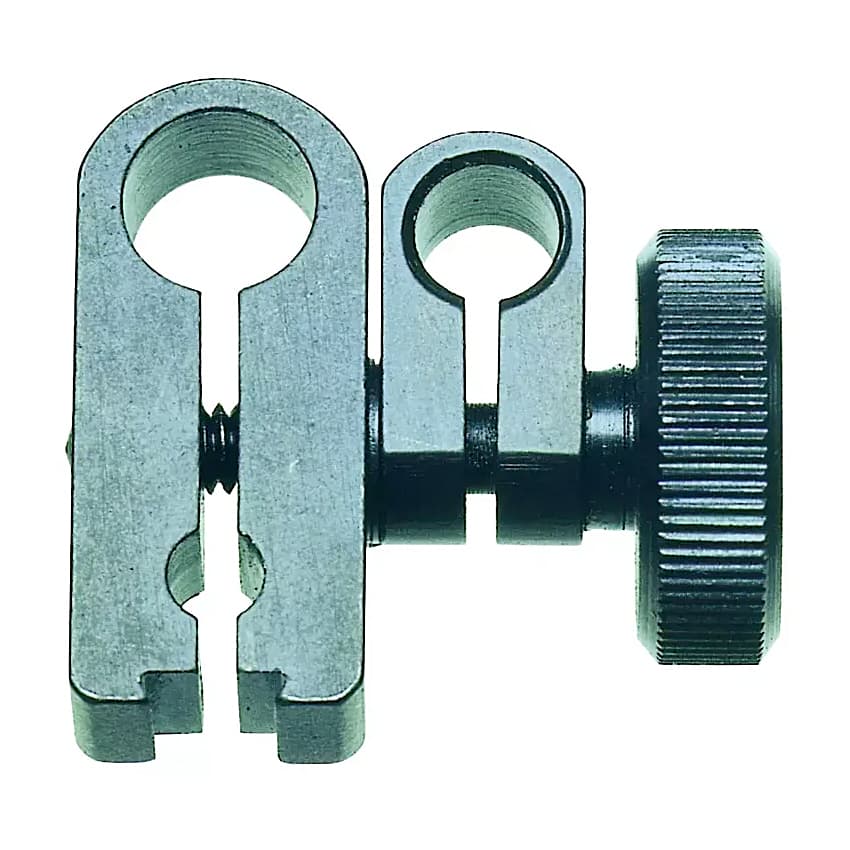

- Scriber clamp
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Type Height Gauge |
|---|---|
| Range (Inches) | 0 - 12 inch |
| Digital step | 0.01 mm / 0.001" |
| Graduation | 0.001" |
| Maximum Permissible Error J MPE | ±0.04 mm / 0.0015" |
| Max. Permissible Error E MPE | ±0.0015" / ±0.03 mm |

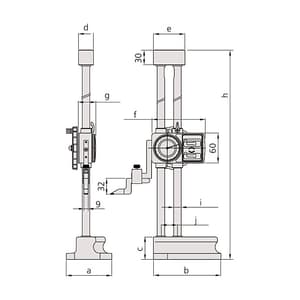

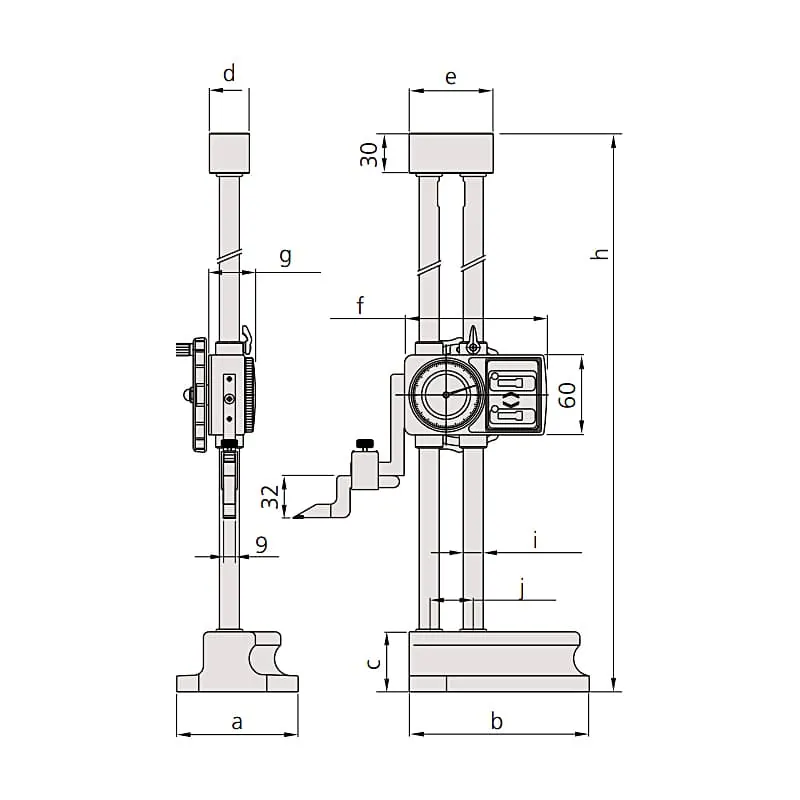

| Sizes (a x b x c x d x e x f x g x h x i x j) | 91 x 135 x 45 x 30 x 63 x 106.5 x 35.5 x 470 x ø15 x 33 mm |
