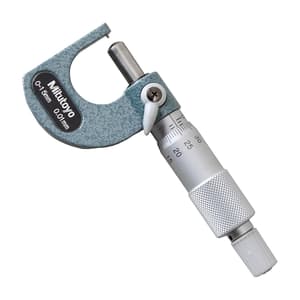

Mitutoyo 0 - 15 mm Spherical Anvil Tube Micrometer (Carbide-tipped Spindle), 115-201
Roll over the image to zoom in
Key Features
- Product Type: Tube Micrometer
- Range (mm): 0 - 15 mm
- Graduation (mm): 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,230 (Incl. of all taxes)
₹5,280 + ₹950 GST (18%)
MRP was MRP ₹7,040
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Carbide-tipped spindle and anvil ensure durability and wear resistance
- Ratchet-stop mechanism provides uniform measuring pressure for accuracy
- Specially designed for checking wall thickness across various tubing types
Package Content:
- Tube Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 15 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JPME) | ±3μm |
| Diameter (mm) | Ø5.5 mm |
| Measuring Force | 3 - 8 |
| Anvil / Spindle | Spherical D=1 mm & R=1 mm/spherical R=4 mm spindle |
| Measuring Spindle | With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
