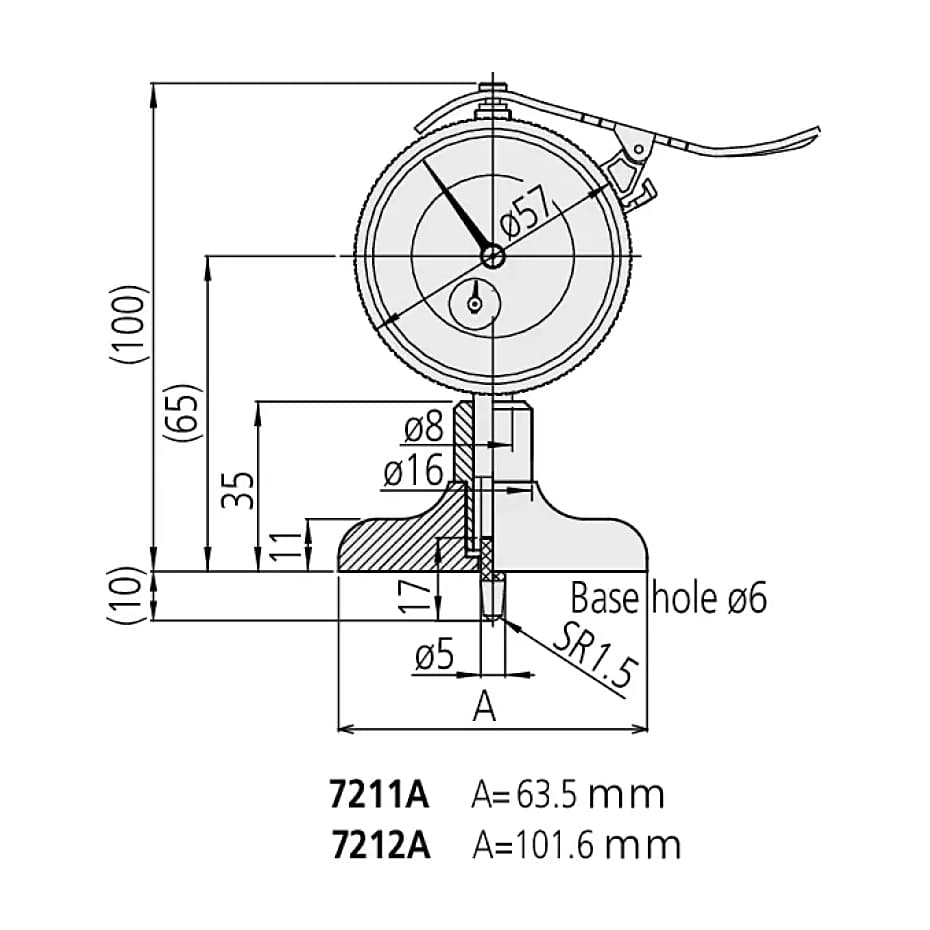

Mitutoyo 0 - 200 mm Dial Depth Gauge with Ball Point Contact Element (63.5 mm Base), 7211A
Roll over the image to zoom in
Key Features
- Product Type: Depth Gauge
- Weight: 260 g
- Range (mm): 0 - 200 mm
- Accuracy: ±15μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,302 (Incl. of all taxes)
₹10,425 + ₹1,877 GST (18%)
MRP was MRP ₹13,900
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- This rectangular base dial indicator depth gauge.
- It has a hardened, precision ground and micro-lapped reference face on its base.
Package Content:
- Dial Depth Gauge
- Spindle Lifting Lever
- Carbide Tipped Ball Point Contact Element (21JAA224)
- 5x Extension Rods (10, 20, 2x 30, 100 mm)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Dial Depth Gauge |
|---|---|
| Range (mm) | 0 - 200 mm |
| Accuracy | ±15μm |
| Base Flatness | 5 mm |
| Graduation | 0.01 mm |
| Probe Tip | Ball, R = 1.5 mm (No. 21JAA224) |
| Stroke | 10 |
| Base Size | 63.5 mm |
