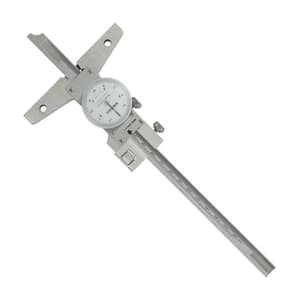

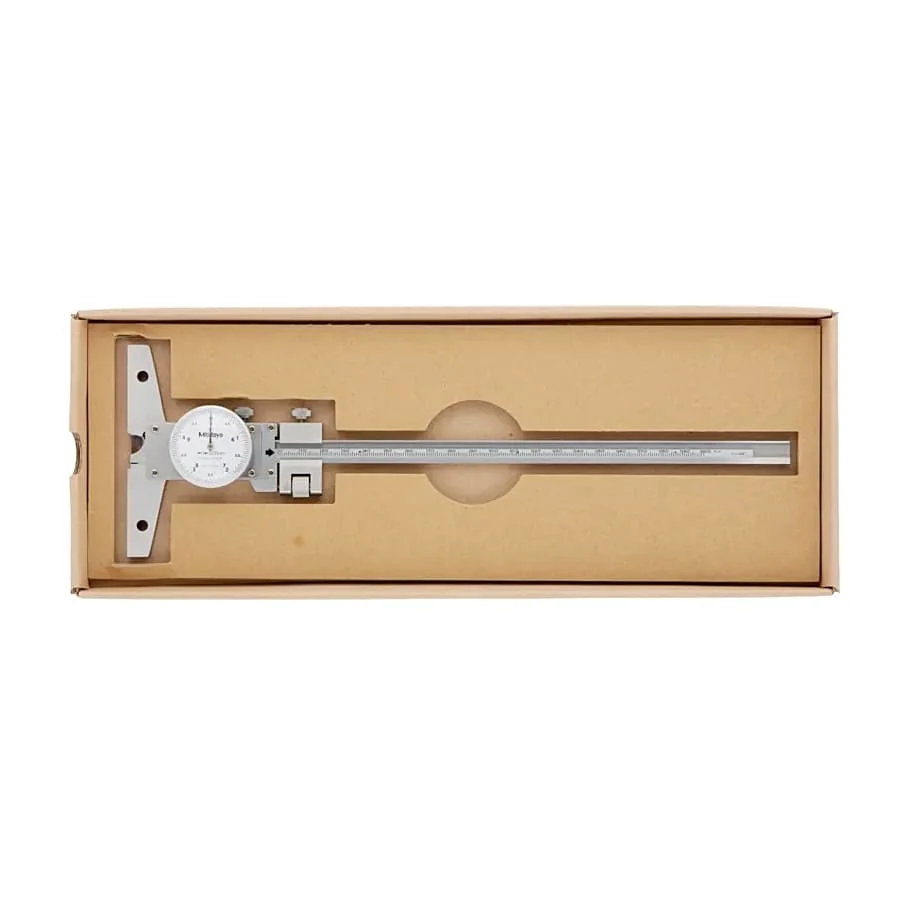

Mitutoyo 0 - 200 mm Dial Depth Gauge with Fine Adjustment, 527-302-50
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,196 (Incl. of all taxes)
₹17,963 + ₹3,233 GST (18%)
MRP was MRP ₹23,950
Save 25%
7 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- A Mitutoyo dial depth gauge with a 100 mm base and fine adjustment.
- Hardened stainless steel construction.
- Easier and faster reading of dial.
- Base and measuring faces are hardened and micro-lapped
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Dial Depth Gauge |
|---|---|
| Range (mm) | 0 - 200 mm |
| Graduation (mm) | 0.05 mm |
| Base (W x T) | 100 x 6.5 mm |
| Max. Permissible Error (E MPE) | ±0.05 mm |
| Thickness of main beam | 4 mm |
| Length (mm) | 310 mm |
