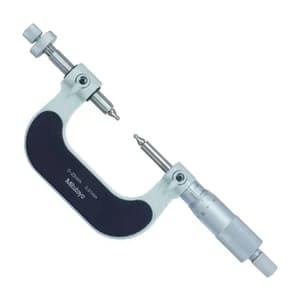

Mitutoyo 0 - 25 mm Gear Tooth Micrometer, 124-173
Roll over the image to zoom in
Key Features
- Product Type: Gear Tooth Micrometer
- Weight: 295 g
- Range (mm): 0 - 25 mm
- Graduation: 0.01 mm
- Accuracy: ±4μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,869 (Incl. of all taxes)
₹16,838 + ₹3,031 GST (18%)
MRP was MRP ₹22,450
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Interchangeable Ball Anvil-Spindle Tip Type
- Measures over-pin diameter of gears with precision steel (carbide) ball-tipped measuring faces.
- With Ratchet Stop for constant force.

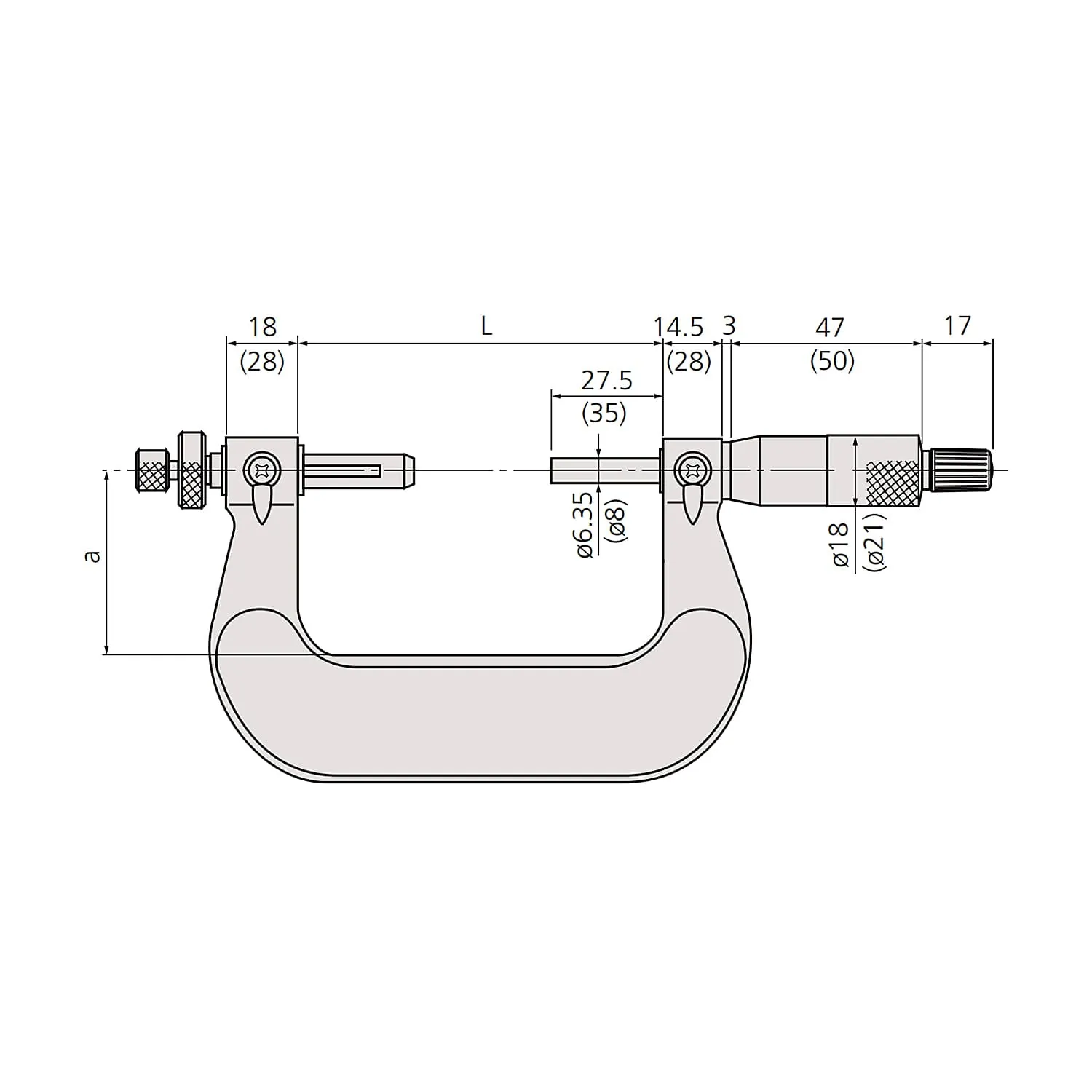

Dimension Measurement:
 |
|
Package Content:
- 1x Gear Tooth Micrometer
- 1x spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation | 0.01 mm |
| Accuracy | ±4μm |
| Force Measurement | 5 - 10N |
| Spindle Feed Error | 3 |
| Measuring Spindle | ø6.35 mm With Spindle Lock (Spindle Pitch 0.5 mm) |
| Face Measurement | Interchangeable Anvil / Spindle Inserts (Optional) |
| Scale | Thimble and Sleeve Satin Chrome Finish, ø18 mm |
