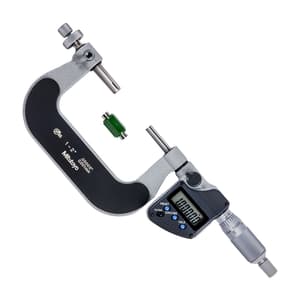

Mitutoyo 2 inch / 50 mm Digital Gear Tooth Micrometer (IP65), 324-352-30
Roll over the image to zoom in
Key Features
- Product Type: Gear Tooth Micrometer
- Weight: 490 g
- Range (Inches): 1/2 Inch
- Range (mm): 25 - 50 mm
- Resolution: 0.00005" / 0.001 mm
- Accuracy: ±0.0002"
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹38,224 (Incl. of all taxes)
₹32,393 + ₹5,831 GST (18%)
MRP was MRP ₹43,190
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- IP65 water/dust protection
- Measures over-pin diameter of gears with precision steel (carbide) ball-tipped measuring faces.
- With a standard bar
- Non-slip grip finish
- With Ratchet Stop for constant force
- With SPC output

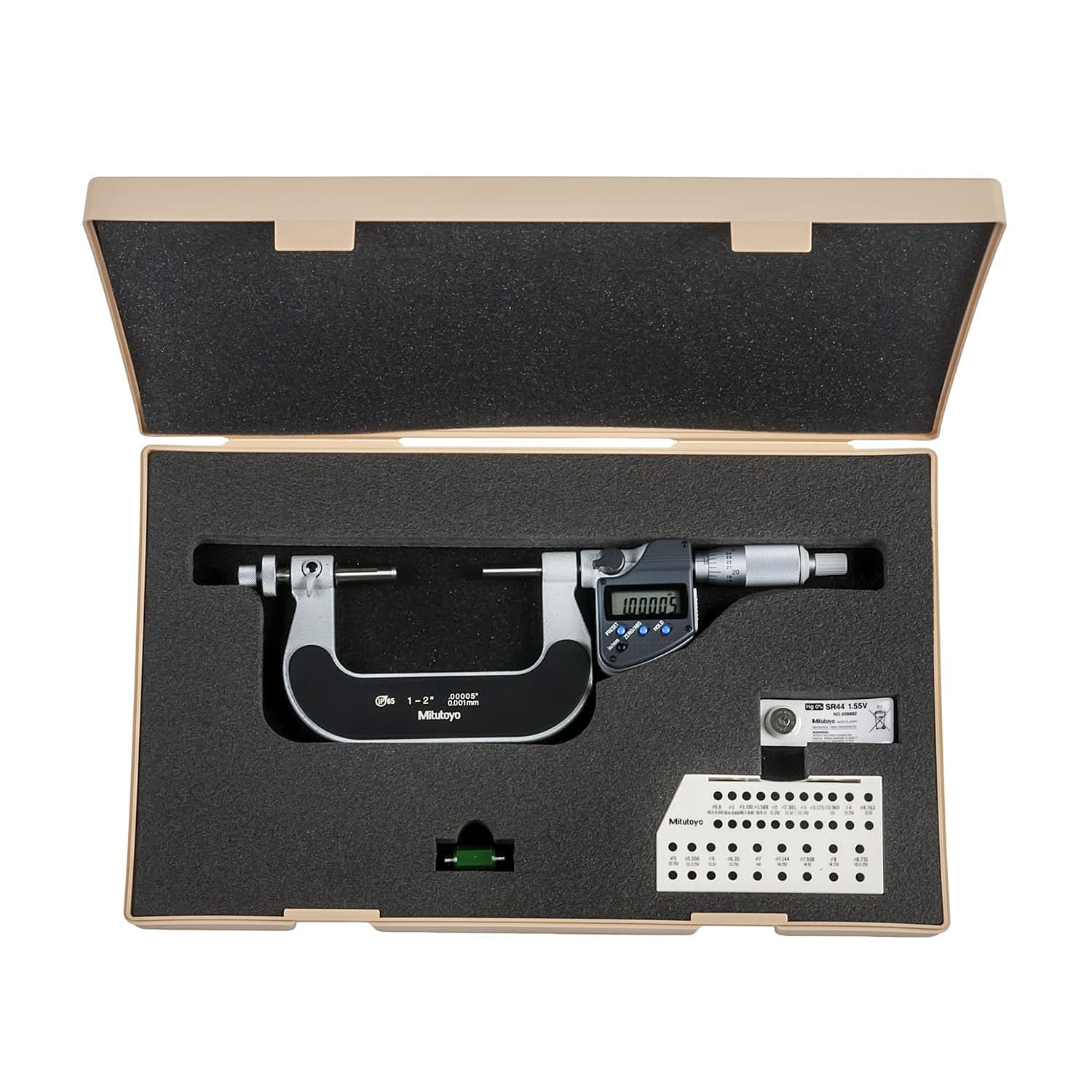

- Supplied in fitted plastic case
Functions:
- 2x PRESETS
- ABS / INC (INC ZERO)
- PRESET
- Automatic OFF after 20 minutes of non-use
- Locking functions
- Low voltage alarm
- KEEP
Dimension Measurement:
 |
|
Package Content:
- 1x Gear Tooth Micrometer
- 1x spanner
- 1x SR44 battery
- 1x Without interchangeable tips
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (Inches) | 1/2 Inch |
|---|---|
| Range (mm) | 25 - 50 mm |
| Resolution | 0.00005" / 0.001 mm |
| Accuracy | ±0.0002" |
| Force Measurement | 5 - 10N |
| Spindle Feed Error | 0.00015 inch |
| Measuring Spindle | With spindle lock, Ø6.35 mm, spindle pitch 0.5 mm |
| Face Measurement | Interchangeable Anvil / Spindle Inserts (Optional) |
| Scale | Thimble and Sleeve Satin Chrome Finish, ø18 mm |
| Battery Life | Approx. 2.4 years |
| Power Supply | 1x Battery SR-44 |
