Mitutoyo 0 - 25 mm Non-rotating Spindle Blade Micrometer (Type A), 122-101-10
Roll over the image to zoom in
Key Features
- Product Type: Blade Micrometers
- Weight: 260 g
- Range (mm): 0 - 25 mm
- Graduation (mm): 0.01 mm
- Type: A
- Blade Thickness: 0.75 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,514 (Incl. of all taxes)
₹9,758 + ₹1,756 GST (18%)
MRP was MRP ₹13,010
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways and other hard-to-reach features.
- Carbide-tipped measuring faces are available.
- Non-rotating spindle type.
- Equipped with a Ratchet Stop for constant measuring force.
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts.

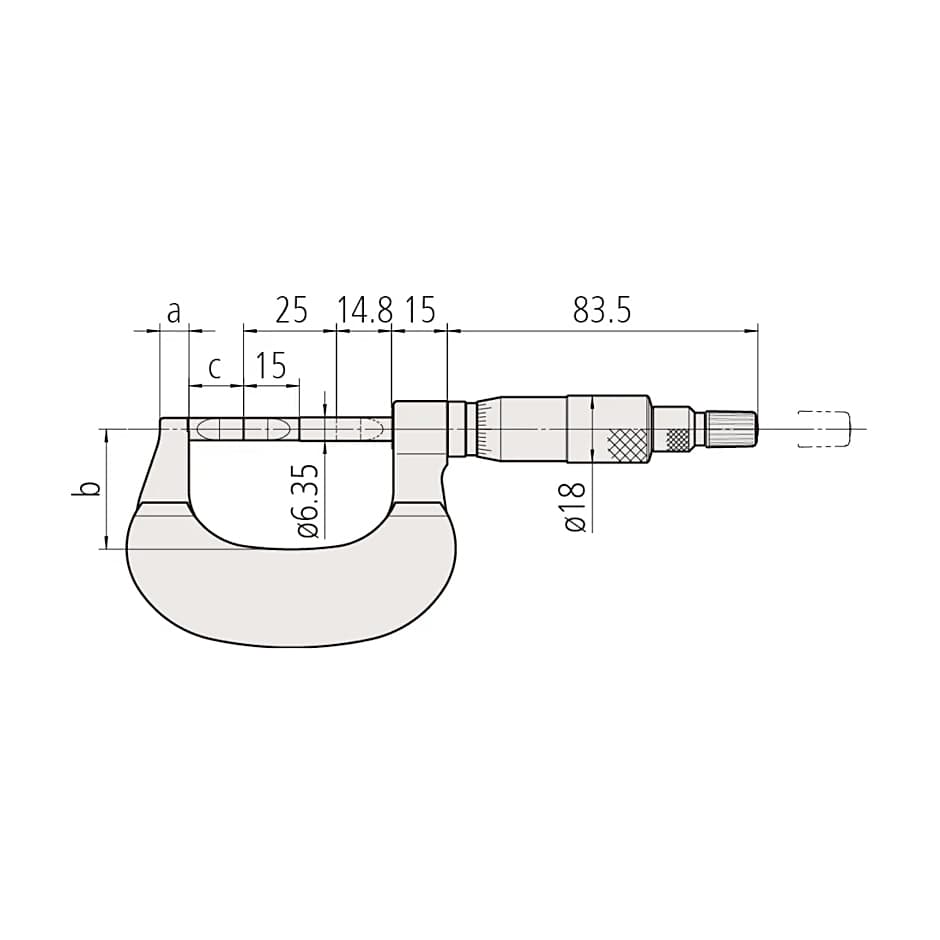

Dimensions Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±3 μm |
| Parallelism (μm) | 3 μm |
| Type | A |
| Measuring Force | 3 - 8 |
| Blade Thickness | 0.75 mm |
| Measuring Spindle | Ø6,35 mm (Spindle Pitch 0.5 mm) |
| Material | Hardened Steel |
