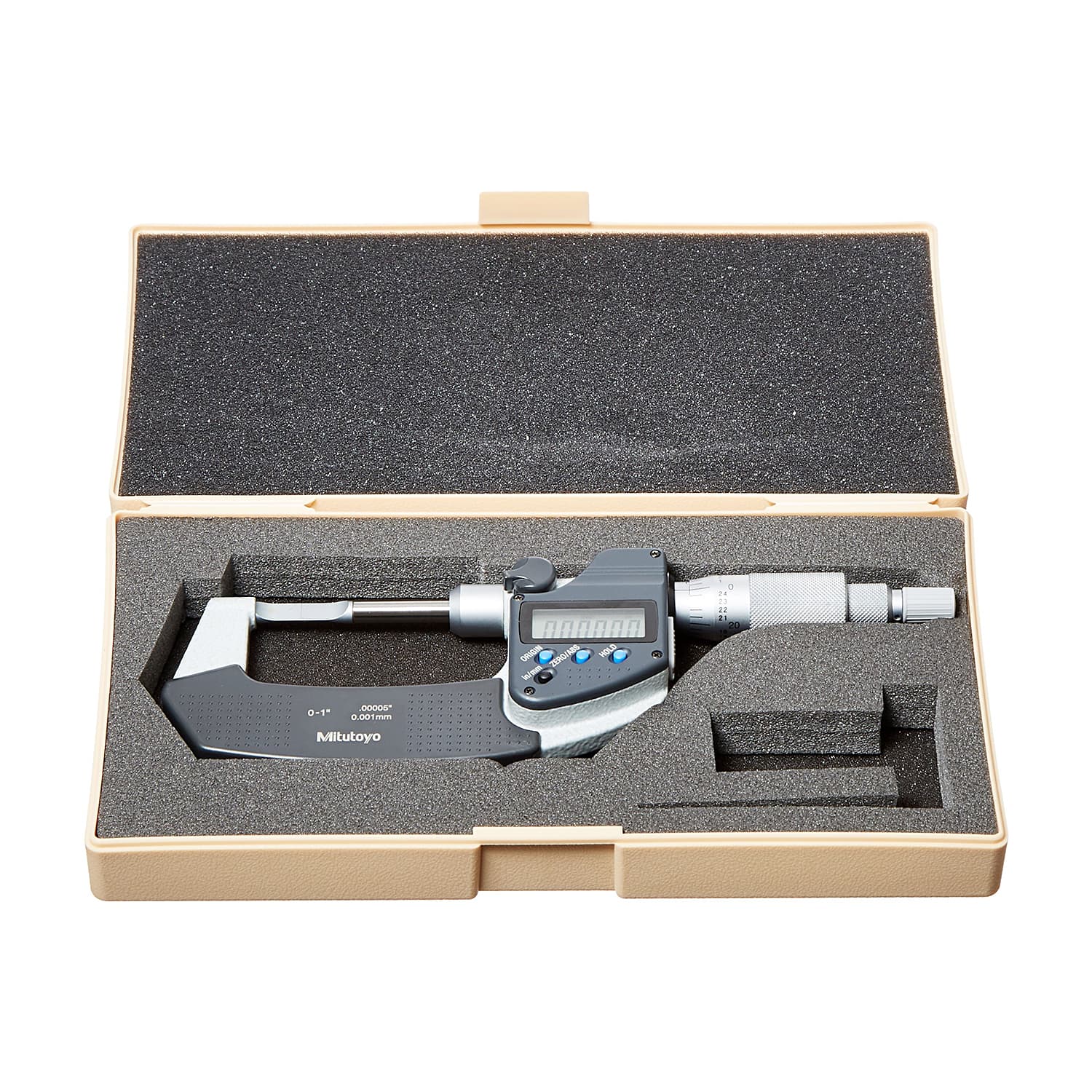

Mitutoyo 1 inch / 25.4 mm Non-rotating Spindle Type Digital Blade Micrometer (Type A), 422-330-30
Roll over the image to zoom in
Key Features
- Product Type: Blade Micrometers
- Weight: 365 g
- Range (mm): 0 - 25 mm
- Remarks: Type A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹39,746 (Incl. of all taxes)
₹33,683 + ₹6,063 GST (18%)
MRP was MRP ₹44,910
Save 25%
3 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
- Non-rotating spindle
- With ratchet stop for constant force
- Non-slip grip finish
- Supplied in fitted plastic case
Functions:
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low voltage alarm
- ORIGIN
Package Content:
- 1x Digital Blade Micrometer
- 1x Spanner
- 1x SR44 battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Resolution | 0.00005 inch / 0.001 mm |
| Accuracy | ±0.00015 inch |
| Remarks | Type A |
| Blade Size (mm) | 0.75 mm |
| Display | LCD, (Character Height 7.5 mm) |
| Measuring Face | Carbide-tipped or Hardened Steel Spindle & Anvil |
| Measuring Force | 3 - 8 N |
| Measuring Spindle | With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm |
| Parallelism | 0.00015 inch |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
| Power Supply | 1x Battery SR-44 |
| Battery Life | Approx. 2.4 Years |
