Mitutoyo 12 mm / 0.47 inch Absolute Deep-Throat Digital Thickness Gauge, 547-520S
Roll over the image to zoom in
Key Features
- Product Type: Thickness Gauge
- Weight: 380 g
- Range (mm): 0 - 12 mm
- Range (Inches): 0 - 0.47 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,099 (Incl. of all taxes)
₹17,033 + ₹3,066 GST (18%)
MRP was MRP ₹22,710
Save 25%
7 Business Days
1
90173029
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- This ABSOLUTE Digimatic Thickness Gauge is equipped with the standard and cost effective model of a digital indicator.
- It enables you to measure film, paper, etc. with flat contact points and tube wall thickness.
- Monodirectional communication via Digimatic data output.
Alarm:
- Low voltage
- Counting value composition error
- Overflow error
Package Content:
- Digital Thickness Gauge
- SR44 battery
- Spindle lifting lever (21AZB149)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Digital Thickness Gauge |
|---|---|
| Range (mm) | 0 - 12 mm |
| Range (Inches) | 0 - 0.47 inch |
| Contact Point | Thread (4-48UNF) |
| Digital Step | 0.0005 inch / 0.01 mm |
| Indicator No. | ID-S No. 543-783BS (ANSI/AGD type) |

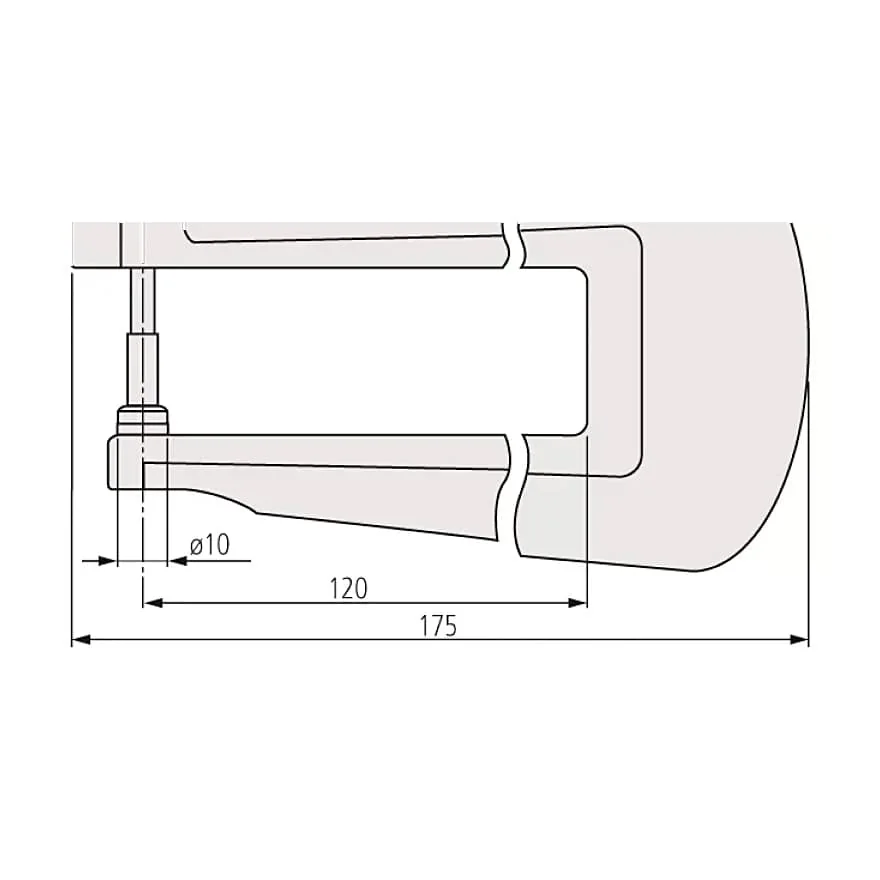

| Max. Measuring Depth | 120 mm |
| Max. Response Speed | Unlimited |
| Parallelism | 0.0005 inch |
| Type | With digital indicator with 3/8" stem refer to ANSI/AGD |
| Throat Type | Deep-Throat |
| Power Supply | 1x Battery SR-44 |
| Battery Life | Approx. 7000 Hours |
