Mitutoyo 12 mm / 0.47 inch Standard Absolute Digital Thickness Gauge, 547-526S
Roll over the image to zoom in
Key Features
- Product Type: Thickness Gauge
- Weight: 225 g
- Range (mm): 0 - 12 mm
- Range (Inches): 0 - 0.47 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹27,692 (Incl. of all taxes)
₹23,468 + ₹4,224 GST (18%)
MRP was MRP ₹31,290
Save 25%
7 Business Days
1
90173029
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- This ABSOLUTE Digimatic Thickness Gauge is equipped with the standard and cost effective model of a digital indicator.
- It enables you to measure film, paper, etc. with flat contact points and tube wall thickness.
- Monodirectional communication via Digimatic data output.
Alarm:
- Low voltage
- Counting value composition error
- Overflow error

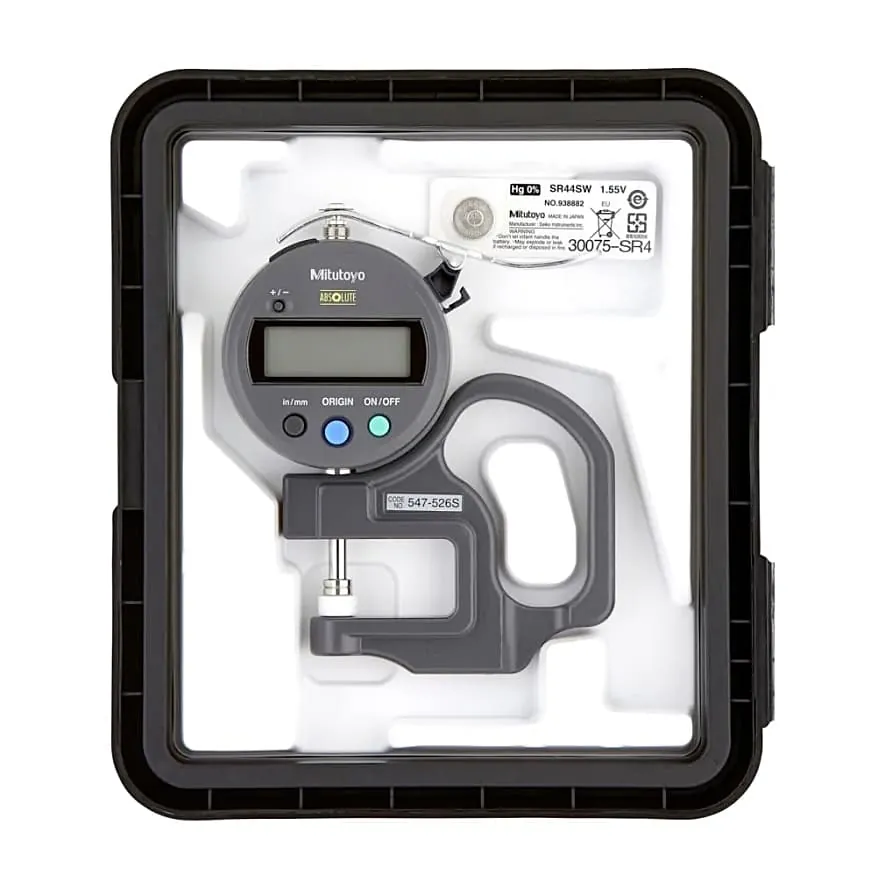

Package Content:
- Digital Thickness Gauge
- SR44 battery
- Spindle lifting lever (21AZB149)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Digital Thickness Gauge |
|---|---|
| Range (mm) | 0 - 12 mm |
| Range (Inches) | 0 - 0.47 inch |
| Contact Point | Thread (4-48UNF) |
| Digital Step | 0.0001 inch / 0.001 mm |
| Indicator No. | ID-S No. 543-793BS (ANSI/AGD type) |

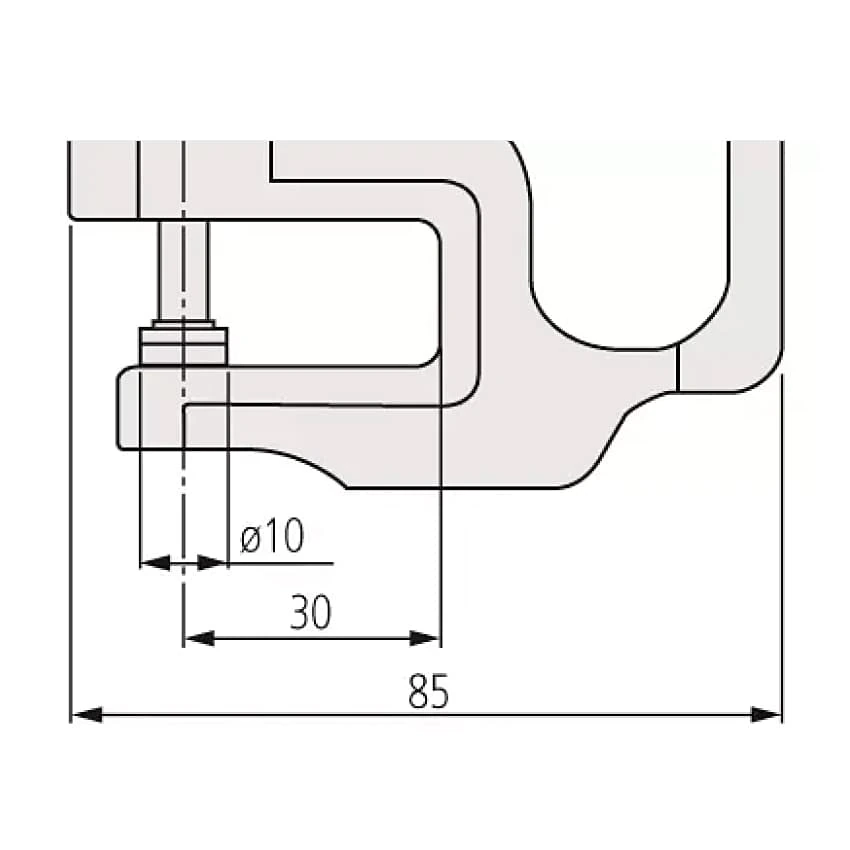

| Max. Measuring Depth | 30 mm |
| Max. Response Speed | Unlimited |
| Parallelism | 0.0002 inch |
| Type | With digital indicator with 3/8" stem refer to ANSI/AGD |
| Power Supply | 1x Battery SR-44 |
| Battery Life | Approx. 7000 Hours |
