Mitutoyo 150 - 175 mm Indicator Type Micrometer without Indicator, 107-207
Roll over the image to zoom in
Key Features
- Product Type: Indicating Micrometer
- Weight: 1.05 kg
- Range (mm): 150 - 175 mm
- Range (Inches): 6 - 7 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,037 (Incl. of all taxes)
₹20,370 + ₹3,667 GST (18%)
MRP was MRP ₹27,160
Save 25%
2 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Dial Gauge Micrometer allows you to quickly measure mass-produced parts.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Designed to mount a dial or a Digital indicator for direct GO/NG judgement of mass-produced parts.
- You can take rapid measurements thanks to its anvil retracting trigger.
- 3 mm anvil retracting stroke

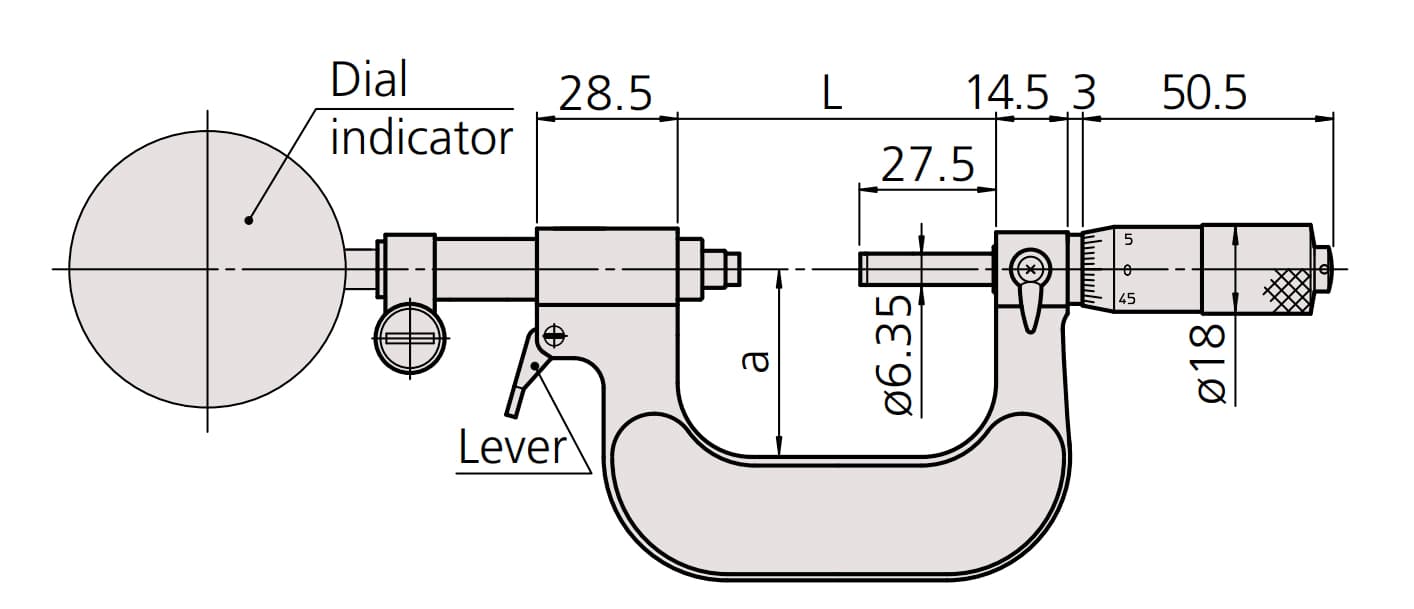

Dimension Measurement:
 |
|

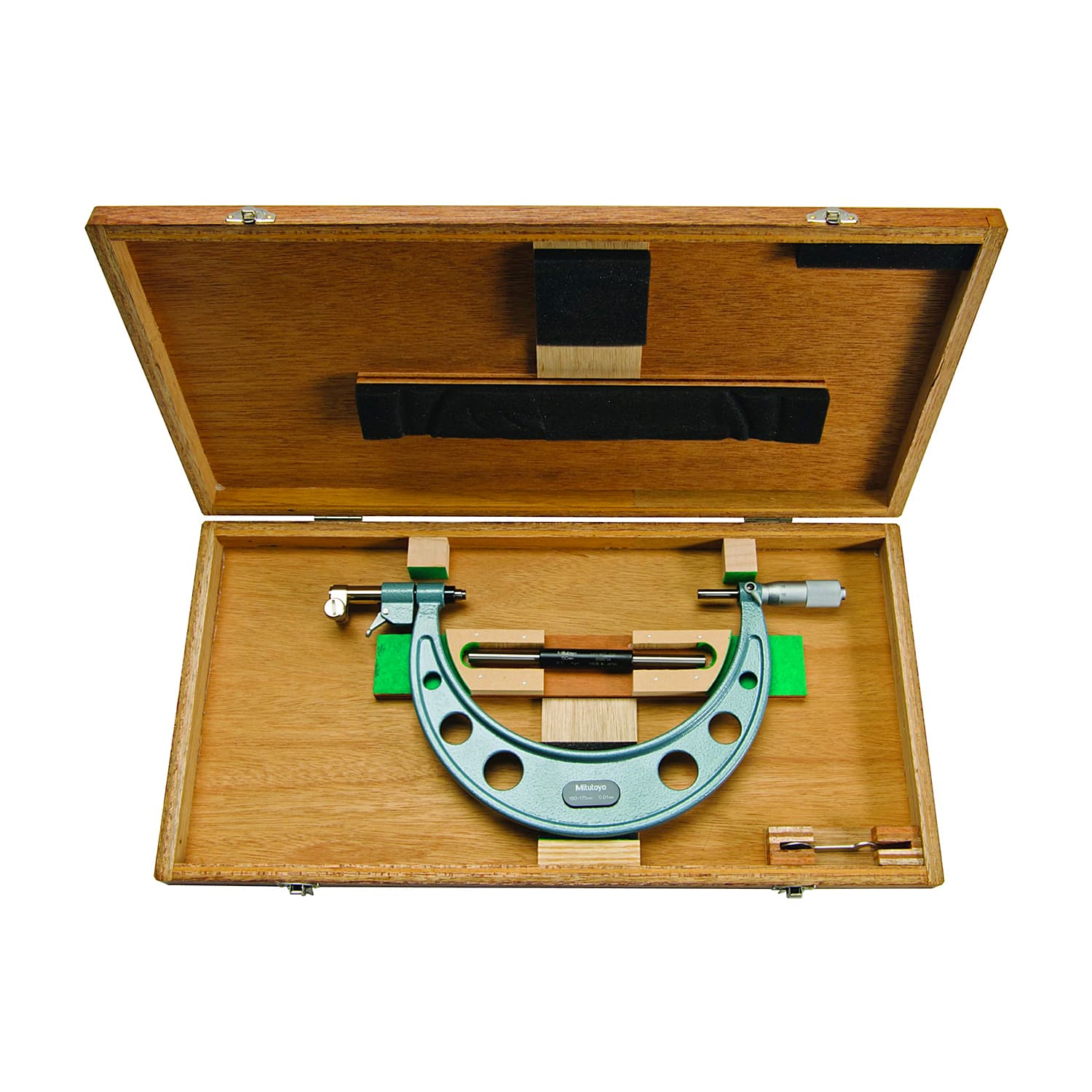

Package Content:
- 1x Outside Micrometer
- 1x Spanner
- 1x Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 150 - 175 mm |
|---|---|
| Range (Inches) | 6 - 7 inch |
| Graduation | 0.01 mm |
| Accuracy | ±4μm |
| Flatness | 0.6μm |
| Anvil Retracting Stroke | 3 mm |
| Measuring Force | 5 - 10N |
| Measuring Spindle | ø6.35 mm With spindle lock, (Spindle Pitch 0.5 mm) |
| Spindle Feed Error | 3 |
| Scale | Thimble and sleeve Satin Chrome Finish ø18 mm |
| Measuring Face | Carbide-tipped, Micro-lap Finish |
