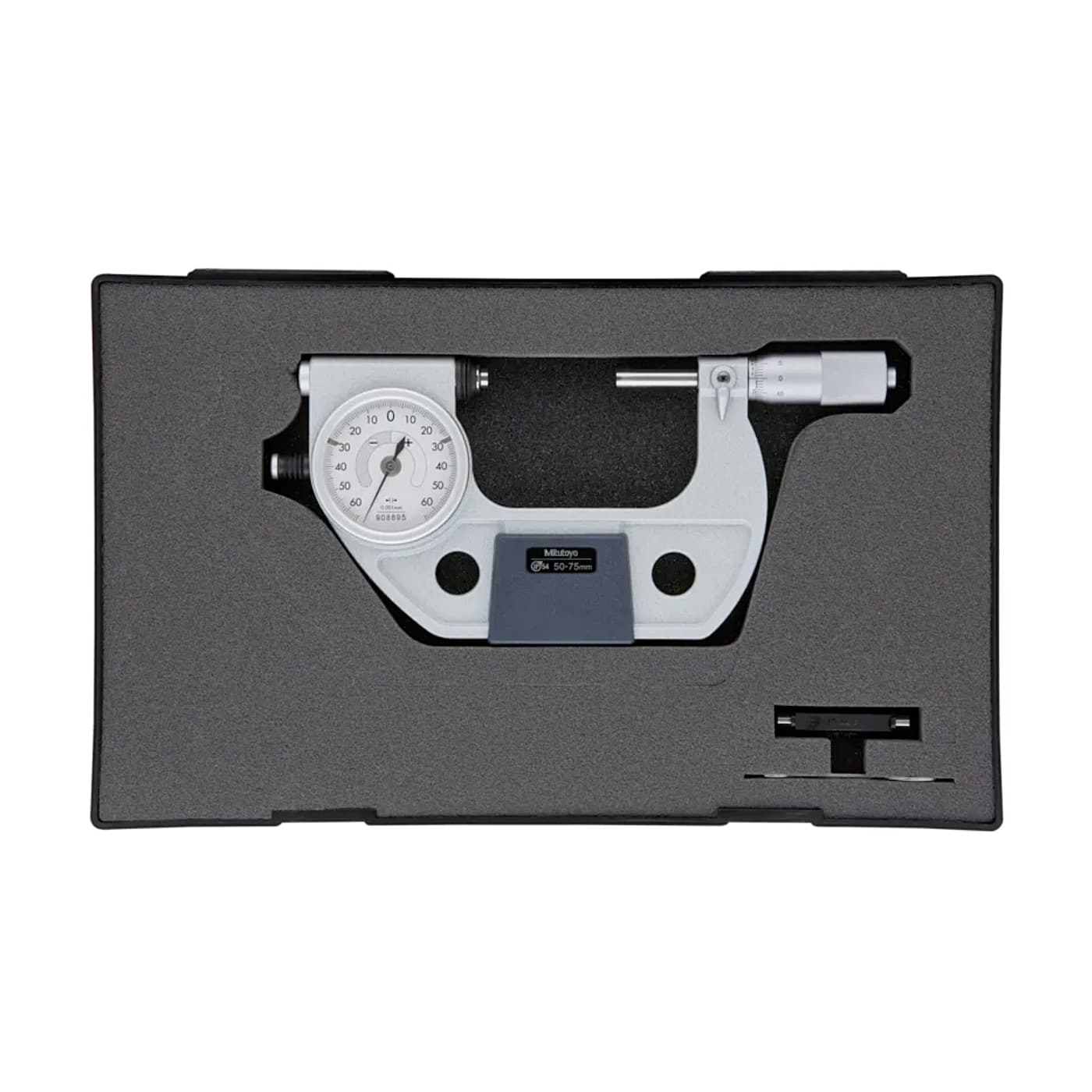

Mitutoyo 50 - 75 mm Dial Indicating Micrometer with Left Side Operating Button, 510-123
Roll over the image to zoom in
Key Features
- Product Type: Indicating Micrometer
- Weight: 820 g
- Range (mm): 50 - 75 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹36,932 (Incl. of all taxes)
₹31,298 + ₹5,634 GST (18%)
MRP was MRP ₹41,730
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital, rapid-retraction-anvil indicating micrometer equipped with a high resolution dial indicator.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Retractable anvil with indicator for threewire measurements of pitch diameter of precision screws and parallelism measurements.
- Supplied in fitted plastic case.
Package Content:
- 1x Indicating Micrometer
- 1x Spanner
- 1x Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 50 - 75 mm |
|---|---|
| Graduation | 0.001 mm |
| Accuracy for Dial Comparator | 1μm |
| Flatness | 0.3 μm |
| Anvil Retracting Stroke | 2 mm |
| Measuring Force | 5 - 10N |
| Spindle Feed Error | 3 |
| Indicating Range (mm) | ±0.06 mm |
| Operating button | Left Side |
| Parallelism | 1 μm |
| Repeatability | 0.4 μm |
| IP Rating | IP54 |
| Measuring Face | Carbide-tipped, Micro-lap Finish Ø8 mm |
| Measuring Spindle | With Spindle Lock, Ø8 mm, Spindle Pitch 0,5 mm |
| Scale | Thimble and sleeve Satin Chrome Finish Ø21 mm |
