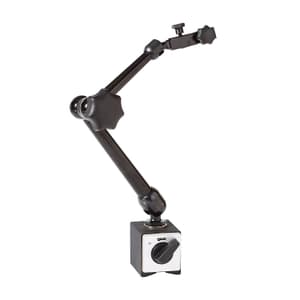

Ozar 80 kgf Articulating Arm Magnetic Base with Fine Adjustment, AMB-9426
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Stand
- Magnetic Force (kgf): 80 kgf
- Arm Length (mm): 310 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,576 (Incl. of all taxes)
₹4,725 + ₹851 GST (18%)
MRP was MRP ₹6,300
Save 25%
7 Business Days
1
–
Download Product LeafletNot available
Download Ozar CatalogueNot available
Download Ozar CatalogueNot available
Highlights
- Accepts test indicators with dovetail clamping mechanism
- Dial gauges can be held by the 3/8" or 8mm diameter stem or by the lug backing plate
- Arm has 3 articulating joints that can be locked with the single hand knob
- The rotary knob switches natural magnet on or off
- The precision surfaces and the bottom V are securely fastened to the ferrous work piece or machine table when the rotary knob is in the on position
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications

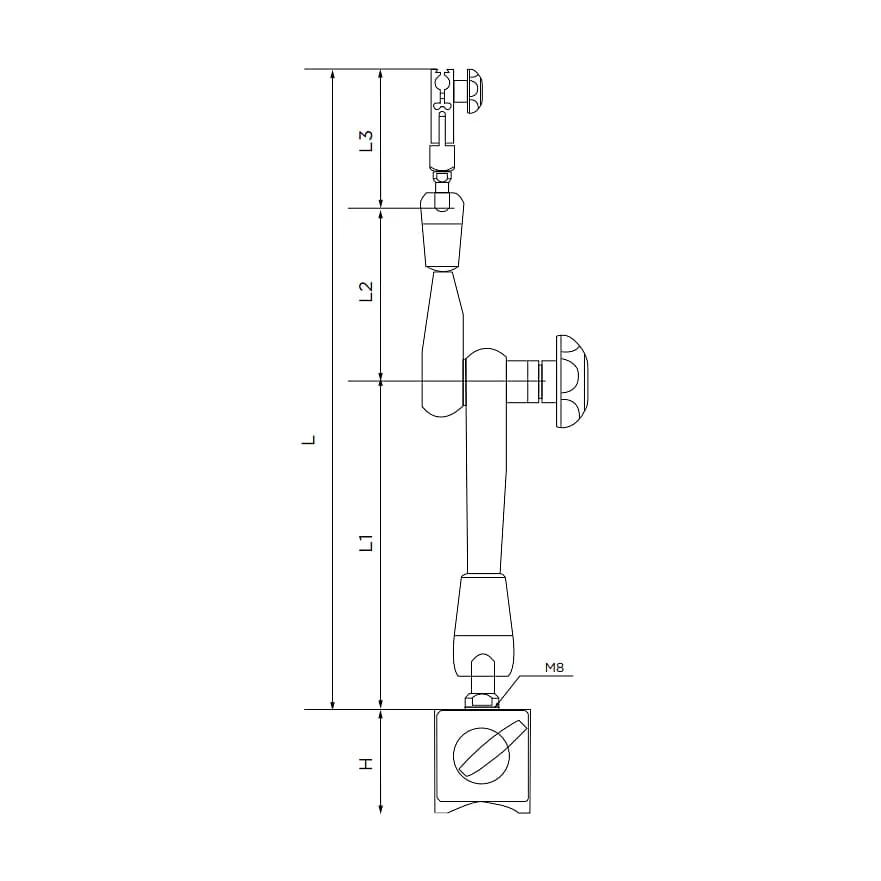

| Magnetic Force (kgf) | 80 kgf |
|---|---|
| L1 (mm) | 124 mm |
| L2 (mm) | 101 mm |
| L3 (mm) | 85 mm |
| Arm Length (mm) | 310 mm |
| Magnetic Base Dimensions (L X W X H) | 60 x 50 x 55 mm |
| Dia. Of Hole | Ø3/8 inch / Ø8 mm |
| Remark | Fine Adjustment |
