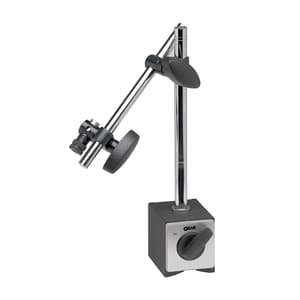

Ozar 80 kgf Magnetic Base without Fine Adjustment, AMB-9423

Shop all Ozar

SKU: ME.DI.MA.00111

Model: AMB9423

Roll over the image to zoom in

Visit Ozar Store

Key Features

  • Product Type: Magnetic Stand
  • Magnetic Force (kgf): 80 kgf
  • Dia. of Hole: Ø8 mm
See all product information

ToolBuy Benefits

₹2,647 (Incl. of all taxes)

₹2,243 + ₹404 GST (18%)

MRP was MRP ₹2,990

Save 25%

7 Business Days

1

–

Download Product LeafletNot available
Download Ozar CatalogueNot available

Highlights

  • Accepts test indicators with dovetail clamping mechanism
  • The rotary knob switches magnet on or off
  • The precision surfaces and the bottom V are securely fastened to the ferrous work piece or machine table when the rotary knob is in the on position.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

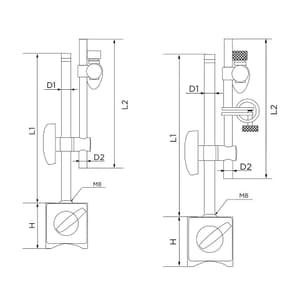

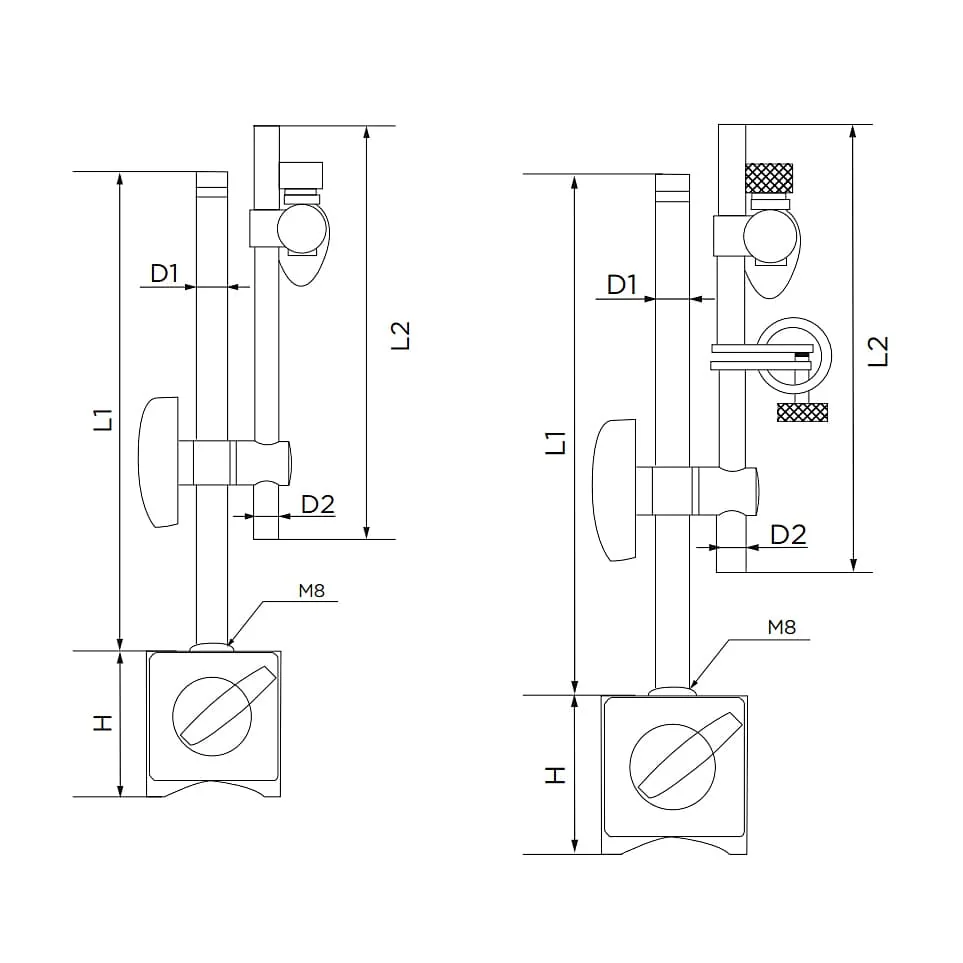

Specifications

Technical specifications for Ozar 80 kgf Magnetic Base without Fine Adjustment, AMB-9423
Magnetic Force (kgf)80 kgf
D1 (mm)Ø12 mm
L1 (mm)176 mm
D2 (mm)Ø10 mm
L2 (mm)165 mm
Dia. of HoleØ8 mm
Dimensions (L X W X H)60 x 50 x 55 mm
