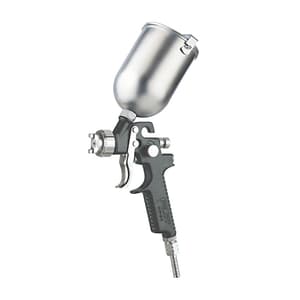

Pilot 0.35 Ltr High Performance Spray Gun, HP-64S
Roll over the image to zoom in
Key Features
- Product Type: Spray Gun
- Weight: 400 g
- Application: High Performance
- Cup Capacity: 0.35 Ltr
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,640 (Incl. of all taxes)
₹2,237 + ₹403 GST (18%)
MRP was MRP ₹2,260
Save 1%
Out of Stock
1 Business Days
1
–
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
- Lightweight gravity feed spray gun

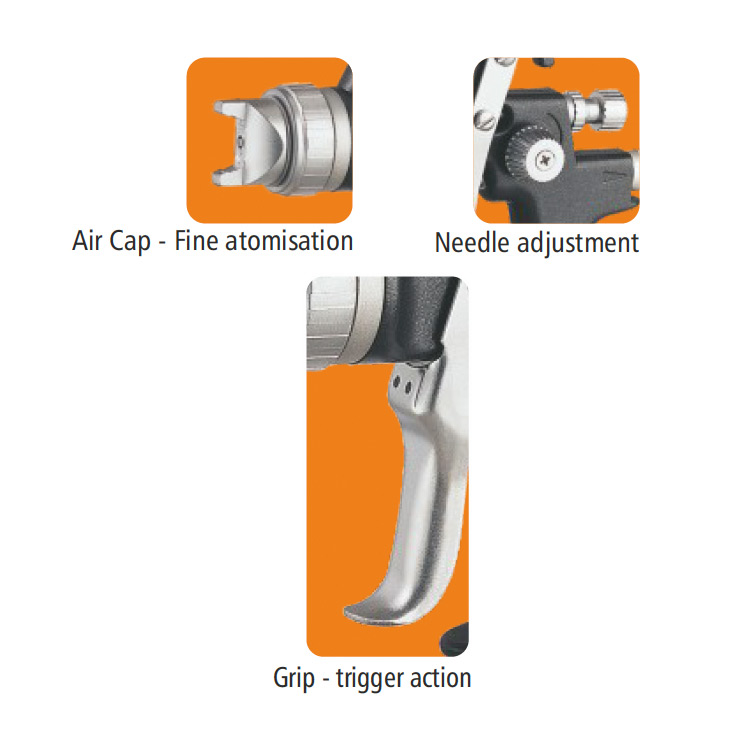

- Superior Air Cap technology
Areas of Application :
- Electrical Equipments
- Handicraft
- Furniture
- Automobiles
- Sports Goods
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | High Performance |
|---|---|
| Cup Capacity | 0.35 Ltr |
| Gun Distance From Workpiece (mm) | 228.6(9) |
| Fluid Nozzle Orifice Dia. (mm) | 1.6 |
| Required Pressure (kgs/Sq.cm) | 2-3 |
| Air Consumption Of Rated Pressure Lit/Min (c.f.m) | 115-170(4-6) |
| Material Output (Cc/Min) | 300 |
| Max. Pattern Width (mm) | 250 |
| Min. Air-Compressor (HP) | 1 |
