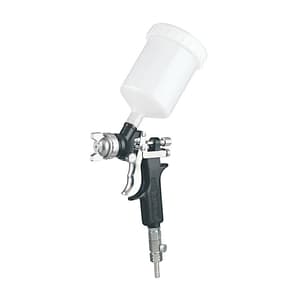

Pilot 0.57 Ltr Conventional Spray Gun, Auto 02
Roll over the image to zoom in
Key Features
- Product Type: Spray Gun
- Weight: 750 g
- Application: Conventional
- Cup Capacity: 0.57 Ltr
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,964 (Incl. of all taxes)
₹2,512 + ₹452 GST (18%)
MRP was MRP ₹3,220
Save 22%
Out of Stock
1 Business Days
1
–
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
- Easy trigger action
- Symmetric & Durable gravity cup
- Spreader control knob
- Superior finishing
Areas of Application :
- Machinery
- Automobiles
- Furniture
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | Conventional |
|---|---|
| Cup Capacity | 0.57 Ltr |
| Gun Distance From Workpiece (mm) | 228.6(9) |
| Fluid Nozzle Orifice Dia. (mm) | 1.4 |
| Required Pressure (kgs/Sq.cm) | 2.8 - 4.2 |
| Air Consumption Of Rated Pressure Lit/Min (c.f.m) | 255 - 425 (9 - 15) |
| Material Output (Cc/Min) | 250 |
| Max. Pattern Width (mm) | 290 |
| Min. Air-Compressor (HP) | 2 |
