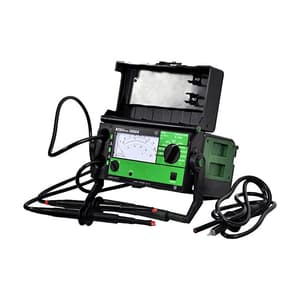

Rishabh 5000V / 100 MOhms Range High-voltage Insulation Tester With Battery Operation, RISH INSU 5000A

HV insulation tester used for measurement from 10Kohm-1Teraohm with selectable test voltage upto 5KV. Voltage measurement upto 2.5KV AC/DC. Confirms to IS 2992(EN 61557) IP52, EMC. Available in Mains, rechargeable battery and crank operated. Guard terminal for elimination of surface current.

Features:

• Easy to read logarithmic display
• Measurement to 2000V in accordance with DIN VDE 0413
• Guard Terminal eliminates surface current
• Power supply with batteries or Crank Generator (Optional) or mains operated (Optional)

Applications:

• Voltage measurement to 2000 V: With the voltage measuring ranges, test objects can be checked for the absence of voltage in networks of up to 2KV. This is important for insulation resistance measurement, because extraneous voltages distort measurement results.
• Discharge of Capacitive Devices under Test: Capacitive devices under test such as cables and coils, which might be discharged to test voltage, are discharged by the measuring instrument. The drop in voltage can be observed at the needle gauge.
• Measurement in accordance with EN61557 part 1 and 2/ IS 2992 (VDE 0413): Measuring current is equal to 1mA at a test voltage of 100V, 250V, 500V and 1000V.
• Measurement Cables with Heavy-Duty Insulation:  The measurement cables with heavy-duty insulation are permanently connected for safety and technical reasons. Possible danger caused by the unintentional removal of cables is thus avoided, for example when charging occurs due to capacitive test objects.
• Needle Gauge with LEDs: Three LEDs arranged within the needle gauge make reading easier. The lamp lights up which is located next to the scale, which is assigned to the selected measuring range. During the measurement sequence, the green LED indicates whether or not the battery charge is sufficient for the measurement.

Reference Conditions:

• Ambient Temperature: +23°C ±2k
• Relative Humidity: 45 - 55%
• Measured Quantity Frequency: 50Hz ± 10Hz (for voltage measurements)
• Line Voltage Waveform: Sine, deviation between effective and rectified value < 1%
• Battery Voltage: 8V ± 1%
• Operating position: Horizontal
• Power Supply Voltage (Mains): 9V

Package Content:

• High-voltage insulation tester with permanently connected measurement cables and test probes, 2 crocodile clips (5 kV version) and plug in battery module including batteries
• Carrying strap
• Operating instructions
• Test certificate
