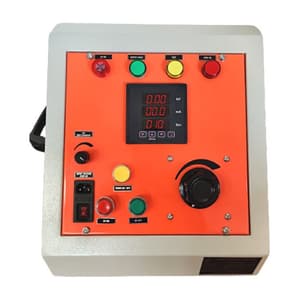

Rishabh 5KV / 100mA Range High-voltage Insulation Tester, RISH HVT 5kV AC
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Voltage: 0 to 5kV AC
- Current Range: 10 - 100mA
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹26,643 (Incl. of all taxes)
₹22,579 + ₹4,064 GST (18%)
MRP was MRP ₹31,360
Save 28%
7 Business Days
1
–
Download Product LeafletNot available
Download Rishabh CatalogueNot available
Download Rishabh CatalogueNot available
Highlights
The Rish HVT offers a 5kV test voltage to determine the withstand strength of electrical insulation for the normally occurring over voltage transients. It is available with manual operation and provides variable output voltage. It has selectable tripping current to identify breakdown voltage of different test objects and also have timer, useful to set duration of test period. Rish HVT is provided with HV ON indication, supply fault / earth open & overload protection provided for safety of operator, test set & object under test.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Voltage range upto 5kV AC for testing various devices
- Selectable current range starting from 10mA to 100mA to offer wide variety of testing
- Safety features - Zero start interlock, Overload protection, L&N reversal protection, Earth Open protection, HT ON alarm to ensure user safety while testing
- Rugged design to work well in harsh industrial environments
- Compact size with unique design & good ergonomics, making it user-friendly like never before
Package Content:
- Insulation Tester
- HV Cable for testing 3m
- Power Cord 3m
- Spare fuse
- Instruction manual
- Earthing Cable
- Discharge Rod
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage | 0 to 5kV AC |
|---|---|
| Voltage Resolution | 0.01kV |
| Current Range | 10 - 100mA |
| Accuracy for Voltage & Current DC | ±2% of Range ±2 Digits |
| Mains Supply | 230V 50 Hz ±10%, 1 Phase AC |
| Duty Cycle | 2 min On / 5 min Off |
| Timer | 0 - 999 Seconds Digital Timer |
| Timer DC Accuracy | ±0.05% + 1 Counts of Full Scale Reading |
| Operation Mode | Manual |
| Cooling Type | Air Cooled |
| Indication | Bright LED for Power ON & Test ON |
| Safety | L&N Reversal & Earth Open Protection, Dimmer Zero, Fuse, HT on Alarm |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | 0 to +70°C |
| Relative Humidity | 0 - 90% Non-condensing |
| Display | LED |
| Number of Digits | 3 Digits in Each Line |
| Over Range Display | Kv-105% Tripping, mA - 1mA to 50/100mA Settable |
| Applicable Standards | IEC 61010-1 / IS 2071-1 for testing techniques |
