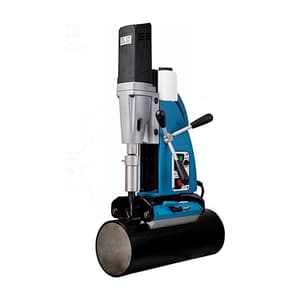

Schifler 1500W Magnetic Core Drilling Machine, SWC 50 PDT
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Core Drill
- Weight: 16 kg
- No Load Speed: 250 - 450 rpm
- Motor Power: 1500 W
- Magnet Power: 15000 N
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,15,050 (Incl. of all taxes)
₹97,500 + ₹17,550 GST (18%)
MRP was MRP ₹1,62,500
Save 40%
3 Business Days
1
–
Download Product LeafletNot available
Download Schifler CatalogueNot available
Download Schifler CatalogueNot available
Highlights
- German Technology
- Safety Shield
- Strong Magnet
- A to Z Support
- Powerful Motor
- Auto Carbon
- Surge Protection
- Voltage Fluctuation Protection
Standard Accessories:
- Allen Key 2.5, 4,6
- Pilot Pin 6 x 50, 8 x 50
- Taper Drift
- Arbor MT3*19
- Safety Belt
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Source | Corded |
|---|---|
| No Load Speed | 250 - 450 rpm |
| Motor Power | 1500 W |
| Magnet Power | 15000 N |
| Input Supply Voltage / Frequency | 220 V-240V / 50-60 Hz |
| Counter Sinking | Ø 65 mm |
| Flexible Stroke Upto | 205 mm |
| Twist Drill | Ø 23 mm |
| Spindle | MT3, 19 mm Weldon |
| Tapping | M6-M20 |
| Broach Cutter (35 mm length) | Ø 12 mm – Ø 50 mm |
| Broach Cutter (50 mm length) | Ø 12 mm – Ø 50 mm |
| Broach Cutter (80 mm length) | Ø 18 mm – Ø 26 mm |
| Smallest Pipe Diameter | 80 mm (3.3 / 16") |
