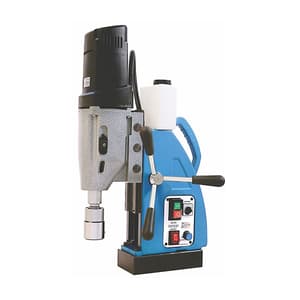

Schifler 1700W Magnetic Core Drilling Machine, SWC 80 WT
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Core Drill
- Weight: 21 kg
- No Load Speed: 110 - 425rpm
- Motor Power: 1700 W
- Magnet Power: 15000 N
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,06,200 (Incl. of all taxes)
₹90,000 + ₹16,200 GST (18%)
MRP was MRP ₹1,50,000
Save 40%
3 Business Days
1
–
Download Product LeafletNot available
Download Schifler CatalogueNot available
Download Schifler CatalogueNot available
Highlights
- German Technology
- Safety Shield
- Strong Magnet
- A to Z Support
- Powerful Motor
- Auto Carbon
- Surge Protection
- Voltage Fluctuation Protection
Standard Accessories:
- Allen Key 2.5, 4,6
- Pilot Pin 6 x 50, 8 x 50
- Arbor MT3*19
- Arbor MT3*32
- Taper Drift
- Safety Belt
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Source | Corded |
|---|---|
| No Load Speed | 110 - 425rpm |
| Motor Power | 1700 W |
| Magnet Power | 15000 N |
| Input Supply Voltage / Frequency | 220 V-240V / 50-60 Hz |
| Counter Sinking | Ø 100 mm |
| Tapping | M20 |
| Twist Drill | Ø 32 mm |
| Spindle 1 | MT3, 19 mm Weldon |
| Spindle 2 | MT3, 32mm Weldon |
| Broach Cutter (35 mm length) | Ø 12 mm – Ø 80 mm |
| Broach Cutter (50 mm length) | Ø 12 mm – Ø 80 mm |
| Broach Cutter (80 mm length) | Ø 18 mm – Ø 80 mm |
