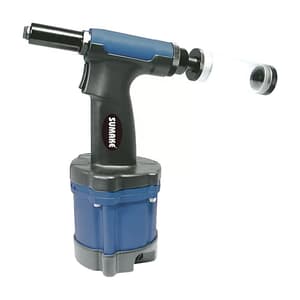

Sumake 1/4 inch Hydraulic Blind Rivets FaSTening Air Riveter (Vacuum Type), ST-66154

Shop all Sumake

SKU: PN.PN.AI.00143

Model: ST66154

Roll over the image to zoom in


Key Features

  • Product Type: Air Hydraulic Riveter
  • Weight: 1.95 kg
  • Blind Rivet Setting Capacity: 3/16" (4.8 mm); 1/4" (6.4 mm)
  • Stroke Length: 17 mm (11/16")
See all product information

ToolBuy Benefits

₹27,730 (Incl. of all taxes)

₹23,500 + ₹4,230 GST (18%)



3 Business Days

1

Download Product LeafletNot available
Download Sumake CatalogueNot available

Highlights

  • Patented Vacuum Mandrel Collection Systemholds the rivets in the Nosepiece regardless oftool position also assure perfect shock absorption.
  • Designed with patented " tools assembled withmodule units in composite housing: for operator'scomfort and ease of service.
  • Easy adjustable Vacuum Regulator for the bestefficiency in setting different size of bind rivets.
  • Easy adjustable head & Nut designed for obtainingthe most effective stroke.
  • Two-piece Ultra Jas made from high-grade toolSteel and special heat treatment for durability.
  • Forged and heat treated aluminum alloy madeHydraulic Section for the best rigidity.
  • Side-mounted Swivel Air Inlet Joint for the best maneuverability of the tool.
  • More efficient and faster rivet setting thancompatible designs in the field.


Package Content:

  • 1pc - Air Riveter
  • 1pc each - 1/8"; 5/32"; 3/16"; 1/4" Nose Piece (in tool)
  • 1pc - Collection Bottle
  • 1pc - Jaw Pusher (3/16")
  • 1pc - Guide Hose
  • 2pcs - Multi-Wrench

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Sumake 1/4 inch Hydraulic Blind Rivets FaSTening Air Riveter (Vacuum Type), ST-66154
Blind Rivet Setting Capacity3/16" (4.8 mm); 1/4" (6.4 mm)
Stroke Length17 mm (11/16")
Recommend Air Pressure90 psi (6.3 kg/cm2)
Traction Power1022 Kg (2248 lbs)
Air Inlet (PT)1/4 inch
Air Hose (ID)3/8 inch
Jaw2
Overall Length269 mm (10-9/16")
