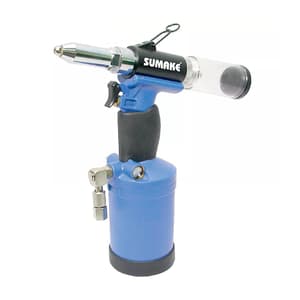

Sumake 3/16 inch Air Hydraulic Blind Riveter, ST-66155V
Roll over the image to zoom in
Key Features
- Product Type: Air Hydraulic Riveter
- Weight: 1.87 kg
- Working Pressure: 85 ~ 90 psi (6 ~ 6.3 kgs/cm2)
- Stroke: 19.5 mm (0.768")
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,355 (Incl. of all taxes)
₹17,250 + ₹3,105 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Sumake CatalogueNot available
Download Sumake CatalogueNot available
Highlights
- Lightweight and ergonomically designed.
- It can be suspended or hand-held.
- Air-hydraulic operation.
- Heavy-duty plastic body.
- Ultra Jaws for longer life.
- Long stroke 19.5mm (0.768 inch).
- Integrated vacuum system for mandrel retention and collection.
- Bi-directional 360 rotation air hose universal joint.
- Brand-new technology; have low recoil of shockless; can reduce part of tools consume; and the operator is tired.
- Can be connected universal joint and opened or closed in order to reduce the consumption of air easily.
- Safety valve; automatically release the pressure when the pressure is over the set 110 psi to protect from the operator and tool.
Rivet Capacity:
- Standard blind rivet: Ø2.4-4.8;
- Blind rivet magnalock/monobolt/oarlock: Ø 2.4- 4.8
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Working Pressure | 85 ~ 90 psi (6 ~ 6.3 kgs/cm2) |
|---|---|
| Stroke | 19.5 mm (0.768") |
| Traction Power | 1088 kgs (2400 lbs) |
| Air Consumption | 4 CFM |
| Nosepieces | 3/32, 1/8, 5/32, 3/16 inch (2.4, 3.2, 4.0, 4.8 mm) |
| Height (mm) | 301 mm |
| Length of Placing Head | 290 mm |
| Base Diameter | 88.6 mm |
