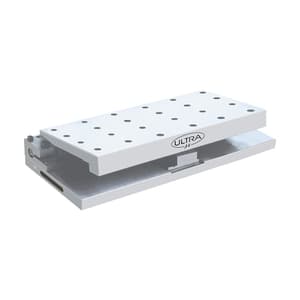

Ultra 450 x 150 x 65 mm Sine Table, UL 40104
Roll over the image to zoom in
Key Features
- Product Type: Sine Table
- Length (mm): 450 mm
- Width (mm): 150 mm
- Height (mm): 65 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹64,900 (Incl. of all taxes)
₹55,000 + ₹9,900 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Ultra Precision CatalogueNot available
Download Ultra Precision CatalogueNot available
Highlights
- Hardness 58 ± 2 Rc & Tempered
- Used for Precision measurement, setting of angles utilizing slip gauge & light machining.
- Ideal for high-accuracy grinding operations.
- Accuracy for squareness, Parallelism & flatness is 0.010 mm upto 200L & 0.015mm upto 450L.
- Positive locking at all angles without any distortion.
- Angle can be set within ±5 seconds.
- Centre Distance between rollers is within 0.005mm.
- Firm clamp to reduce possibility of distortion.
- M6 & M8 tapped holes for job clamping.
- Low height for more wheel clearance.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 450 mm |
|---|---|
| Width (mm) | 150 mm |
| Height (mm) | 65 mm |
| Centre Distance (mm) | 100 mm |
| Series | UL-401 |
| Inclination | 0 - 45° |
| Grade | IS: 5939 - 1970 |
| Material | High Quality Alloy Steel |
