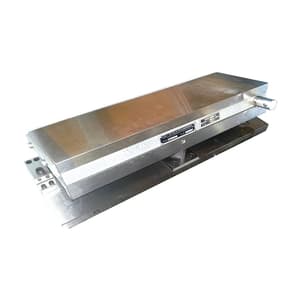

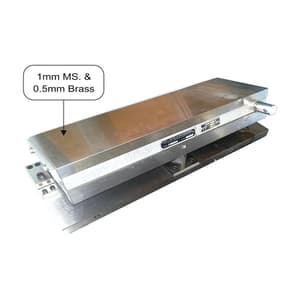

Ultra 450 x 200 x 105 mm Magnetic Sine Table, UL 40305
Roll over the image to zoom in
Key Features
- Product Type: Sine Table
- Length (mm): 450 mm
- Width (mm): 200 mm
- Height (mm): 105 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹94,990 (Incl. of all taxes)
₹80,500 + ₹14,490 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Ultra Precision CatalogueNot available
Download Ultra Precision CatalogueNot available
Highlights
- Used for Precision measurement,setting of angles & Light machining.
- Accuracy for Square ness, Flatness & Parallelism within 0.010mm upto 200L & 0.015mm upto 450L.
- Angle can be set within ±5 seconds.
- Centre Distance between roller is within 0.005mm.
- Hardness 60 ± 2 Rc & Tempered.
- Magnetic Table for job holding.
- Firm hinged clamp to reduce possibility of distortion.
- Magnetic Chuck with fine Pitch. (1.5 mm)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 450 mm |
|---|---|
| Width (mm) | 200 mm |
| Height (mm) | 105 mm |
| Centre Distance (mm) | 150 mm |
| Series | UL-403 |
| Inclination | 0 - 45° |
| Grade | IS: 5939 - 1970 |
| Material | High Quality Alloy Steel |
