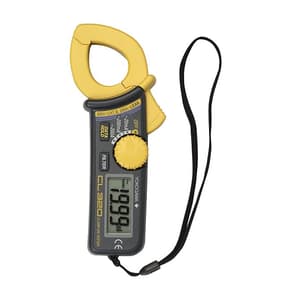

Yokogawa 1999 Count / 200A AC Manual Ranging Clamp-on Tester, CL320
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 120 g
- Display Counts: 1999 Counts
- AC current Range: 20mA to 200A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹51,920 (Incl. of all taxes)
₹44,000 + ₹7,920 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Yokogawa CatalogueNot available
Download Yokogawa CatalogueNot available
Highlights
- Leakage current measurement with current range from 20mA to 200A
- Light weight and compact design
- Manual range switching and auto power-off functions
- 24mm in diameter of measurable conductor
- Mean value display
- Auto power-off
- Manual range switching
- Approved for conformity to safety standards EN61010-1, EN61010-2-032(CAT. III 300 V)
How to Use?
- Always observe instruction manual cautionary notes.
- Follow maximum voltage level restrictions (up to 300V AC).
- Keep transformer jaws fully closed during current measurement.
AC Current Measurement:
- Set range switch
- Press jaw open/close lever and close jaws over one conductor only. The measured current value is shown on display.
Accuracy:
- At 23°C±5°C, 75%RH or less
- Accuracy: ±( % rdg + dgt) = ±(% readout + value of least significant digit)
| Parameter | Reference | Accuracy | |
|---|---|---|---|
| WIDE(40~400Hz) | 50/60Hz | ||
| AC current | 20mA/200mA | 2.0+4 (50/60Hz) | 3.0+5 (50/60Hz) |
| 200A(0~100A) | 5.0+6 (40~400Hz) | ||
| 200A(100.1~200A) | 5.0+4 (50/60Hz) | 5.0+5 (50/60Hz) |
Accessories:
- Carrying case (93033)
- User's manual (IM CL320)
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 1999 Counts |
|---|---|
| AC current Range | 20mA to 200A |
| AC/DC Current Resolution | 0.01mA |
| AC Current Frequency | 40 - 400Hz |
| Method of Detection | Mean Value |
| Response Time | Approx. 2 Seconds |
| Range Switching | Manual-range |
| Data Hold | On all range |
| Operating Temperature & Humidity | 0 - 40°C, 85% RH or less (No Condensation) |
| Influence of External Magnetic Field | 10 mA or less in proximity to a 14.4 mm-dia conductor carrying 100A |
| Influence of Conductor Position | Within 5 dgt for 0 to 50A, or 2% for 50 to 200A (10 mm-dia conductor at inside the jaw) |
| Influence of Residual Current | 10 mA or less in proximity to a 10 mm-dia conductor carrying 50A |
| Safety Standard | Conforms EN61010-1, EN61010-2-032 |
| Circuit Voltage | 300 Vrms or less |
| Withstanding Voltage | 3.7 kV AC for one minute |
| Power Supply | LR-44 x 2(3V), SR-44 x 2 |
| Battery Life | Approx. 15 Hours (Continuous) |
| Consumed Current | Approx. 5mA |
| Auto Power-off | Approx. 10 minutes |
| Diameter of Measurable Conductor | Max. 24 mm |
| Dimensions (W x H x D) | 60 x 149 x 26 mm |
| Origin | Made in Japan |
