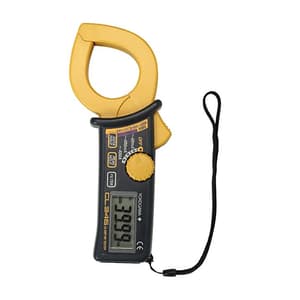

Yokogawa 4200 Count / 400A AC TRMS Manual Ranging Clamp-on Tester, CL345
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 270 g
- Display Counts: 4200 Counts
- AC current Range: 40mA to 400A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹64,900 (Incl. of all taxes)
₹55,000 + ₹9,900 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Yokogawa CatalogueNot available
Download Yokogawa CatalogueNot available
Highlights
- Leakage current measurement with current range from 40mA to 400A
- Manual range switching and auto power-off functions
- 40mm in diameter of measurable conductor
- True RMS display
- Auto power-off
- Manual range switching
- Approved for conformity to safety standards EN61010-2-032 (CAT. III 300 V)
Accessories:
- Carrying case (93030)
- User's manual (IM CL340)
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 4200 Counts |
|---|---|
| AC current Range | 40mA to 400A |
| AC Current Resolution | 0.01mA |
| AC Current Frequency | 20 ~ 1kHz |
| Method of Detection | True RMS |
| Response Time | Approx. 2 Seconds |
| Range Switching | Manual-range |
| Peak & Data Hold | On all range |
| Operating Temperature & Humidity | 0 - 40°C, 85% RH or less (No Condensation) |
| Influence of External Magnetic Field | 10 mA or less in proximity to a 15 mm-dia conductor carrying 100A |
| Influence of Conductor Position | 40/400 mA range: Within 5 dgt at every part inside the jaw400A range, 0 to 250A:Within ±0.5% rdg ±5 dgt at every part inside the jaw section |
| Influence of Residual Current | 12 mA or less in proximity to a 10 mm-dia conductor carrying 100A |
| Safety Standard | Conforms EN61010-1, EN61010-2-032 |
| Circuit Voltage | 300 Vrms or less |
| Withstanding Voltage | 3.7 kV AC for one minute |
| Power Supply | LR03 x 2, R0-3(UM-4) x 2 |
| Battery Life | Approx. 24 hours (continuous) |
| Consumed Current | Approx.21 mA |
| Auto Power-off | Approx. 10 minutes |
| Diameter of Measurable Conductor | Max. 40 mm |
| Dimensions (W x H x D) | 81 x 185 x 32 mm |
| Origin | Made in Japan |
