Apex 10 mm Self Aligning Pad with Ribbed Ball, 913-2
Roll over the image to zoom in
Key Features
- Product Type: Self Aligning Pad
- Weight: 40 g
- d1 (mm): 20 mm
- d2: M10
- d3 (mm): 10.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹852 (Incl. of all taxes)
₹722 + ₹130 GST (18%)
MRP was MRP ₹1,110
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Useful for clamping the job from top or bottom.
- The ball swivels and provides contact with no damage to uneven surfaces.
Application:
-
Used as stops, supports & thrust elements in jigs & fixtures. They can also be fitted to existing clamping elements.
Construction:
-
Body Steel Heat Treated - Ball Hardened.

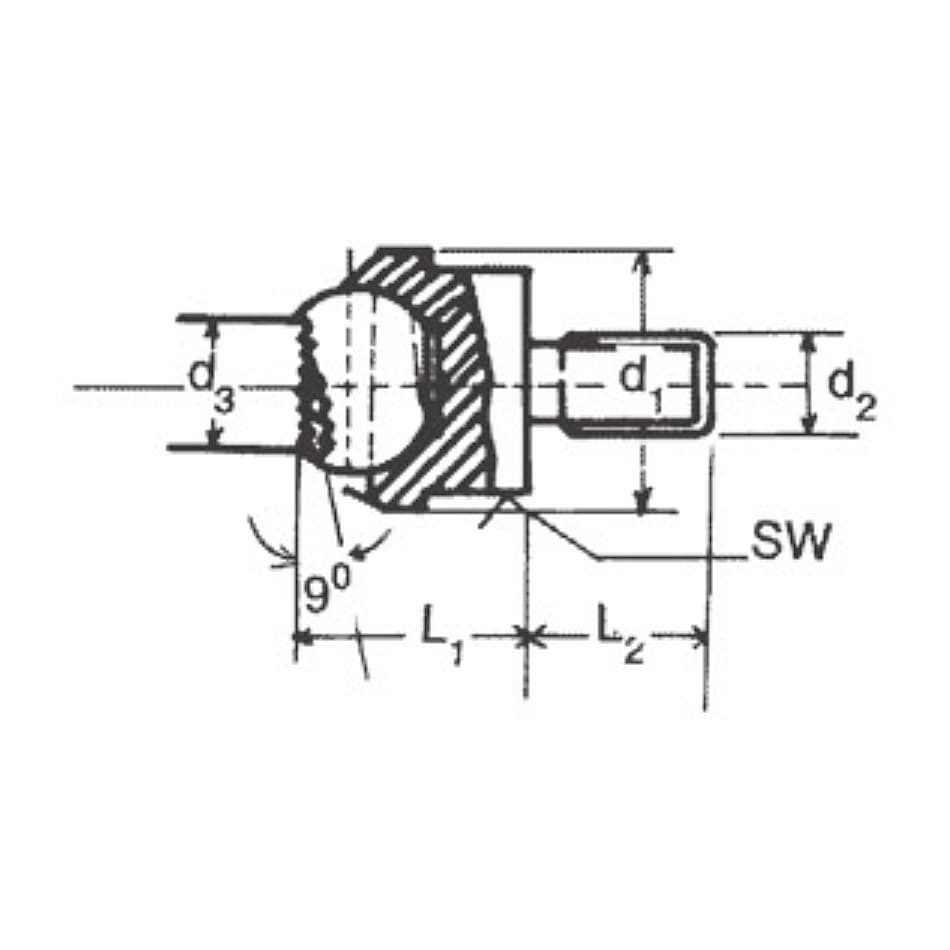

Specifications
| d1 (mm) | 20 mm |
|---|---|
| d2 | M10 |
| d3 (mm) | 10.5 mm |
| L1 (mm) | 18 mm |
| L2 (mm) | 10 mm |
| Ball (mm) | 16 mm |
| A/F SW (mm) | 17 mm |
| Max. Load Cap. kN (For static load only) | 25 kN |
| Finish | Black Oxidized |
