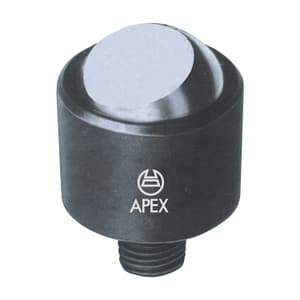

Apex 16 mm Self Aligning Pad with Plain Ball, 913P-4
Roll over the image to zoom in
Key Features
- Product Type: Self Aligning Pad
- Weight: 100 g
- d1 (mm): 30 mm
- d2: M16
- d3 (mm): 20 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,189 (Incl. of all taxes)
₹1,008 + ₹181 GST (18%)
MRP was MRP ₹1,551
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Useful for clamping the job from top or bottom.
- The ball swivels and provides contact with no damage to uneven surfaces.
Application:
- Used as stops, supports & thrust elements in jigs & fixtures. They can also be fitted to existing clamping elements.
Construction:
- Body Steel Heat Treated - Ball Hardened.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| d1 (mm) | 30 mm |
|---|---|
| d2 | M16 |
| d3 (mm) | 20 mm |
| L1 (mm) | 27 mm |
| L2 (mm) | 16 mm |
| Ball (mm) | 25 mm |
| A/F SW (mm) | 27 mm |
| Max. Load Cap. kN (FOr static load only) | 25 kN |
| Finish | Black Oxidized |
