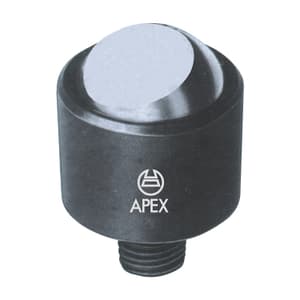

Apex 20 mm Self Aligning Pad (With Plain Ball), 913P-5
Roll over the image to zoom in
Key Features
- Product Type: Self Aligning Pad
- Weight: 100 g
- d1 (mm): 50 mm
- d2: M20
- d3 (mm): 34.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,824 (Incl. of all taxes)
₹2,393 + ₹431 GST (18%)
MRP was MRP ₹3,681
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Useful for clamping the job from top or bottom.
- The ball swivels and provides contact with no damage to uneven surfaces.
Application:
- Used as stops, supports & thrust elements in jigs & fixtures. They can also be fitted to existing clamping elements.
Construction:
- Body Steel Heat Treated - Ball Hardened.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| d1 (mm) | 50 mm |
|---|---|
| d2 | M20 |
| d3 (mm) | 34.5 mm |
| L1 (mm) | 35 mm |
| L2 (mm) | 20 mm |
| Ball (mm) | 40 mm |
| A/F SW (mm) | 11 mm |
| Max. Load Cap. kN (For static load only) | 165 kN |
| Finish | Black Oxidized |
