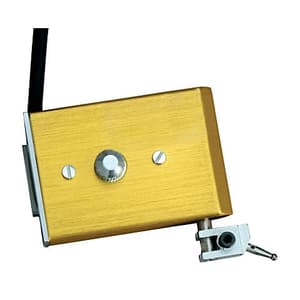

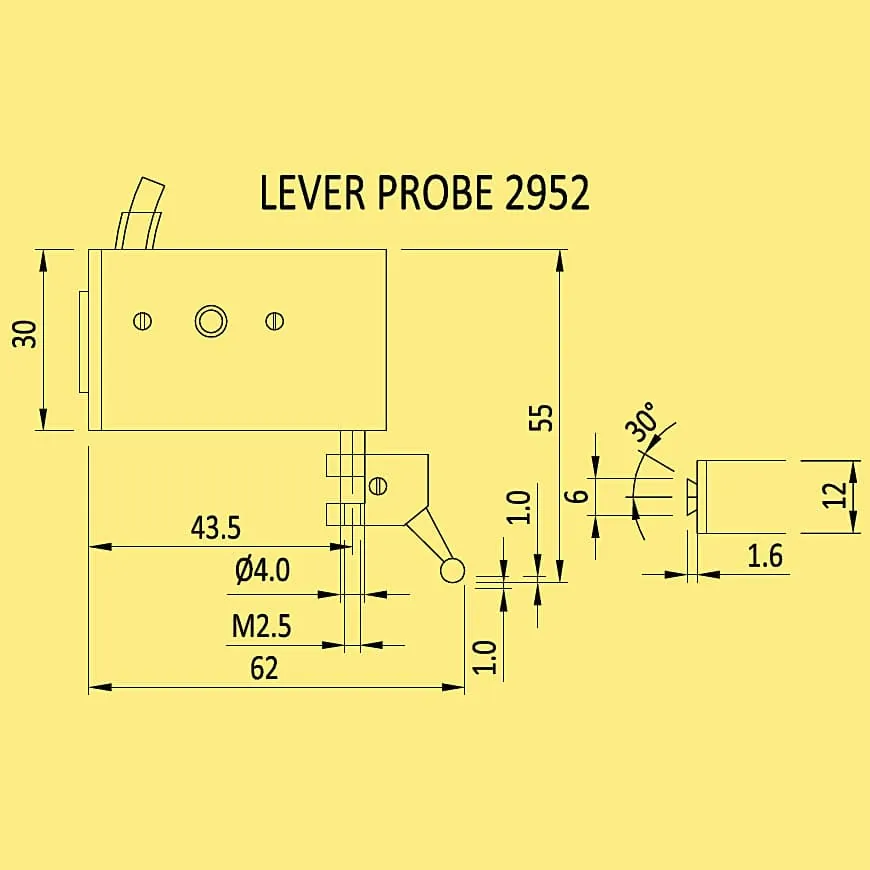

Baker 2 mm Electronic Lever Type Probe, 2952
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Measuring Travel: ± 1 mm
- Total Travel: 2 mm
- Linearity: ± 0.3%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹60,300 (Incl. of all taxes)
₹51,102 + ₹9,198 GST (18%)
MRP was MRP ₹62,320
Save 18%
3 Business Days
1
–
Download Product LeafletNot available
Download Baker CatalogueNot available
Download Baker CatalogueNot available
Highlights
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Travel | ± 1 mm |
|---|---|
| Total Travel | 2 mm |
| Linearity | ± 0.3% |
| Repeatability | 0.5 μm |
| Measuring force | 0.25 N |
| Pre-travel | Fixed |
| Environmental Protection (IEC 529) | IP 50 |
| Cable support spring | N/A |
| Reference temperature | 20° C |
| Cable | PVC |
| Connection adaptor | 5-pin, Male DIN plug (240°) |
| Application | Low Measuring Force |
| Plunger guide | Parallel Leaf spring |
| Contact Tip | 9 mm long stylus having M1.6 threads & Ø 2 mm tungsten carbige ball tip |
