Baker 3 mm Electronic Axial Probe, 2920
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Measuring Travel: ± 1 mm
- Total Travel: 3 mm
- Linearity: ± 0.3% (of total measuring range)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,772 (Incl. of all taxes)
₹10,824 + ₹1,948 GST (18%)
MRP was MRP ₹13,200
Save 18%
3 Business Days
1
–
Download Product LeafletNot available
Download Baker CatalogueNot available
Download Baker CatalogueNot available
Highlights
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Travel | ± 1 mm |
|---|---|
| Total Travel | 3 mm |
| Linearity | ± 0.3% (of total measuring range) |
| Repeatability | 0.02 μm |
| Measuring force | 0.6 N |
| Pre-travel | Variable |
| Application | Universal |
| Environmental Protection (IEC 529) | IP 64 |
| Cable support spring | Present |

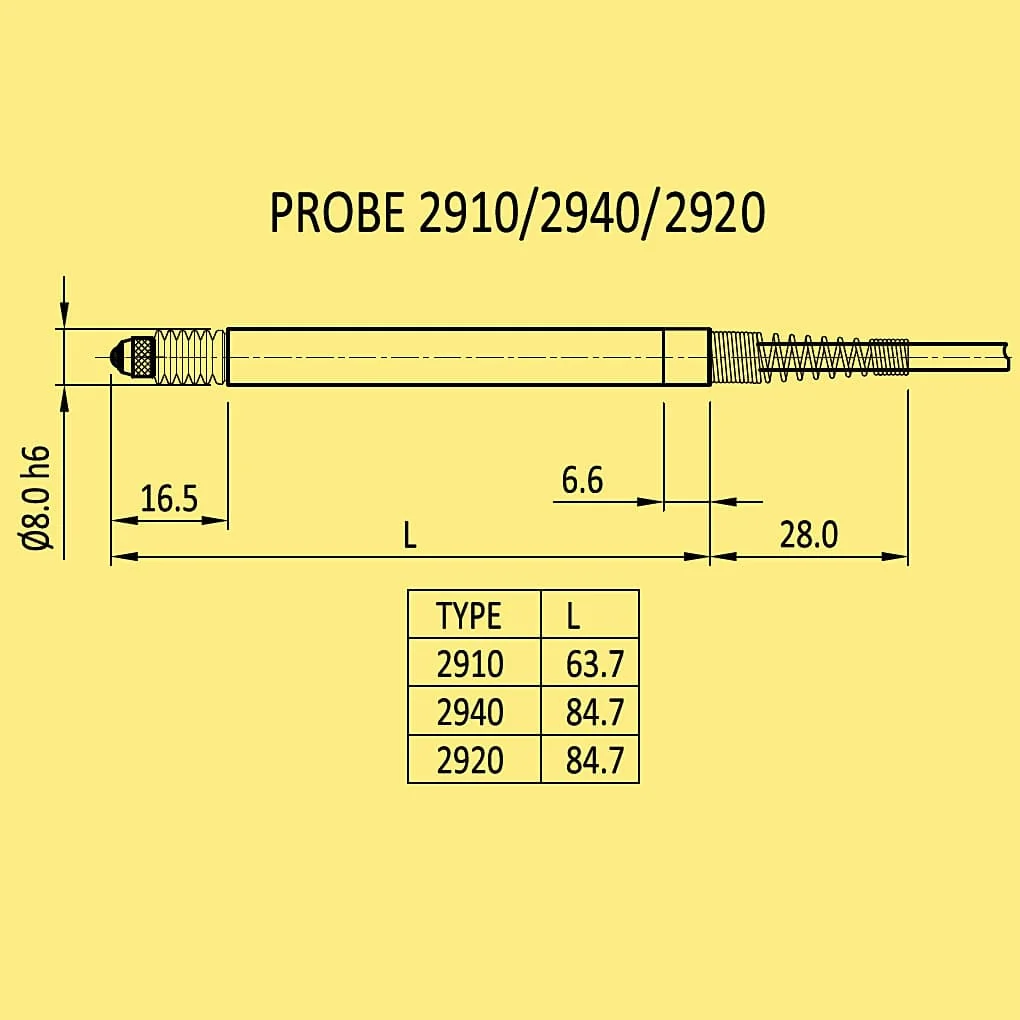

| Total Length (with support spring) | 112 mm |
| Reference temperature | 20° C |
| Connection adaptor | 5-pin, Male DIN plug (240°) |
| Cable | 2 m (Axial) Polyurethane |
| Sealing bellow | Viton with the metal clips |
| Plunger guide | Pre-loaded, caged linear ball bearing |
| Contact Tip | Tungsten Carbide Ball 3 mm Dia, M2.5 Thread |
| Probe Body | Hardened & ground stainless steel (55HRC) (Diameter 8h6) |
