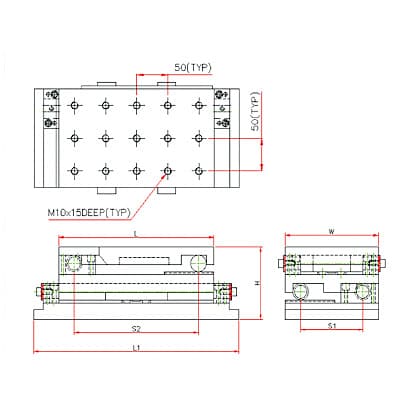

Crystal 150 x 100 x 125 mm Compound Sine Table, AA-6021
Roll over the image to zoom in
Key Features
- Product Type: Sine Table
- Length (mm): 150 mm
- Width (mm): 100 mm
- Height (mm): 125 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹32,286 (Incl. of all taxes)
₹27,361 + ₹4,925 GST (18%)
MRP was MRP ₹29,740
Save 8%
3 Business Days
1
–
Download Product LeafletNot available
Download Crystal CatalogueNot available
Download Crystal CatalogueNot available
Highlights
- Compound angle Sine tables are ideal for the precision grinding of multiple angles.
- They are made from high-quality steel & hardened and ground to 55 HRC 1 2 HRC.
- An angle can be set to within 1 5 seconds of a degree.
- Firm hinge clamps reduce the possibility of distortions.
- Flatness 0.005mm per 100 mm. The Center distance of the roller is within 0.005 mm.
- Tapped holes are provided on the topsides which facilitates clamping.
- Suitable for angle range from 0-45 degrees.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 150 mm |
|---|---|
| Width (mm) | 100 mm |
| Height (mm) | 125 mm |
| C. D. of Roller Angle (S1) | 70 |
| C.D. Compound Angle (S2) | 100 |
| Bottom Plate Length (L1) | 230 |
| Series | AA-602 |
