Crystal 150 x 120 x 85 mm Sine Table, AA-6011
Roll over the image to zoom in
Key Features
- Product Type: Sine Table
- Length (mm): 150 mm
- Width (mm): 120 mm
- Height (mm): 85 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,771 (Incl. of all taxes)
₹15,060 + ₹2,711 GST (18%)
MRP was MRP ₹16,370
Save 8%
3 Business Days
1
–
Download Product LeafletNot available
Download Crystal CatalogueNot available
Download Crystal CatalogueNot available
Highlights
Crystal” Brand AA-601 Sine Tables are complete sine systems for precision grinding & milling.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
- They are made from high-quality steel & hardened and ground to 55 HRC 1 2 HRC.
- An angle can be set to within 1 5 seconds of a degree.
- Firm hinge clamps reduce the possibility of distortions.
- Flatness 0.005mm per 100 mm. The Center distance of the roller is within 0.005 mm.
- Tapped holes are provided on the topsides which facilitates clamping.
- Suitable for angle range from 0-45 degrees.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

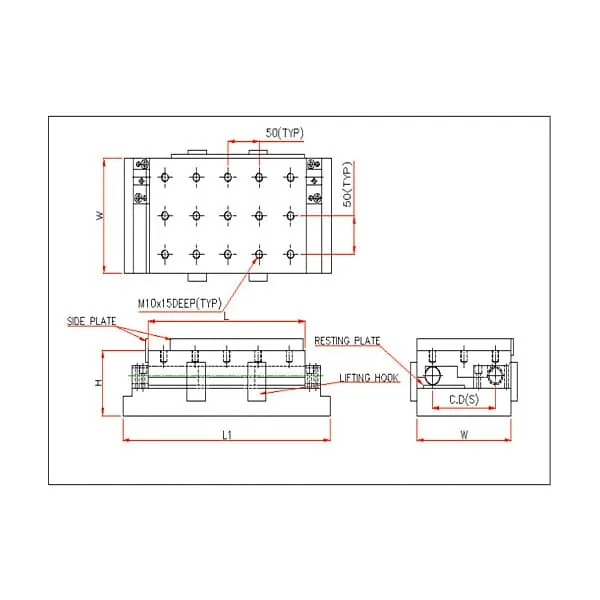

Specifications
| Length (mm) | 150 mm |
|---|---|
| Width (mm) | 120 mm |
| Height (mm) | 85 mm |
| C. D. mm | 70 mm |
| Bottom Plate Length (L1) | 230 |
| Series | AA-601 |
| Application | Industrial |
