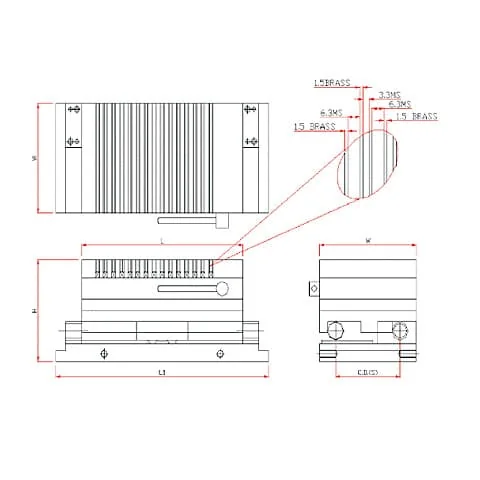

Crystal 150 x 120 x 135 mm Compound Sine Table, AA-6031
Roll over the image to zoom in
Key Features
- Product Type: Sine Table
- Length (mm): 150 mm
- Width (mm): 120 mm
- Height (mm): 135 mm
- C. D. of Roller: 70
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹23,036 (Incl. of all taxes)
₹19,522 + ₹3,514 GST (18%)
MRP was MRP ₹21,220
Save 8%
3 Business Days
1
–
Download Product LeafletNot available
Download Crystal CatalogueNot available
Download Crystal CatalogueNot available
Highlights
- Magnetic Sine tables are ideal for precision angle grinding & inspections.
- They are made from high-quality steel & the base plate contains hardened bits.
- An angle can be set to within 1 5 seconds of a degree.
- Firm hinge clamps reduce the possibility of distortions.
- Flatness 0.005mm per 100 mm.
- The Center distance of the roller is within 0.005 mm.
- A fine pitch chuck of 9.9mm with the laminated brass pole is provided for rigid clamping of small, medium & large components.
- I am Suitable for angle range from 0-45 degrees.
- V’ Blocks are so designed that clamps do not protrude over the sides.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 150 mm |
|---|---|
| Width (mm) | 120 mm |
| Height (mm) | 135 mm |
| C. D. of Roller | 70 |
| Bottom Plate Length (L1) | 230 |
| Series | AA-603 |
| Finishing | Polished |
