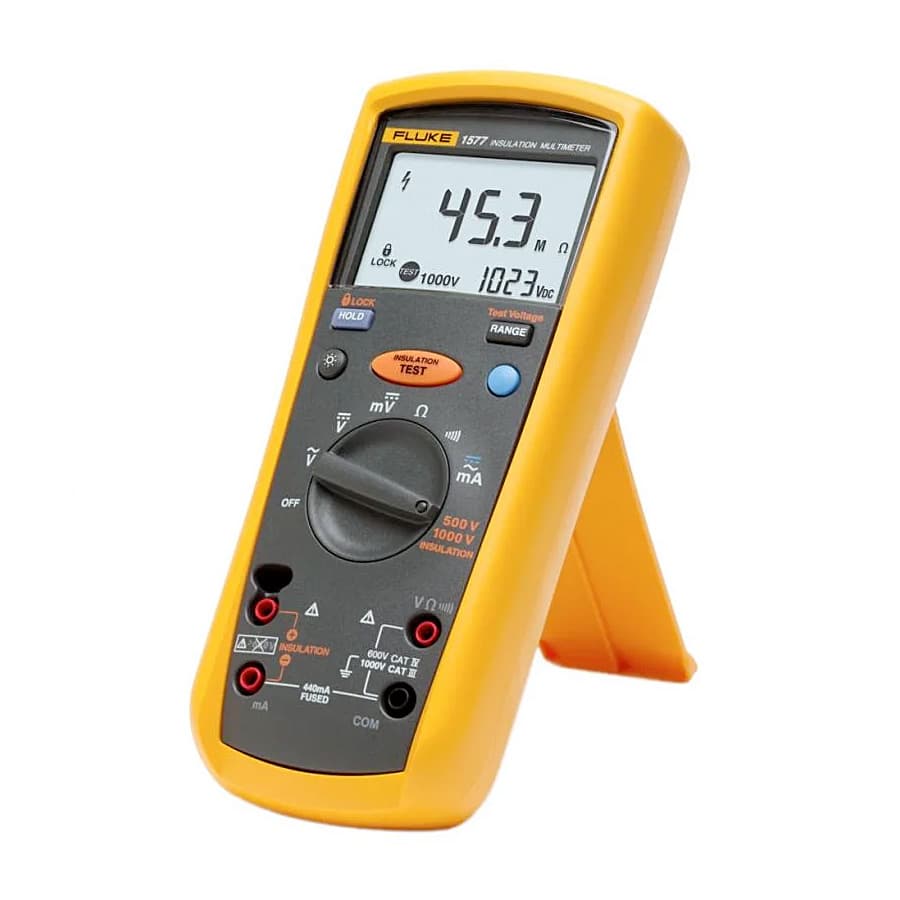

Fluke 1577 FC 600M Ohms / 1000V 2 In 1 True-RMS Insulation Multimeter
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 624 g
- Storage temperature: -40°C to +60°C
- IP rating: IP40
- Battery life alkaline: 1000 hours
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹77,356 (Incl. of all taxes)
₹65,556 + ₹11,800 GST (18%)
MRP was MRP ₹96,406
Save 32%
12 Business Days
1
90303900
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights
Two powerful tools in one The Fluke 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Whether you work on motors, generators, cables, or switchgear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
Features:
- Insulation test voltages 500 V, 1000 V
- Insulation test: 0.1 MΩ to 600 MΩ
- Auto discharge of capacitive voltage
- AC/DC Voltage
- DC millivolts
- AC/DC milliamps
- Resistance (0.1 Ω to 50 MΩ)
- Continuity
- Three-year warranty
- Remote probe, test leads, alligator clips
- Rugged, utility hard case
- Auto power off to save battery power
- True RMS
- Large display with backlight
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- CAT III 1000V, CAT IV 600V measurement category
- Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work.

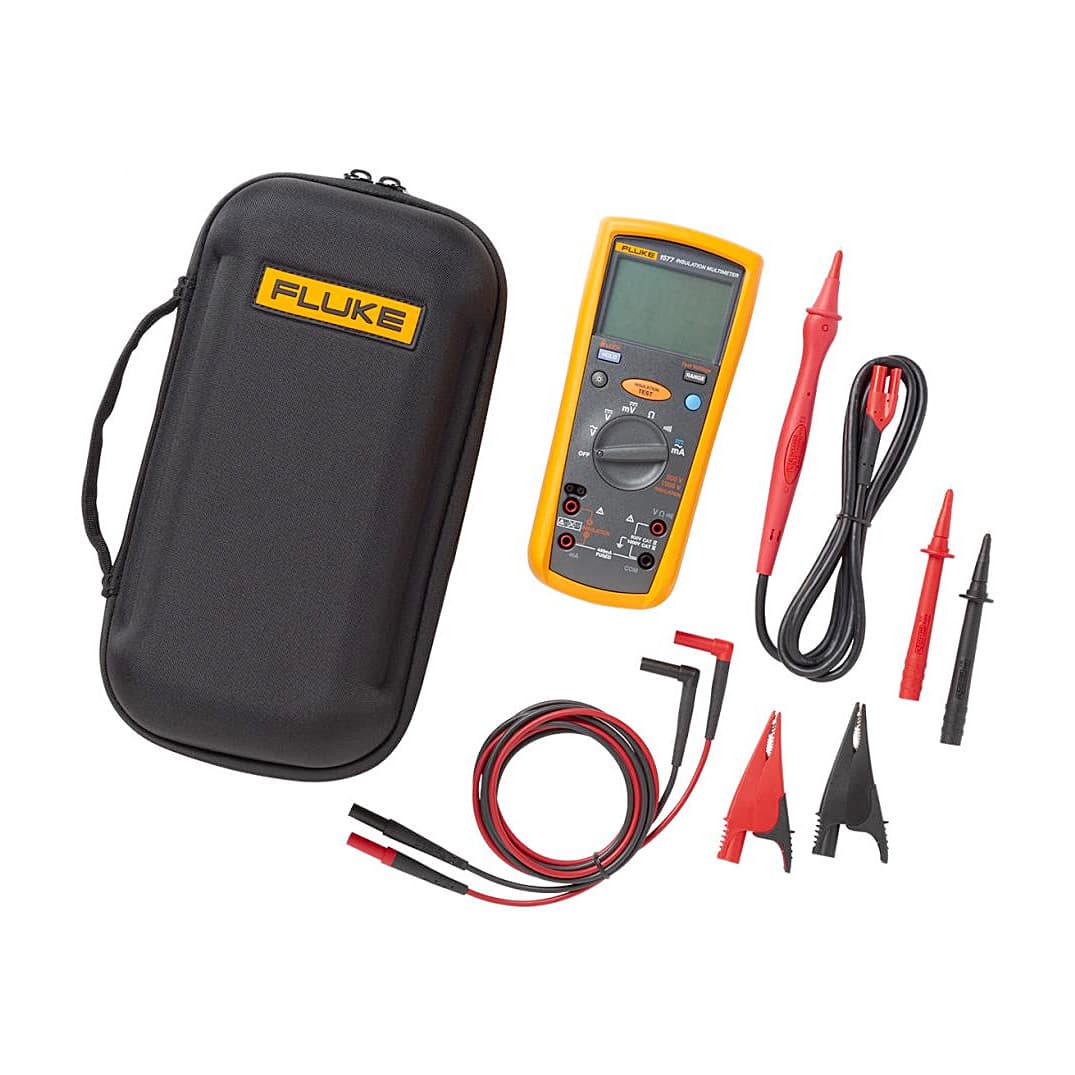

What's Included In This Package:
- Fluke 1577 Insulation Multimeter
- Remote probe
- Test leads
- Alligator clips
- Hard case
- Four AA alkaline batteries
- Quick reference guide
- CD rom with manual
Specifications:
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.2%+2) | |
| Maximum resolution | 0.001 V | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(2%+3) | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 400 mA |
| Amps accuracy | ±(1.0%+2) | |
| Maximum resolution | 0.01 mA | |
| Current AC | Maximum amps | 400 mA |
| Amps accuracy | ±(2.0%+2)* | |
| Maximum resolution | 0.01 mA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(1.2%+2) | |
| maximum resolution | 0.1Ω | |
| Insulation Test | ||
| Minimum test current @ 1kΩ/V | 1 mA | |
| Test voltages | 500, 1000 V | |
| Maximum resistance per test voltage | 50 V | |
| 100 V | ||
| 250 V | ||
| 500 V | ||
| 1000 V | 600 MΩ | |
| Maximum resolution per test voltage | 50 V | 0.01 MΩ |
| 100 V | 0.01 MΩ | |
| 250 V | 0.1 MΩ | |
| 500 V | 0.1 MΩ | |
| 1000 V | 0.1 MΩ | |
| Accuracy per test voltage | 50 V | ±(3% + 5) |
| 100 V | ±(3% + 5) | |
| 250 V | ±(1.5% + 5) | |
| 500 V | ±(2.0% + 5) | |
| 1000 V | ±(2.0% + 5) | |
| Environmental Specifications | ||
| Humidity (without condensation) | 0% - 95% (10°C – 30°C) 0% - 75% (30°C – 40°C) 0% - 40% (40°C – 55°C) |
|
| Safety Specifications | ||
| General | IEC 61010-1: Pollution Degree 2 | |
| Measurement | IEC 61010-2-033: CAT IV 600V / CAT III 1000V | |
| Mechanical and General Specifications | ||
| Battery life alkaline | Insulation test use | Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operating temperature | –20°C to +55°C |
|---|---|
| Storage temperature | -40°C to +60°C |
| Safety Specifications (General) | IEC 61010-1: Pollution Degree 2 |
| Safety Specifications (Measurement) | IEC 61010-2-033: CAT IV 600V / CAT III 1000V |
| Size | 203 x 100 x 50 mm (with holster) |
| Warranty | 3 years |
| IP rating | IP40 |
| Battery life alkaline | 1000 hours |
