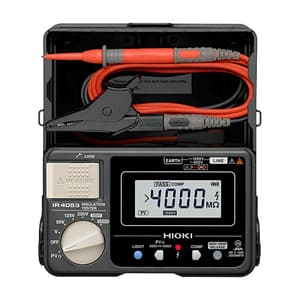

Hioki 1000V - 4000M Ohms Digital Insulation Resistance Tester, IR4053-10

Shop all Hioki

SKU: ME.EL.IN.00136

Model: IR4053-10

Roll over the image to zoom in

Visit Hioki Store

Key Features

  • Product Type: Insulation Testers
  • Weight: 600 g
  • Rated Output Voltage: 1000 V DC
  • Overload Protection: 1200 V AC (10 sec.)
See all product information

ToolBuy Benefits

₹35,047 (Incl. of all taxes)

₹29,701 + ₹5,346 GST (18%)

MRP was MRP ₹34,942

Save 15%

5 Business Days

1

–

Download Product LeafletNot available
Download Hioki CatalogueNot available

Highlights

The Hioki IR4053 features a photovoltaic resistance function for measuring solar power systems, allowing you to measure insulation resistance accurately without shorting strings of photovoltaic cells and without risking accidents such as arc discharge events, even as the system continues to generate electricity during daylight hours.


Key Features:

  • Safely and accurately measure PV insulation resistance even while generating solar power.
  • Built-in PV dedicated function, display measurements in 4 seconds.
  • Five ranges (50/125/250/500/1000V) built in for normal insulation resistance measurement.
  • Built-in 1000 VDC voltage measurement for open voltage tests of PV systems that support 1000V.
  • Built-in comparator function.
  • Drop proof design withstands drop onto concrete from a height of 1 meter.
  • DC voltage range: 4.2 V (0.001 V resolution) to 1000 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt., (Ranges in excess of 1000 V are not guaranteed for accuracy.)
  • AC voltage range: 420 V (0.1 V resolution)/600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., (Ranges in excess of 600 V are not guaranteed for accuracy.)
  • Display: Semi-transmissive FSTN LCD with back lighting, Backlight.
  • Response time: Insulation resistance range: 1 second, PVΩ function: 4 seconds (based on in-house tests).
  • Other functions: Live circuit indicator, automatic electric discharge, automatic DC/AC detection, comparator, drop proof, auto power save.


PVΩ Measurement (Accuracy guaranteed: 1 Year)

Rated output voltage 500 V DC 1000 V DC
Effective maximum indicated value 2000 MΩ 4000 MΩ
Measuring range/ Accuracy 0.200 to 500 MΩ / ±4% rdg.
501 to 2000 MΩ / ±8% rdg.		 0.200 to 1000 MΩ / ±4% rdg.
1010 to 4000 MΩ / ±8% rdg.
Other measuring range / Accuracy 0 to 0.199 MΩ / ±2% rdg. ±6 dgt.


Insulation Resistance Measurement (Accuracy guaranteed: 1 year)

Rated output voltage 50 V DC 125 V DC 250 V DC 500 V DC 1000 V DC
Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
Accuracy
1st effective measuring range MΩ		 ±4% rdg.
0.200 to 10.00		 ±4% rdg.
0.200 to 25.0		 ±4% rdg.
0.200 to 50.0		 ±4% rdg.
0.200 to 500		 ±4% rdg.
0.200 to 1000
Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
Overload protection 600 V AC (10 s) 600 V AC (10 s) 600 V AC (10 s) 600 V AC (10 s) 1200 V DC (10 s)


What are the problems with conventional insulation testers?

Problems with conventional insulation testers and the 2 measurement methods determined by recognized guidelines:

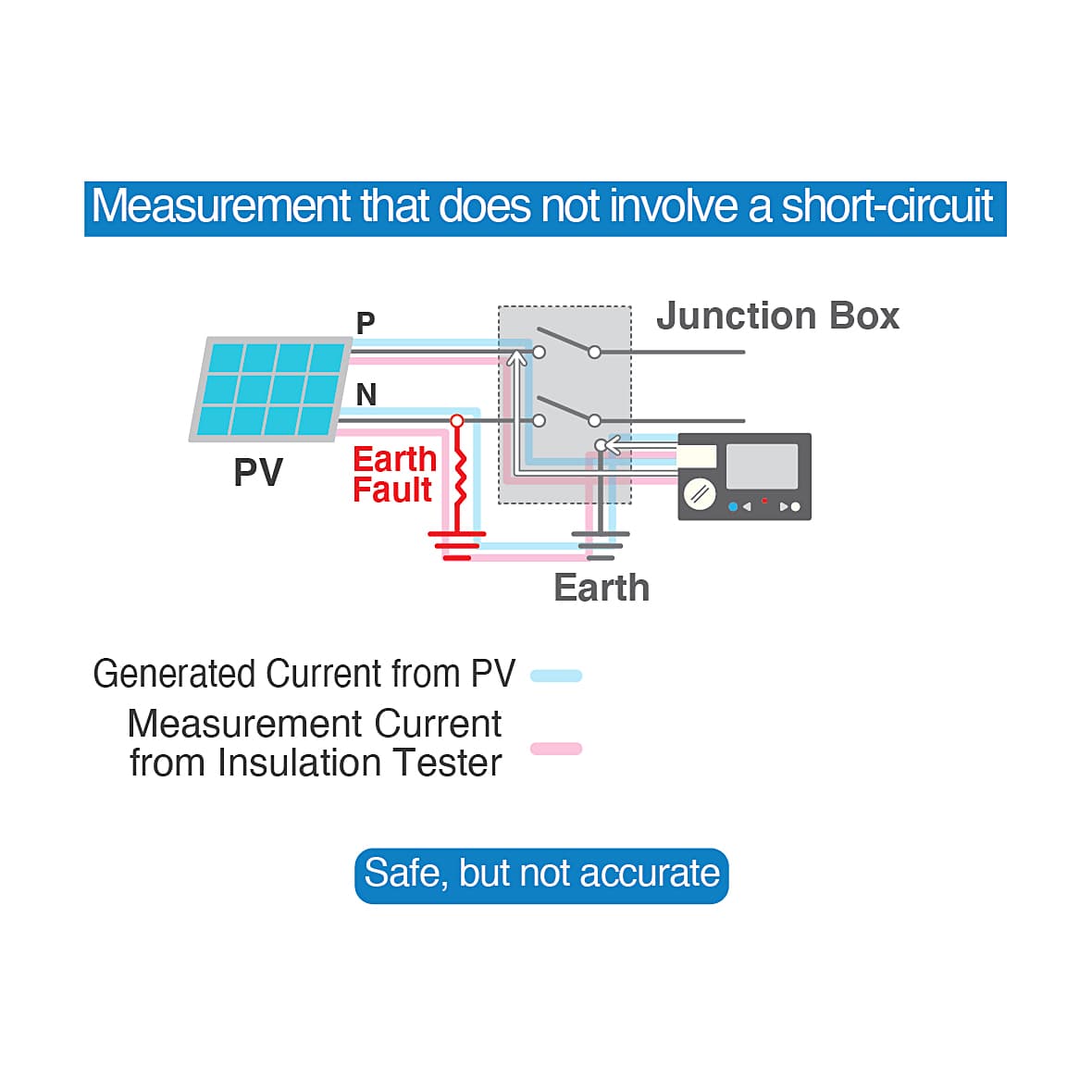

Measurement that does not involve a short-circuit

This is not as dangerous, but depending on the circuit status, the measurement may be affected by the generating PV and may produce a result different from the actual insulation resistance.

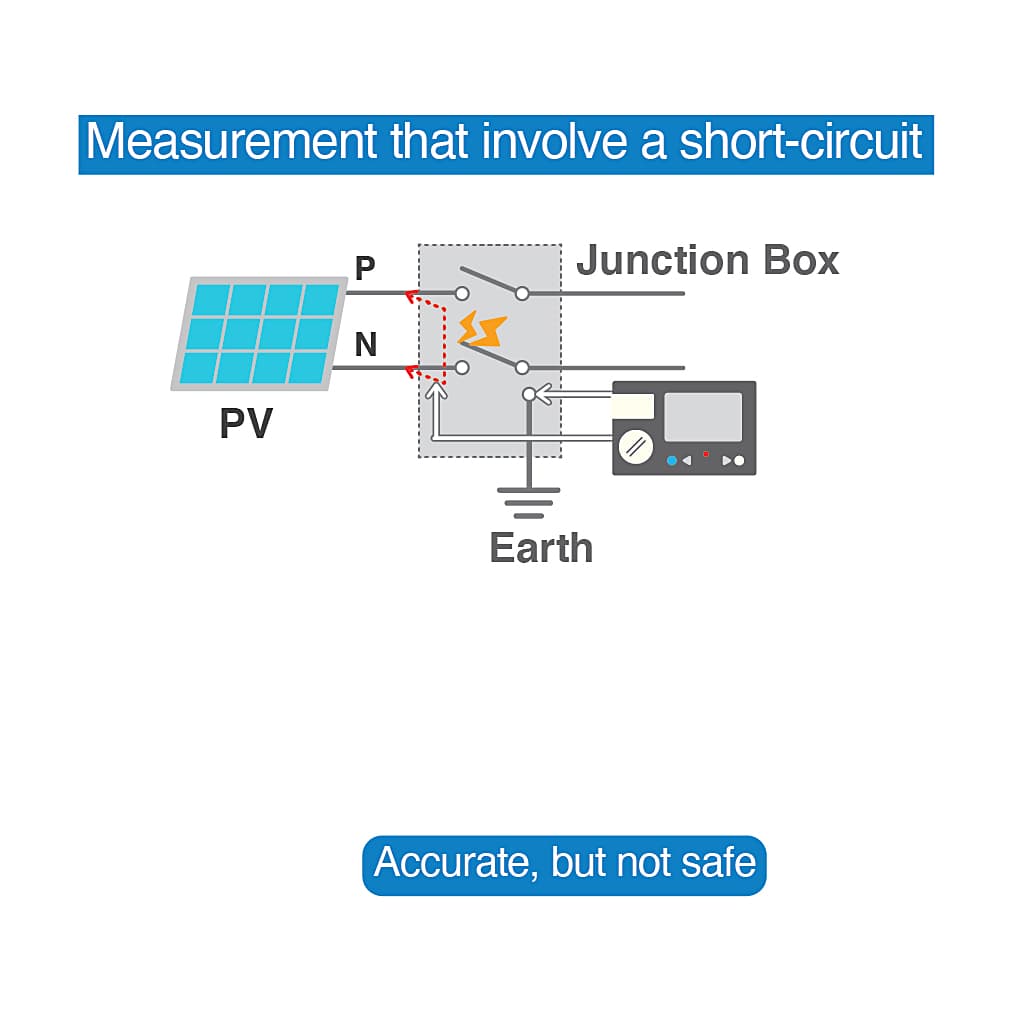

Measurement that involve a short-circuit

To accurately measure a generating PV, one needs to short the measured circuit, which requires that a short-circuit switch be separately installed. Short-circuiting will also pose the danger of creating an arc. In addition, to minimize hazards, it is recommended that the testing be conducted at night.


What's Included In This Package:

  • 1x Test Lead (L9787)
  • 1x Neck strap
  • 1x Instruction manual
  • 4x AA alkaline batteries (LR6)



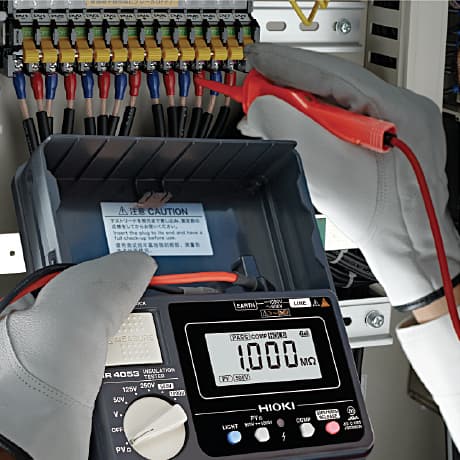

Measurement not affected by generating PV

The IR4053, which was designed for PV, can accurately measure insulation resistance without being affected by the generating PV.


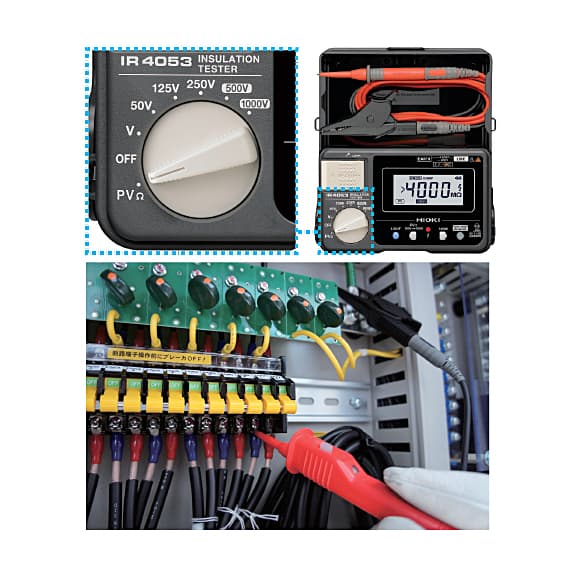

Accurate and safe measurement without creating shorts

Normally, to accurately measure the insulation resistance of a generating PV, one needs to short the measured circuit. With the IR4053's PV measurement mode, short-circuiting is not necessary.


Displays measurement in 4 seconds

The IR4053 displays the measured value just 4 seconds after starting measurement. After the first display, the displayed value is updated each second. Comfortably carry out swift measurements.


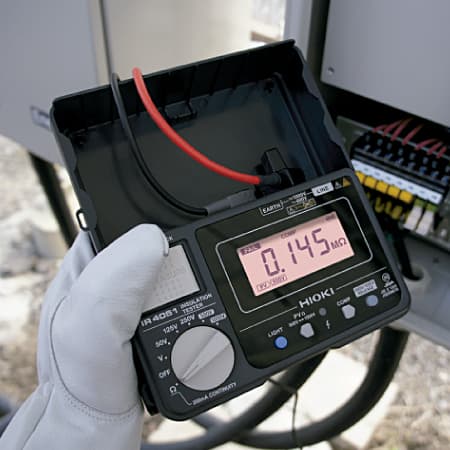

Comparator function/ Red light

You can compare measurements to any set values. If the result does not meet the set value, the red light will warn of nonconformance.

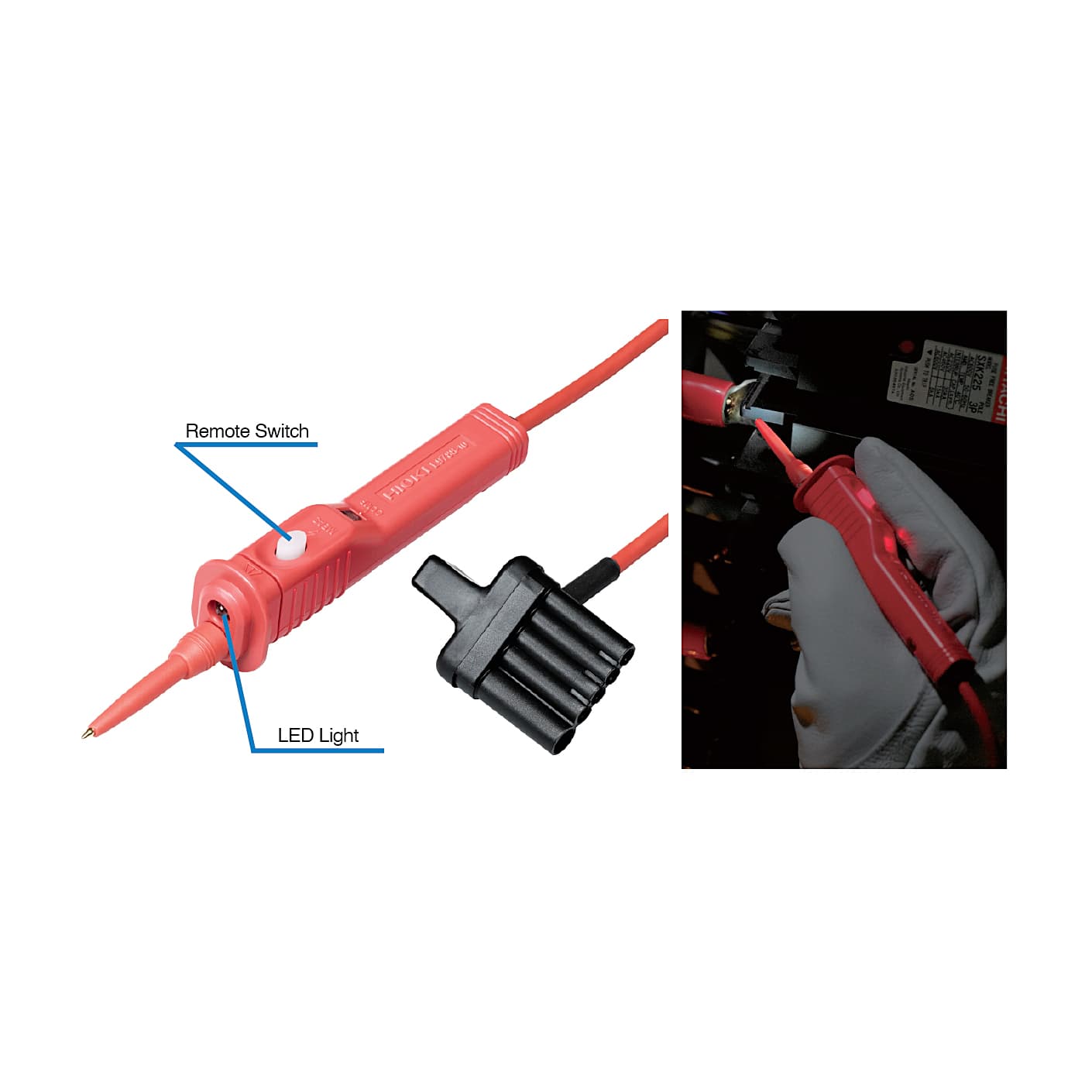

Test lead with remote switch

This allows you to apply output voltage with the switch in your hand, work with a light, and see the result of the comparator with an LED.


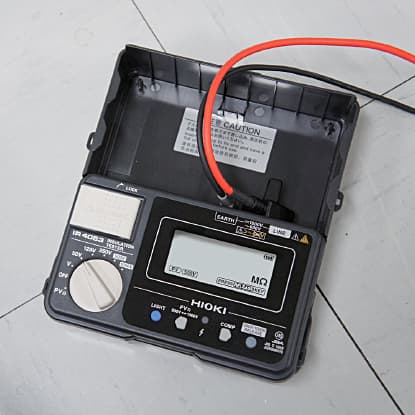

Drop proof

The sturdy design will not break even if dropped onto concrete from 1 m, so you can use it with peace of mind.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Hioki 1000V - 4000M Ohms Digital Insulation Resistance Tester, IR4053-10
Rated Output Voltage1000 V DC
Effective Maximum Indicated Value4000 M Ohms
Accuracy 1st Effective Measuring Range±4% Scale Length. 0.200 to 1000 M Ohms
Lower Limit Resistance1 M Ohms
Overload Protection1200 V AC (10 sec.)
Power Supply4x AA alkaline batteries (LR6), Continuous operating time: Approx. 20 hours (based on in-house tests)
Dimensions (mm)159 mm (Width) x 177 mm (Height) x 53 mm (Depth)
Dimensions (Inches)6.26 inch (Width) x 6.97 inch (Height) x 2.09 inch (Depth)

More from Product Type

Insulation Testers

More from Hioki

Hioki Electrical Power Testing
