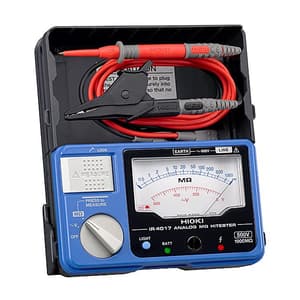

Hioki 500V - 1000M Ohms Single-Range Analog Insulation Resistance HiTester, IR4017
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 610 g
- Rated output voltage: 500 V DC
- Overload protection: 600 V AC (10 sec.)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,397 (Incl. of all taxes)
₹14,743 + ₹2,654 GST (18%)
MRP was MRP ₹17,345
Save 15%
5 Business Days
1
9030
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4017-20 is a single-range, 500 V/1000 MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing. CAT III 600 V
Key Features:
- Single range testing voltage of 500 V
- Test insulation resistance up to 1000 MΩ
- Built tough to withstand a 1-meter drop onto a concrete floor
- Bright LED luminous scale
- Check for live circuits and battery status

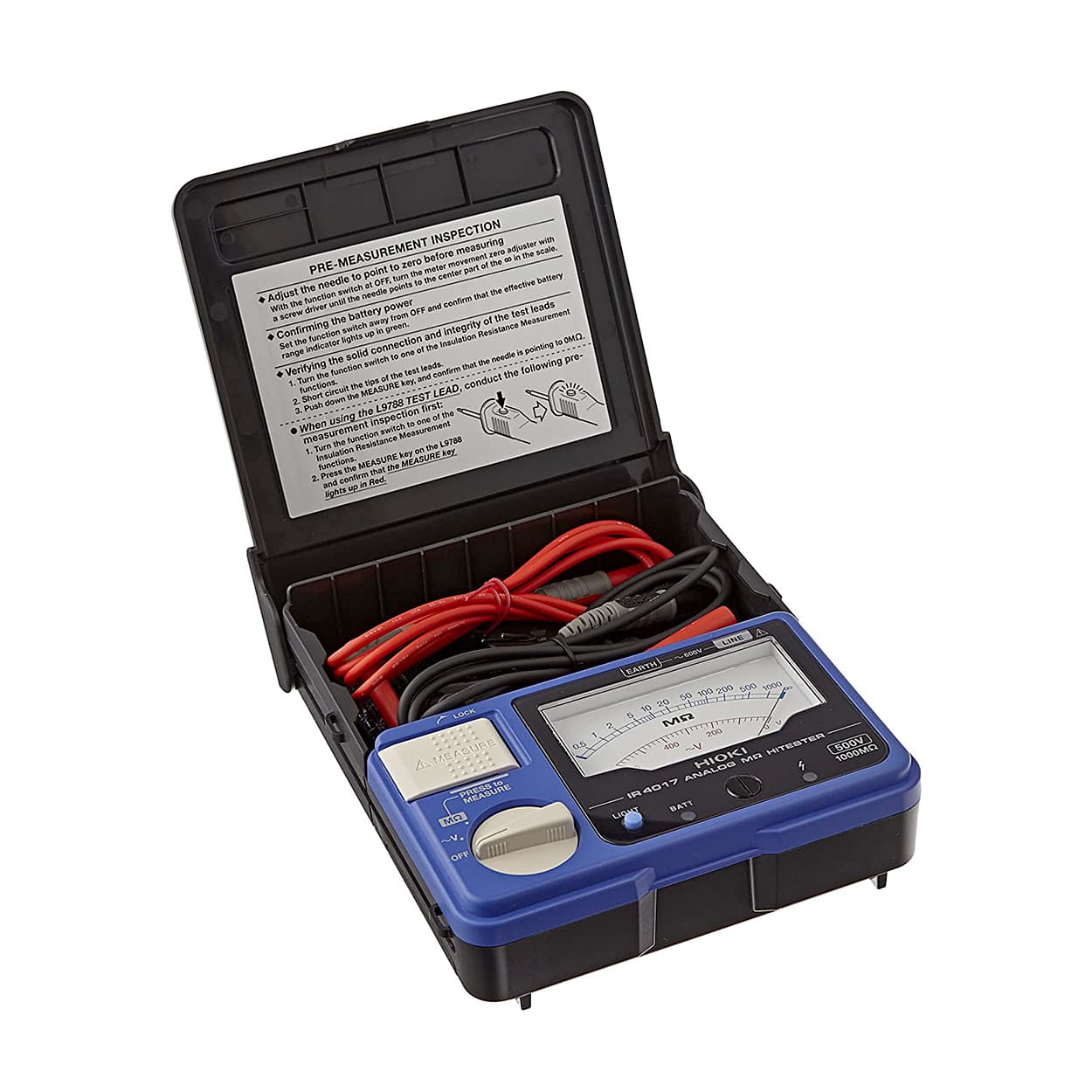

- Integrated hard case for quick and easy storage without disconnecting the leads

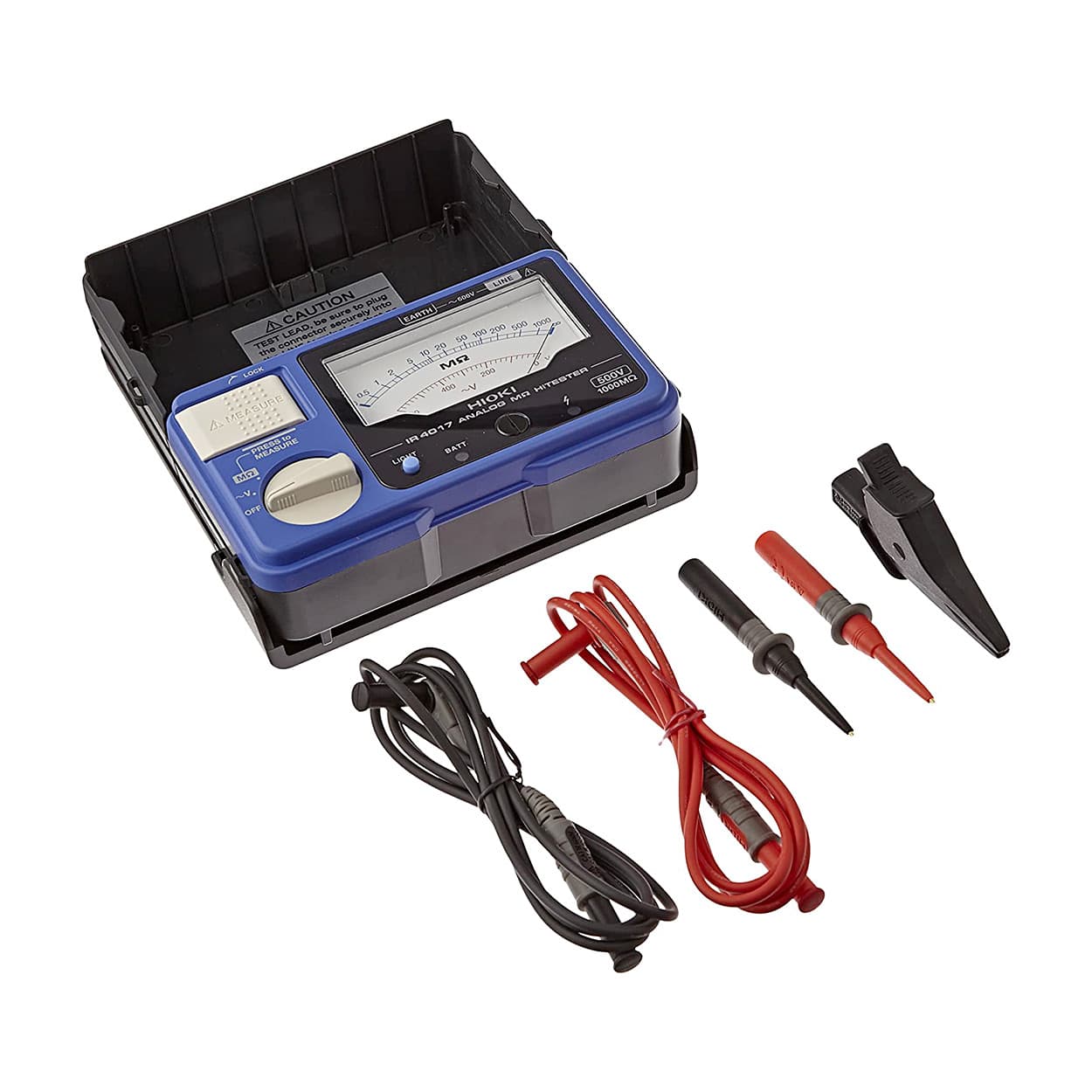

What's Included In This Package:
- 1x Test Lead L9787
- 4x LR6 (AA) alkaline batteries
- 1x Instruction manual
- 1x Shoulder strap
|
|
|
Robust, damage-resistant designThese instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m. Difficult to damage, this insulation tester is ideal for use in the field. |
|

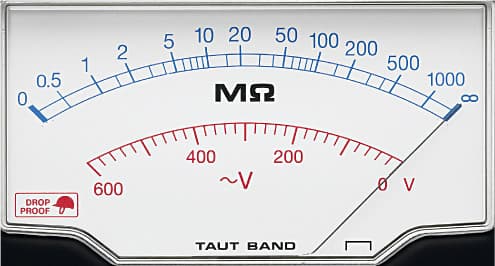

White LED lighting that’s easy to read in dim locations in the fieldThe scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location. |
|
Continuous monitoring of battery lifeYou can keep track of remaining battery life since it’s shown on the LED, eliminating the need to worry about sudden loss of battery power in the field. |
|
Measurement switch designed for outstanding ease of useThe instrument’s measurement switch can be operated with just the thumb. Press for a single measurement or lift up for continuous measurement of insulation resistance. |
|
Remote control to start and stop insulation resistance measurement from the leadsBy using switch-equipped measurement leads, you can start and stop insulation resistance measurement remotely. There’s also a handy light for improved convenience when working in dim locations. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Rated output voltage | 500 V DC |
|---|---|
| Effective maximum indicated value | 1000 MO |
| Accuracy 1st effective measuring range | ±2 % of scale length, 1 M to 500 MO |
| Lower limit resistance | 0.5 MO (measurement resistance value to maintain testing voltage) |
| Overload protection | 600 V AC (10 sec.) |
| AC voltage range | 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kO or more input resistance |
| Other functions | Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge |
| Power supply | LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load) |
| Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead) |
