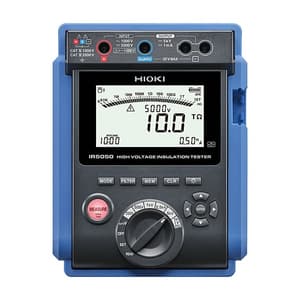

Hioki 2000V DC High Voltage Insulation Tester, IR5050
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 1.7 kg
- Max. Rated Voltage to Terminals: 1000 V (AC) / 2000 V (DC)
- Max. Rated Voltage to Ground: 1000 V (CAT IV), 600 V (CAT III)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,79,268 (Incl. of all taxes)
₹1,51,922 + ₹27,346 GST (18%)
MRP was MRP ₹1,78,732
Save 15%
5 Business Days
1
–
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
The IR5050 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ.
- Ideal for high-voltage insulation resistance testing: Best suited for high-voltage insulation resistance testing, the IR5050 is equipped with advanced measurement technology that guarantees stable readings across a range of applications, including high-voltage cables, transformers, and motors. It also features an intuitive rotary knob for straightforward operation, enhancing its versatility and user-friendliness for diverse industrial uses.
- Advanced insulation diagnostic features: The IR5050 offers specialized insulation diagnostic functions such as step and ramp voltage testing. It automatically displays results in indices like PI (Polarization Index), DAR (Dielectric Absorption Ratio), and DD (Dielectric Discharge), streamlining the diagnostic process.
- Streamlined data management and reporting: Enhancing efficiency, the IR5050 comes with data memory, and options for wireless and USB connectivity. It facilitates real-time graph trending on mobile devices and enables quick report generation, simplifying data handling and documentation.
Key Features:
- Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
- Wide testing voltage range, up to 5000 V from 250 V DC
- Wide measurement insulation range, up to 10 TΩ
- Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
- Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
- Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
- Compact and lightweight, equipped with an IP65-rated carrying case
Measurement parameters:
- Insulation resistance
- Leakage current
- Voltage
- Capacitance (DD function)
Functions:
- Insulation diagnosis: PI, DAR, DD, SV, Ramp, Timer
- Others: Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off.
Insulation resistance measurement
| Test voltage range | DC 250 V to 5.20 kV DC | ||||
|---|---|---|---|---|---|
| User-set test voltage | 250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments | ||||
| Test voltage preset | 250 V | 500 V | 1000 V | 2500 V | 5000 V |
| Guaranteed accuracy range (1) | 0.00 MΩ?2.50 GΩ ±5% rdg ±5 dgt | 0.00 MΩ?5.00 GΩ ±5% rdg ±5 dgt | 0.00 MΩ?10.0 GΩ ±5% rdg ±5 dgt | 0.00 MΩ?25.0 GΩ ±5% rdg ±5 dgt | 0.00 MΩ?50.0 GΩ ±5% rdg ±5 dgt |
| Guaranteed accuracy range (2) | 2.51 GΩ?500 GΩ ±20% rdg | 5.01 GΩ?1.00 TΩ ±20% rdg | 10.1 GΩ?2.00 TΩ ±20% rdg | 25.1 GΩ?5.00 TΩ ±20% rdg | 50.1 GΩ?10.00 TΩ ±20% rdg |
| Rated current | 1 mA to 1.2 mA | ||||
| Short-circuit current | 2 mA or less | ||||
| Possible number of measurements | 200 times or more on one set of fully-charged batteries |
Leakage current measurement
| Measurement range (auto) | 10 nA | 100 nA | 1000 nA | 10 μA | 100 μA | 1 mA |
|---|---|---|---|---|---|---|
| Display range | 0.00 nA to 9.99 nA | 9.0 nA to 99.9 nA | 90 nA to 999 nA | 0.90 μA to 9.99 μA | 9.0 μA to 99.9 μA | 90 μA to 999 μA (*3) 0.90 mA to 3.00 mA (*4) |
| Resolution | 0.01 nA | 0.1 nA | 1 nA | 0.01 μA | 0.1 μA | *3: 1 μA *4: 0.01 mA |
Voltage Measurement
| Guaranteed accuracy range | 30 V to 1,000 V AC (45 Hz to 65 Hz), ±10 V to ±2,000 V DC |
|---|---|
| Accuracy | ±3% rdg. ±3 dgt. |
| Input resistance | 500 kΩ or more (DC, 45 Hz to 65 Hz) |
| Overload protection | 1100 V AC (1 min., between +/- terminals) 2200 V DC (1 min., between +/- terminals) |
Capacitance measurement
Capacitance is automatically measured after insulation resistance measurement is over (not measured if output voltage is 250 V or less)
| Accuracy | ±10% rdg. ±5 nF (guaranteed accuracy range: 10.0 nF to 25.0 µF) | ||
|---|---|---|---|
| Measurement range | 100 nF | 1000 nF | 10 μF |
| Display range | 0.0 nF to 99.9 nF | 100 nF to 999 nF | 1.00 μF to 9.99 μF (*5) 10.0 μF to 25.0 μF (*6) |
| Resolution | 0.1 nF | 1 nF | *5: 0.01 μF *6: 0.1 μF |

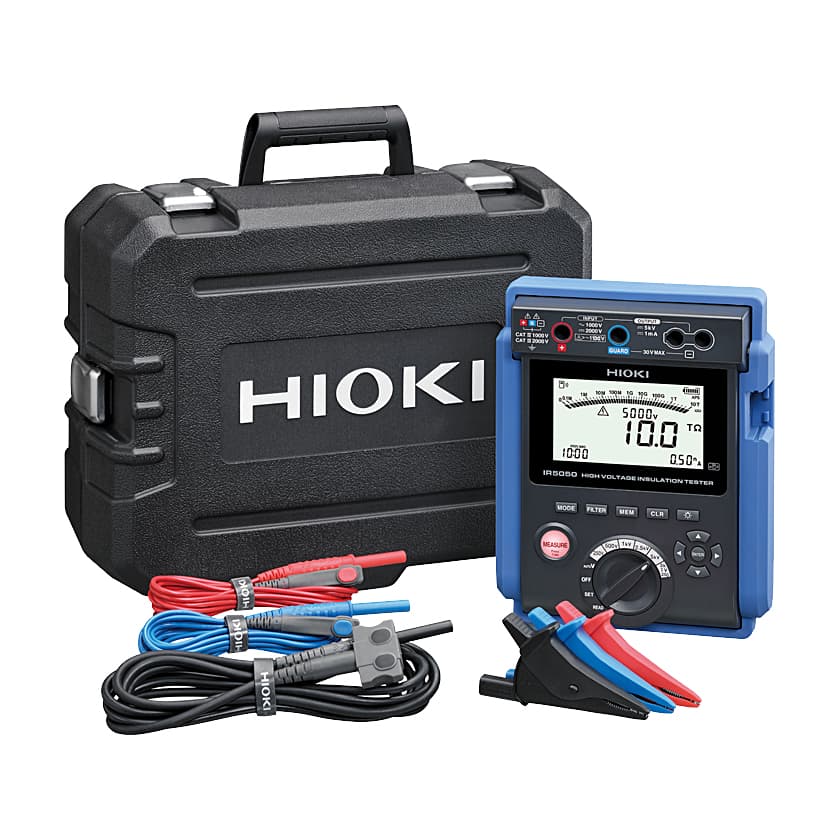

What's Included In This Package:
- 1x Test lead L9850-01
- 1x Test lead L9850-02
- 1x Test lead L9850-03
- 1x Alligator clip L9851-01
- 1x Alligator clip L9851-02
- 1x Alligator clip L9851-03
- 1x Carrying Case C0212
- 8x LR6 Alkaline battery
- 1x Instruction manual
- 1x Operating precautions
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Rated Voltage to Terminals | 1000 V (AC) / 2000 V (DC) |
|---|---|
| Max. Rated Voltage to Ground | 1000 V (CAT IV), 600 V (CAT III) |
| Operating Temperature & Humidity Range | -20°C to 50 °C (*1) (No Condensation) |
| Storage Temperature & Humidity Range | -25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation) |
| Dustproof/waterproof | IP40 (with protector attached, excluding terminals) / IP65 (Carrying Case C0212) |
| Standards | EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation Resistance Tester) |
| Power Supply | LR6 (AA) alkaline battery × 8 / HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8 |
| Continuous Operating Time | Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed & using wireless communication |
| Dimensions (WxHxD) | 195 x 254 x 89 mm (7.68 x 10 x 3.50 inch) |
