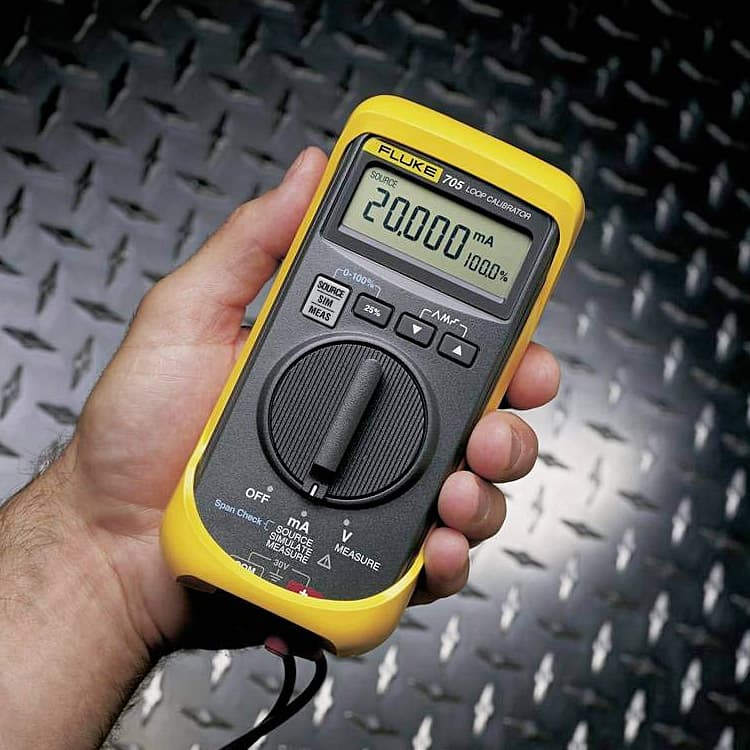

Fluke 705 28V / 24 mA Loop Calibrator

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Includes “span check” for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 - 20 mA or 4 - 20 mA default start up modes
• Comes with a protective yellow holster with test lead storage and a three year warranty

Features:

• Powerful loop calibrator that provides a very cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
• Provides simultaneous mA and % readout for quick, easy interpretation of readings.
• Delivers mA accuracy of 0.02%
• Features push button 25% steps for fast, easy linearity checks.

What's Included In This Package:

• Fluke 705 Loop Calibrator
• C10 protective yellow holster with Flex-Stand™
• (1 set) AC70A Alligator Clips
• Instruction sheet
• (1 pair) TL75 safety-designed test leads
• NIST- traceable calibration report and data
• Quick Reference Guide
• 3-year warranty

Specifications:

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
