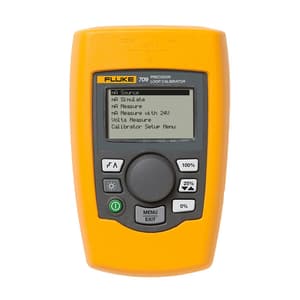

Fluke 709 28V / 24 mA Precision Loop Calibrator

The Fluke 709 mA loop calibrator is designed to reduce the time it takes to measure or source voltage or current and power up a loop and still produce high-quality results. The Fluke 709 is built around a user friendly interface with a quick-set rotary encoder knob and best in class accuracy at 0.01% of reading.

It features a protective holster that fits easily in a technician's hand and a large backlit display that is easy to read, even in dark, cramped work areas. So it's a great choice anywhere you need a compact, rich featured precision loop calibrator.

Features:

• mA precision loop calibrator with best-in-class accuracy at 0.01% reading
• Provides intuitive user interface with quick-set rotary encoder knob for fast setup
• Includes built in selectable 250 Ω resistor for HART communication
• Features 24 V DC loop power with mA Measure Mode (-25% to 125%)
• Requires only simple two wire connection for all measurements.

Other Useful Features:

• Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
• Features a compact rugged design and runs on 6 standard AAA batteries
• Provides Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
• Offers variable step and ramp time in seconds
• Provides adjustable span selection (0 to 20 mA or 4 to 20 mA)
• Includes valve test functionality (simulates defined mA values with % keys).

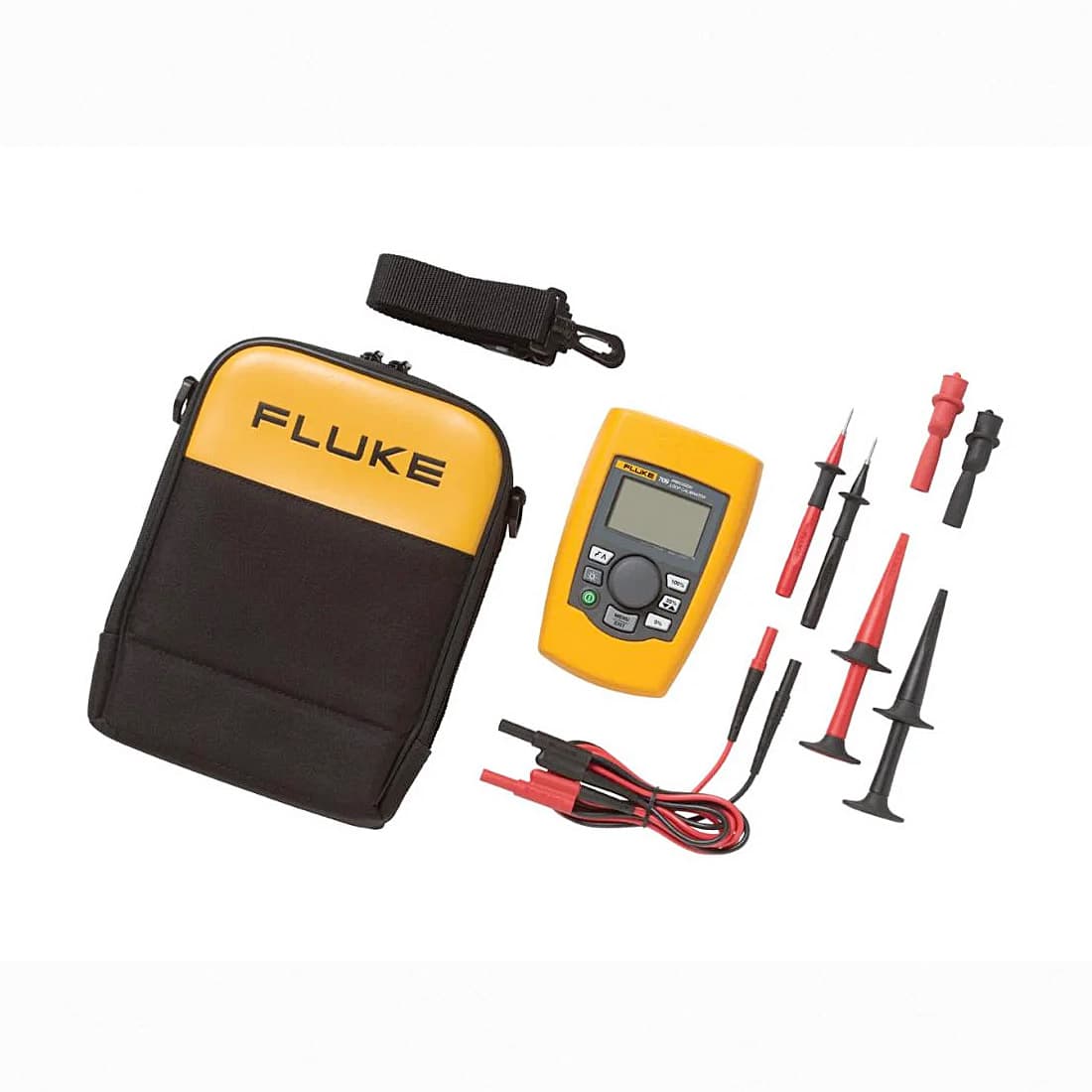

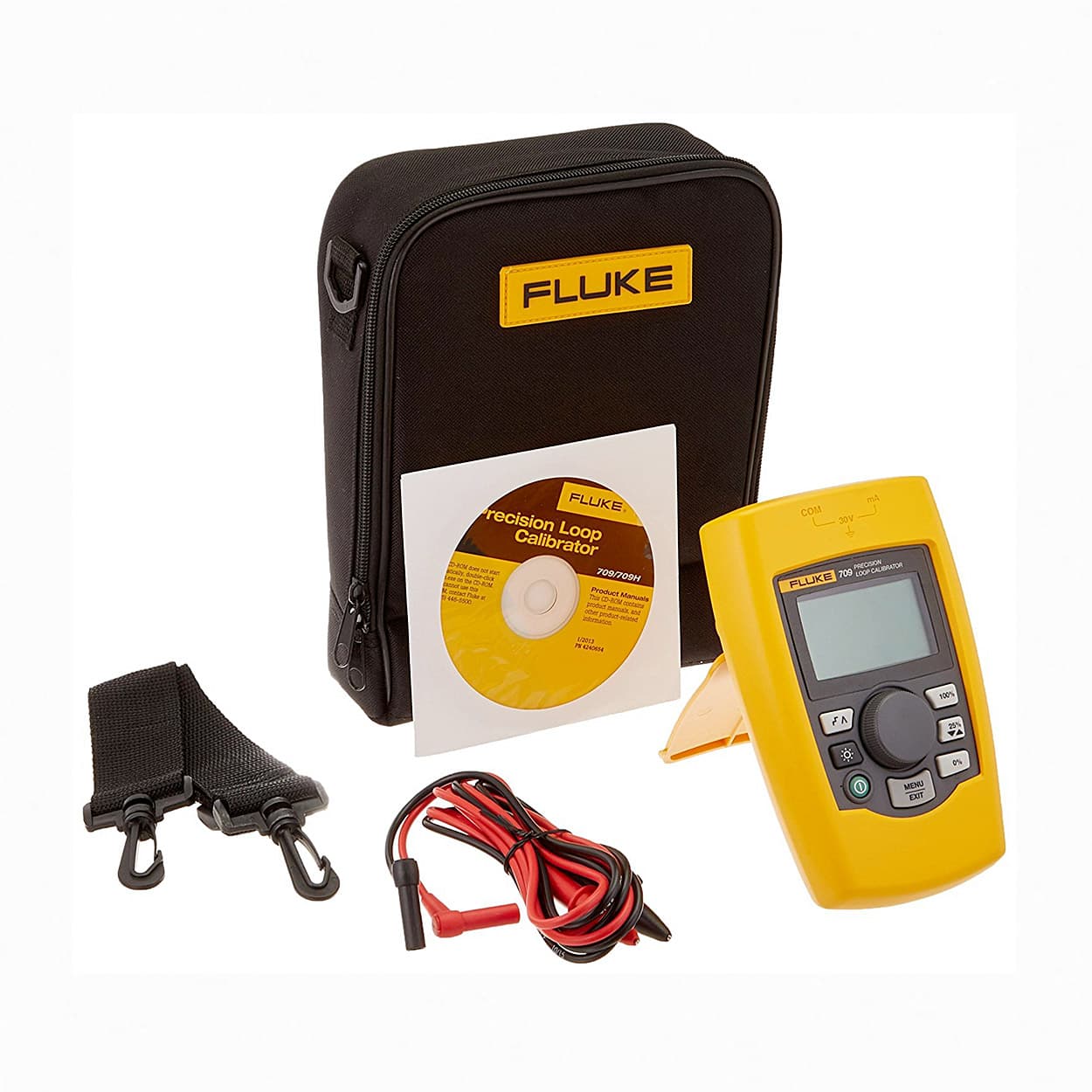

What's Included In This Package:

• Fluke 709 Precision Loop Calibrator
• (1 set) AC175 Alligator Clip
• (1 pair) TL75 Test Leads

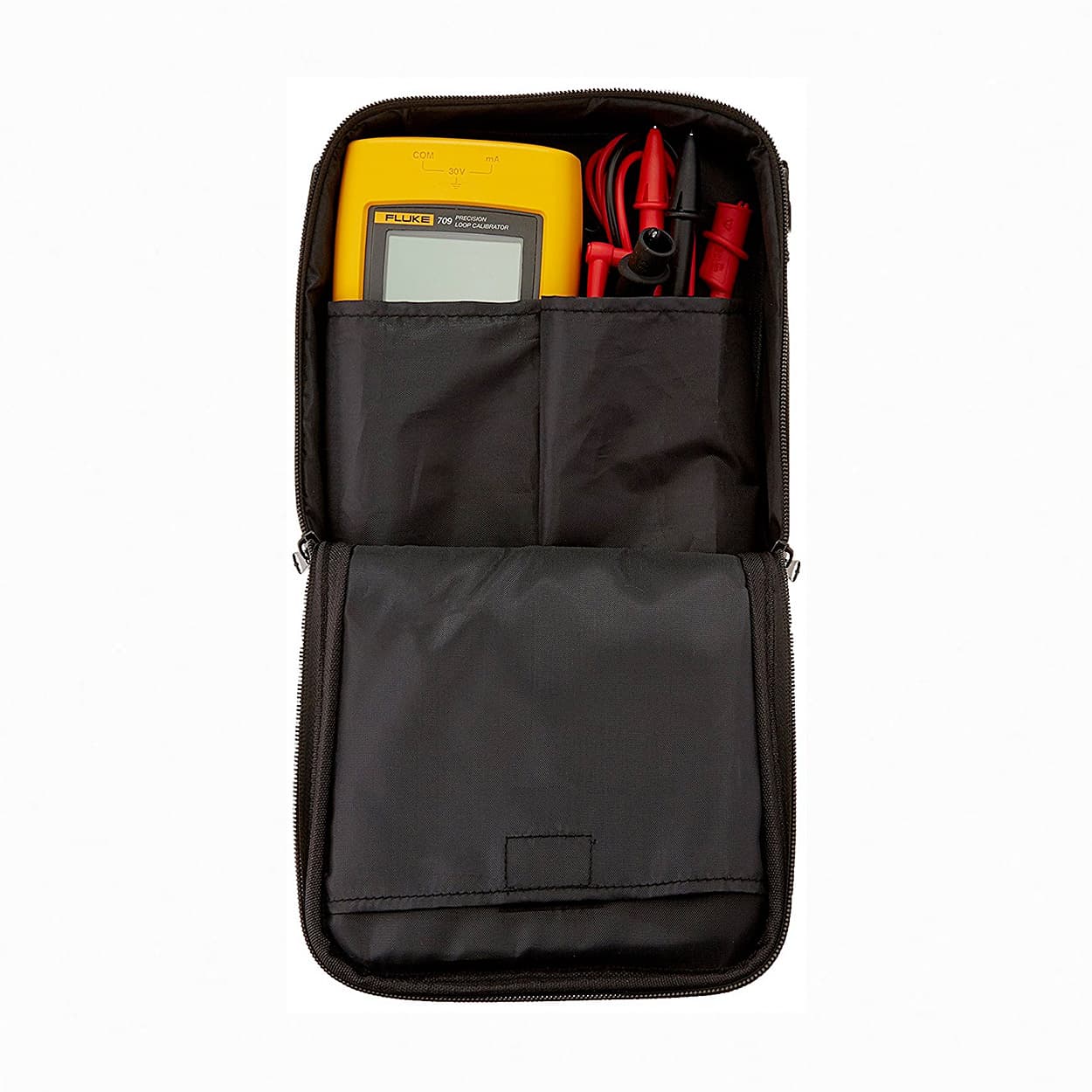

• Soft Case
• (6) AAA Batteries (installed)
• NIST- traceable calibration report and data
• Quick Reference Guide
