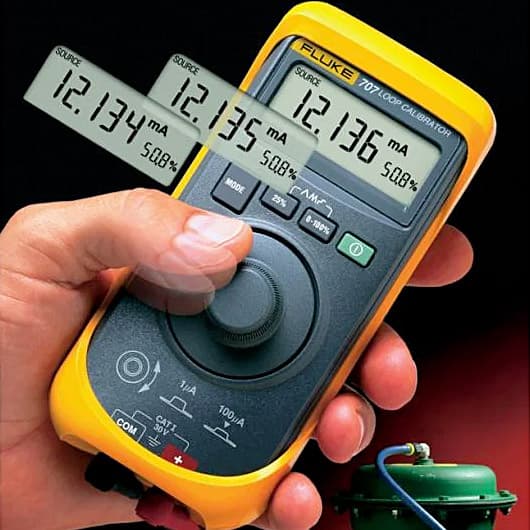

Fluke 707 28V / 24 mA Current Loop Calibrator With Quick Click Knob
Roll over the image to zoom in
Key Features
- Product Type: Process Calibrators
- Weight: 224 g
- Storage temperature: -30°C to 60°C
- Safety: CSA C22.2 No. 1010.1:1992
- Batteries: One 9 V battery Alkaline
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,11,726 (Incl. of all taxes)
₹94,683 + ₹17,043 GST (18%)
MRP was MRP ₹1,39,240
Save 32%
30 Business Days
1
90309090
Download Fluke CatalogueNot available
Highlights
The Fluke 707 loop calibrator is a high performance solution for calibration, repair, and maintenance of current loops. It combines the best features of a push-button and knob-base loop calibrator, for extremely fast and easy calibration.
The large display and simple quick click rotary button lets you make quick selections and adjustments with one hand. Plus, features such as mA sourcing, simulation, and measurement; simultaneous display of mA and % of span, and selectable step or ramp outputs, helps you work more efficiently and accurately. And you can quickly change the 9V battery without breaking the calibration seal.
Features:
- High performance loop calibrator for calibration, repair, and maintenance
- Features large display and simple, quick-click interface for easy one-handed operation.
- Provides simultaneous mA and % readout for quick, easy interpretation of readings.
- Delivers mA accuracy of 0.015%
- Provides 1 µA resolution for mA source, simulate, and measure
Other Useful Features:
- Includes HART® compatible resistance connected in series with the loop supply for compatibility with HART communicators
- Features push button 25% steps for fast, easy linearity checks
- Includes 0-100% "span check" for fast confirmation of zero and span.
- Provides selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
- Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM
- Measures V DC to 28 V
- Runs on a single 9 V battery that is easily changed without breaking the calibration seal
- Offers 0 - 20 mA or 4 - 20 mA default start up modes
- Features an innovative output adjustment dial.
- Comes with a protective yellow holster with test lead storage and a three year warranty.
What's Included In This Package:
- Fluke 707 Loop Calibrator with Quick Click Knob
- C10 protective yellow holster with Flex-Stand™
- (1 set) AC70A Alligator Clips
- (1 pair) TL75 test lead set
- NIST- traceable calibration report and data
- Quick Reference Guide
- 3-year warranty
Specifications:
| Current measurement | Range | 0 to 24 mA |
| Resolution | 0.001 mA | |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Current sourcing | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Drive capability | 1200 Ω 950 Ω at 20 mA in HART mode | |
| Current simulation | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Ext. loop voltage requirement | 12-30 V | |
| Loop power | While measuring mA, 24 V | |
| Voltage measurement | Range | 0 to 28 V DC |
| Resolution | 1 mV | |
| Accuracy | 0.015% Rdg + 2 LSD |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operating temperature | -10°C to 55°C |
|---|---|
| Storage temperature | -30°C to 60°C |
| Humidity (without condensation) | 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C) |
| Temperature coefficient | -10°C to 18°C, 28°C to 55°C, ±.005% of range per °C |
| Safety | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Maximum voltage | 30 V |
| Size | 152 x 70 x 41 mm |
| Batteries | One 9 V battery Alkaline |
| Warranty | Three years |
| Shock and vibration | Per MIL-T-28800 for a Class 2 Instrument |
| Display current and % of span | Yes |
| Auto step, auto ramp | Yes |
| Span check | Yes |
