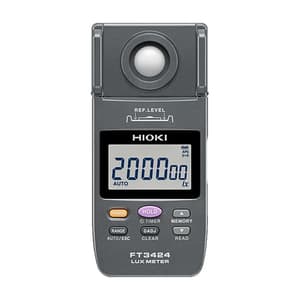

Hioki 20 - 200 000 Lux Meter, FT3424
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹56,253 (Incl. of all taxes)
₹47,672 + ₹8,581 GST (18%)
MRP was MRP ₹56,085
Save 15%
5 Business Days
1
–
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
The FT3424 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3424 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels.

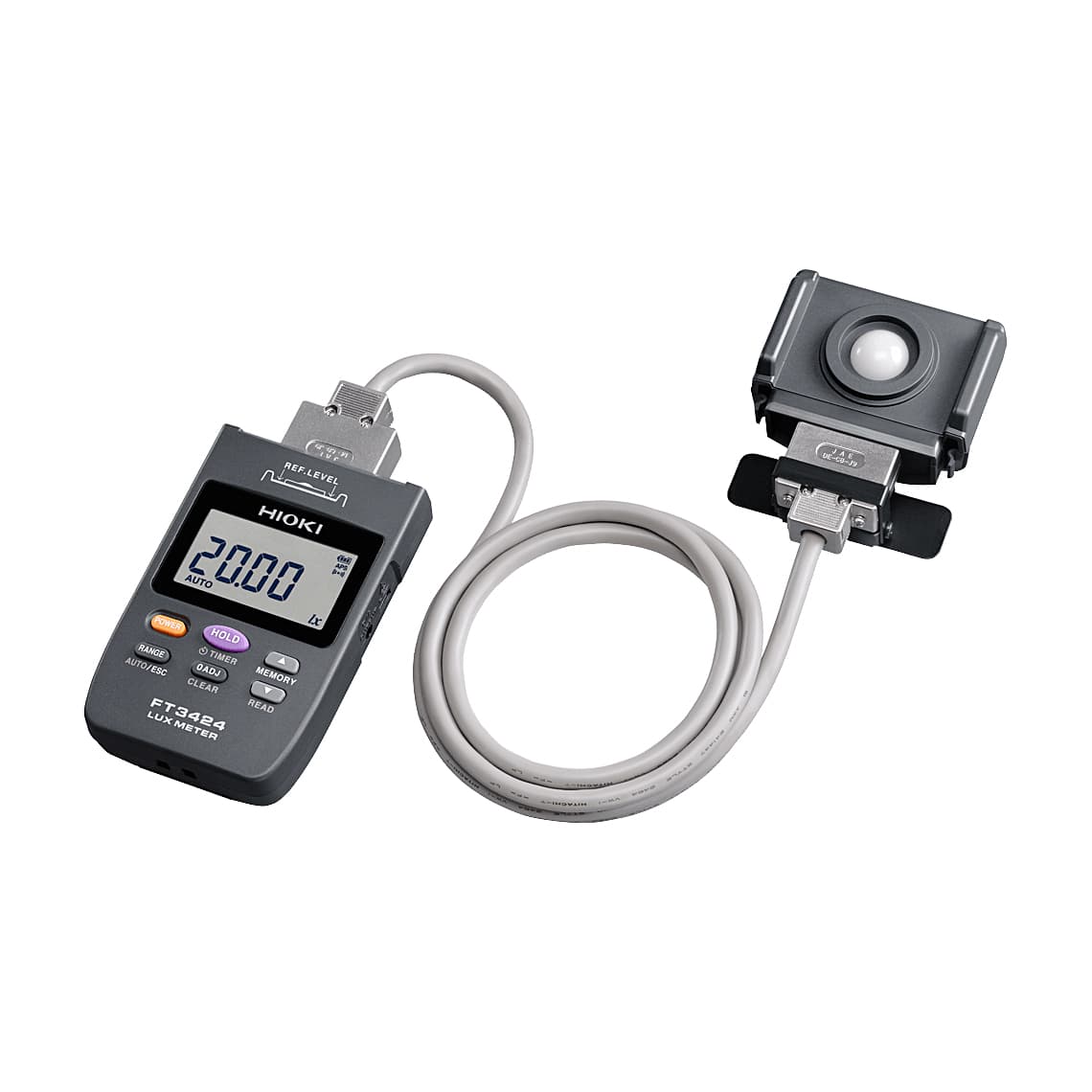

Introduces how to use Hioki's FT3424 lux Meter, from zero-adjustment and the hold function to making measurements. Since the instrument’s memory function lets it store measured values, there’s no need to take notes by hand in the field. In addition, a timer hold function and connection cable make it possible to measure illuminance after moving away from the instrument.
Key Features:
- Compatible with LED lighting
- Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class

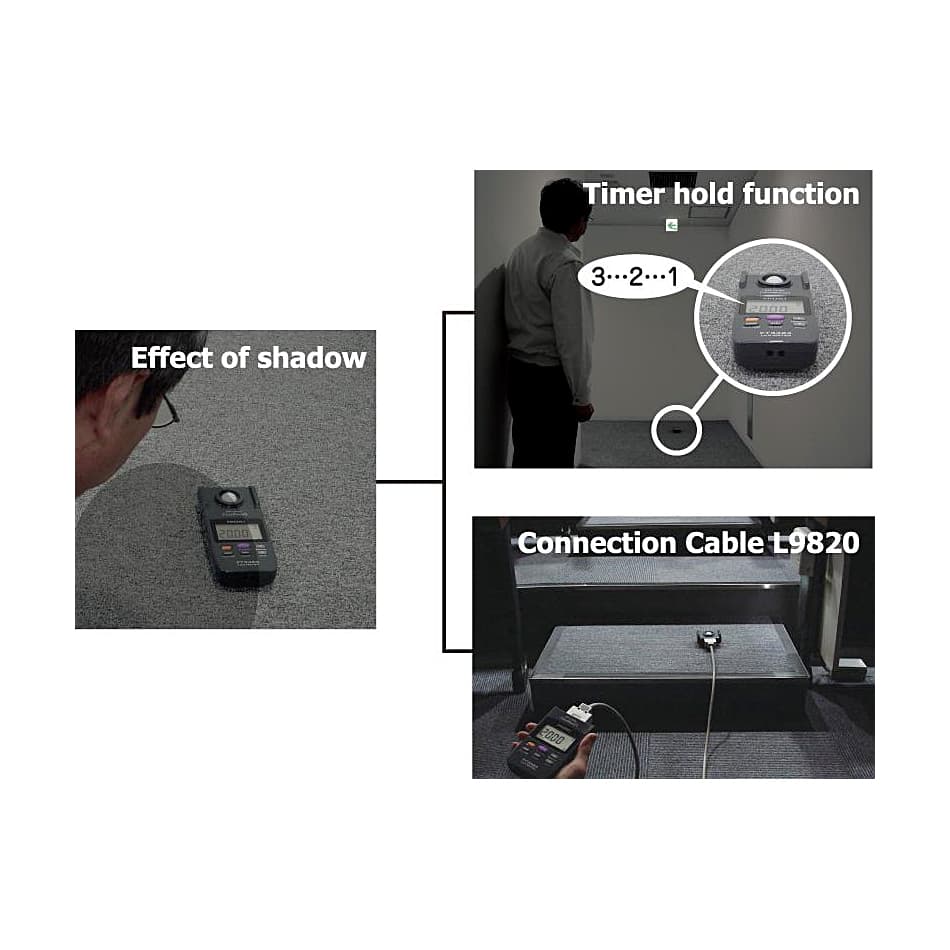

- The timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections

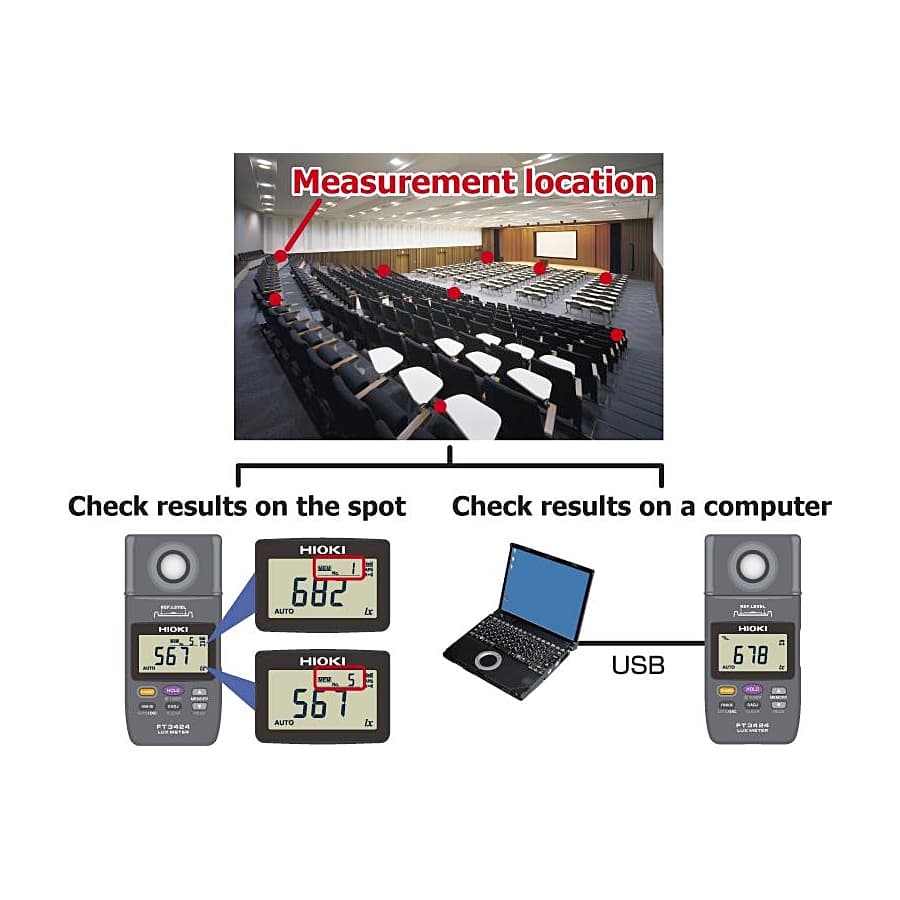

- Save up to 99 measured values in the instrument’s internal memory
- Transfer data to the PC later and improve work efficiency
How to Use the Hioki Lux Meter FT3424
Introduces how to use Hioki's FT3424 lux Meter, from zero-adjustment and the hold function to making measurements. Since the instrument’s memory function lets it store measured values, there’s no need to take notes by hand in the field. In addition, a timer hold function and connection cable make it possible to measure illuminance after moving away from the instrument.
Measurement Ranges:
| Range | Measurement range | Display steps |
|---|---|---|
| 20 lx | 0.00 lx to 20.00 lx | 1 count step |
| 200 lx | 0.0 lx to 200.0 lx | |
| 2000 lx | 0 lx to 2000 lx | |
| 20000 lx | 0(0) lx to 2000(0) lx | 10 count step |
| 200000 lx | 0(00) lx?2000(00) lx | 100 count step |
Functions:
- Timer hold function,
- Memory function (Up to 99 measured data can be saved.),
- Hold,
- Auto power off function,
- Buzzer sound,
- Backlight,
- Zero adjustment
Package Content:
- 1x Instruction Manual
- 2x LR6 Alkaline battery
- 1x Sensor cap (with strap)
- 1x Carrying case (soft)
- 1x Strap (for instrument)
- 1x USB cable (0.9 m/2.95 ft)
- 1x CD (USB driver, dedicated computer application software, and communications specifications)
|
|
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range | 20 - 200000 Lux |
|---|---|
| Standards | DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class |
| Light Receiving Element | Silicon Photo Diode |
| Range Selection | Auto / Manual |
| Linearity | ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.) |
| Accuracy Guarantee for Temperature & Humidity | 21°C to 27°C (69.8°F to 80.6°F), 75% rh or less (non-condensing) |
| Response Time | Auto range: within 5 seconds, Manual range: within 2 seconds |
| D/A Output | Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) / Output accuracy: ±1% rdg. ±5 mV (at display count) |
| Power Supply | LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC) |
| Dimensions (WxHxD) | 78 x 170 x 39 mm (3.07 x 6.69 x 1.54 inch) |
